Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:

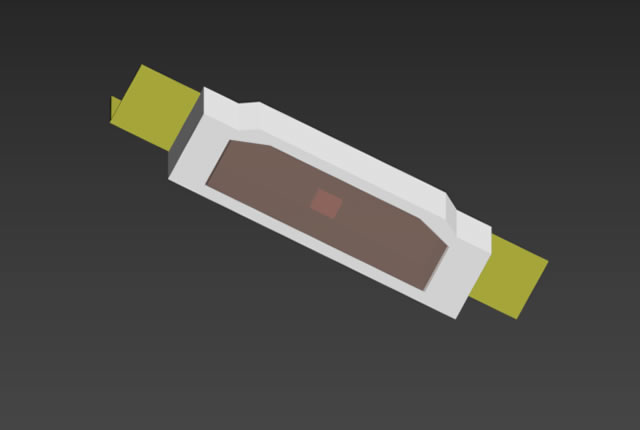

The Impact of SMD LED 4008 SIDE VIEW in Modern Electronics
In the dynamic field of electronic components, the SMD LED 4008 SIDE VIEW represents a significant advancement in lighting technology. Tailored for professionals in the electronics industry, including engineers, purchasers, and administrators, this article delves into the features, applications, and benefits of the SMD LED 4008, bolstered by user testimonials and relevant case studies. This compact, efficient, and versatile LED smd 4008 is increasingly becoming the go-to choice for various applications.
Unveiling the Features of SMD LED 4008 SIDE VIEW
The LED smd 4008, a type of surface mount LED, is renowned for its compact design and powerful performance. This model emits light at 650nm, placing it in the visible spectrum, ideal for a wide range of applications where space and efficiency are paramount.
Key Features:
- Compact Design: Perfect for tight spaces where traditional LEDs cannot fit.
- High Efficiency: Lower power consumption while maintaining high brightness.
- Versatility: Suitable for various applications due to its broad operating temperature range.
Applications in Diverse Industries
The versatility of the SMD LED 4008 SIDE VIEW makes it a preferred component across various sectors:
- Consumer Electronics: Employed in devices like mobile phones, laptops, and other portable gadgets for backlighting and indicator lights.
- Automotive Applications: Used in dashboard lighting, headlamps, and tail lights due to its reliability and longevity.
- Industrial Lighting: Ideal for machinery and equipment requiring precise and robust lighting solutions.
Advantages of Using SMD LED 4008 SIDE VIEW
Adopting SMD LED 4008 brings multiple benefits:
- Enhanced Product Lifespan: Reduces the need for frequent replacements, offering greater cost-efficiency over time.
- Energy Savings: Consumes less power, contributing to lower electricity costs and environmental sustainability.
- Improved Aesthetics: Offers cleaner and more consistent lighting in designs, enhancing product aesthetics.
Demonstrated Success: Case Studies
The effectiveness of the SMD LED 4008 is highlighted in several real-world applications:
- Consumer Electronics Manufacturer: Incorporated the SMD LED 4008 in their latest smartphone models, enhancing screen brightness and color accuracy while extending battery life.
- Automotive Industry Leader: Utilized these LEDs in vehicle interiors, improving visibility and design flexibility without increasing energy consumption.
Hearing from the Users: Testimonials
Feedback from those who have integrated SMD LED 4008 into their projects emphasizes its impact:
- Electronics Design Engineer: “Using LED smd 4008 has allowed us to push the boundaries of our product designs, achieving higher performance in much smaller spaces.”
- Procurement Specialist: “The reliability and cost-effectiveness of the SMD LED 4008 make it a staple in our sourcing strategy.”
Conclusion: A Bright Future with SMD LED 4008 SIDE VIEW
The SMD LED 4008 SIDE VIEW is more than just a component; it’s a transformative element in the design and manufacturing of electronic devices. It offers a compelling combination of performance, efficiency, and versatility, making it a prime choice for forward-thinking electronics professionals. Embrace the future of lighting technology by integrating the SMD LED 4008 into your next project.
Call to Action: Are you ready to enhance your product designs with the latest in LED technology? Contact us today to learn how the SMD LED 4008 SIDE VIEW can revolutionize your applications.
Features:
-
- Compact size: 4mm x 0.8mm x 0.6mm
- Side-emitting design
- Ultra Brightness for enhanced visibility
- Compatible with automatic placement equipment
- Wide Viewing Angle for versatile applications
- Ideal for Backlighting and Indicator purposes
- Package includes 2000 pieces on a reel
- RoHS Compliance for environmental considerations
Applications:
-
- Backlighting for compact electronic displays
- Indicator lights in tight spaces
- Illumination in small electronic devices
- Automotive lighting applications
- Wearable technology
- Low-profile lighting solutions
- Space-constrained electronic designs
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-LS4008A0S1PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
3.6 |
650 |
1350 |
120 |
|
BL-LS4008A0S1UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
3.6 |
200 |
420 |
120 |
|
BL-LS4008A0S1UEC |
Ultra Red |
AlGaAs |
630 |
Water Clear |
2.4 |
200 |
550 |
120 |
|
BL-LS4008A0S1UGC |
Ultra Green |
AlGaInP |
575 |
Water Clear |
2.4 |
60 |
120 |
120 |
|
BL-LS4008A0S1UW2C |
Warm White |
InGaN |
/ |
Water Clear |
3.6 |
200 |
400 |
120 |
|
BL-LS4008A0S1UWC |
Ultra White |
InGaN |
/ |
Water Clear |
3.6 |
300 |
500 |
120 |
|
BL-LS4008A0S1UYC |
Ultra Yellow |
AlGaInP |
593 |
Water Clear |
2.4 |
200 |
400 |
120 |
|
BL-LS4008A0S1UYO |
Ultra Amber |
AlGaInP |
610 |
Water Clear |
2.4 |
200 |
550 |
120 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
