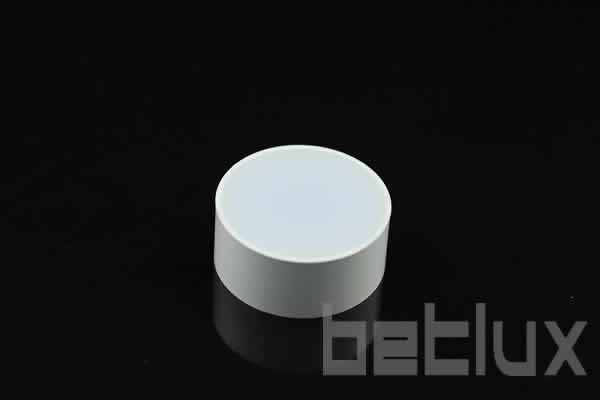

LED light bar(circle ,1 bar,18.00mm)

Series No:

BL-AC1Z18x4

Weight:(g/pcs)

2.5

Dimension:(mm)

18 x 18 x 11

Specification:

download

Inquiry

Description:

The Evolution of Lighting: The 18mm LED Light Bar Unveiled

In the ever-progressing world of electronics, the 18mm LED light bar stands as a testament to innovation and efficiency. Designed to meet the rigorous demands of electronics manufacturer engineers, purchasers, and administrators, this round led bargraph is more than just a lighting solution—it’s a pivotal component in the development of modern electronics. This comprehensive exploration into the 18mm LED light bar, including its features, applications, benefits, supplemented by case studies and user testimonials, aims to provide a professional, in-depth understanding of its impact and versatility in the electronics industry.

Brightening the Future: Key Features of the 18mm LED Light Bar

The 18mm LED light bar, also known as a circular LED bar graph, is celebrated for its compactness, efficiency, and brightness. This lighting solution offers unparalleled clarity and longevity, making it an ideal choice for a wide range of applications. Its round design allows for a unique aesthetic that is both functional and visually appealing, offering a modern twist to traditional lighting systems.

Illuminating Applications: Where the Circular LED Bar Graph Shines

From industrial machinery to consumer electronics, the 18mm LED light bar illuminates the path to innovation. Its applications include, but are not limited to:

  • Dashboard Indicators: Providing clear, visible alerts and status updates.
  • Decorative Lighting: Enhancing aesthetics with ambient lighting.
  • Signage and Displays: Offering vibrant, eye-catching messages and information.

A Beacon of Benefits: Why the Circular LED Bar Graph Stands Out

The adoption of the 18mm LED light bar in electronic designs brings forth numerous advantages:

  • Energy Efficiency: Drastically reduces power consumption.
  • Durability: Offers a long lifespan, resisting wear and tear.
  • Versatility: Fits a myriad of design specifications and applications.

Shining Success: Case Studies and Testimonials

Real-world implementations of the 18mm LED light bar showcase its transformative potential. One notable case study involves its integration into emergency vehicle lighting, where its brightness and durability have significantly improved operational efficiency and safety. User testimonials further affirm the positive impact, with one electronics engineer highlighting its seamless integration into their project, leading to reduced costs and enhanced performance.

Conclusion: The Luminary of Electronic Lighting Solutions

The 18mm LED light bar, with its robust features and versatile applications, is a shining example of how innovative lighting solutions can enhance and transform electronic designs. As we delve into the benefits and real-world success stories, it becomes evident that this circular LED bar graph is not just a component but a cornerstone of modern electronics. For engineers, purchasers, and administrators looking to illuminate their projects with efficiency, durability, and style, the 18mm LED light bar offers a bright solution.

Call to Action:

Embrace the future of lighting in your electronic projects with the 18mm LED light bar. Experience the blend of aesthetics, performance, and efficiency today.

LED light bar(circle ,1 bar,18.00mm)
LED light bar(circle ,1 bar,18.00mm)

LED light bar(circle,18.00mm)
Lightbar LED

Features

  • Display Area Shape: Circle, offering an aesthetically appealing and distinct area for illumination.
  • Display Area Number: Features a single display area.
  • Outer Diameter: 18.00mm, providing a balance between compactness and visibility.
  • Inner Diameter: 15.00mm, ensuring a clearly defined light-emitting area.
  • Uniform Light Emitting Area: Guarantees consistent and even lighting across the display.
  • Low Current Operation: Energy-efficient, which helps in reducing power consumption.
  • Wide Viewing Angle: Enables the display to be easily visible from different perspectives.
  • Easily Mounted on P.C. Boards: Simplifies integration into electronic systems.
  • Flush Mountable: Can be installed to align with the surface, offering a clean and integrated look.
  • Excellent On/Off Contrast: Enhances visibility and readability, crucial for circular displays.
  • Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for a variety of panel types.
  • Categorized for Luminous Intensity: Ensures uniform brightness across different units.
  • Different Colors in One Unit Available: Allows for color customization, enhancing the versatility of the display.
  • Standard: Black Face, White Segment: Classic and easily readable appearance.
  • RoHS Compliance: Adheres to environmental and safety standards.

Applications

  • Indicator Lights: Perfect for applications that require clear circular indicator lights in electronics, machinery, or equipment.
  • Control Panels: Ideal for use in control panels where a round indicator is necessary.
  • Signal Lights: Suitable for settings where a circular signal light is needed to indicate status or conditions.
  • Instrumentation Displays: Applicable for displaying status or readings in instruments where a round display is preferred.
  • Consumer Electronics: Can be integrated into various consumer electronics for display or indication purposes.
  • Safety and Emergency Equipment: Appropriate for safety devices that require a clear, round indicator light.
  • Decorative Lighting: Effective in aesthetic applications requiring a circular light source.
  • Wearable Technology: Suitable for incorporation into wearable devices due to its appealing size and shape.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage max. (v)
Luminous min
Luminous typ
BL-AC1Z18B4
ultra Blue
InGaN/SiC
470
4.2
8
12
BL-AC1Z18D4
Super Red
GaAlAs/DH
660
2.2
6
11
BL-AC1Z18E4
Orange
GaAsP/GaP
635
2.5
3
6
BL-AC1Z18G4
Green
GaP/GaP
570
2.5
3
6
BL-AC1Z18H4
Red
GaP/GaP
700
2.6
0.3
0.6
BL-AC1Z18PG4
Ultra Pure Green
InGaN/SiC
525
4.2
8
14
BL-AC1Z18S4
Hi Red
GaAlAs/SH
660
2.2
3
6
BL-AC1Z18UB4
ultra Blue
InGaN/SiC
470
4.2
12
22
BL-AC1Z18UE4
Ultra Orange
AlGaInP
630
2.5
6
11
BL-AC1Z18UG4
Ultra Green
AlGaInP
574
2.5
6
11
BL-AC1Z18UR4
Ultra Red
GaAlAs/DDH
660
2.2
10
20
BL-AC1Z18UW4
Ultra White
InGaN
-
4.2
35
BL-AC1Z18UY4
Ultra Yellow
AlGaInP
590
2.5
6
11
BL-AC1Z18Y4
Yellow
GaAsP/GaP
585
2.5
3
6
Package configuration & Internal circuit diagram
LED light bar(circle ,1 bar,18.00mm)


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED light bar is widely applied in instrument show box, elevator,etc

Part No of LED light bar display

Related Information

Applied for:
level displayheateraudiolift indicatorroad signal

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.
