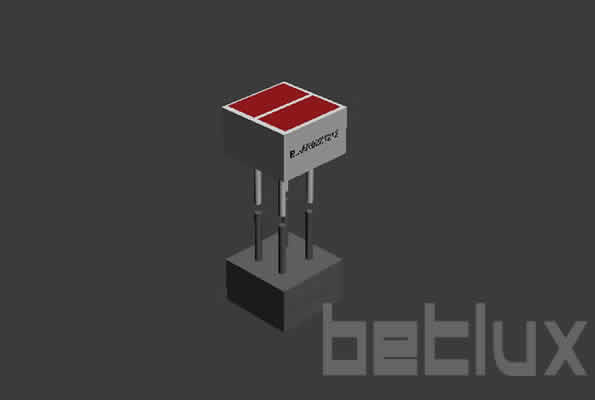

LED light bar(2 bars ,12.00*12.00mm)

Series No:

BL-AR02Z1212

Weight:(g/pcs)

1.1

Dimension:(mm)

12 x 12 x 7

Specification:

download

Inquiry

Description:

LED light bar(2 bars,12.00*12.00mm)
Lightbar LED

Unveiling the Versatility of LED Light Bars: A Deep Dive into the 12x12mm Dual Bar Graph Display

In the realm of electronic displays and lighting solutions, the LED light bar, particularly the variant with 2 bars measuring 12.00*12.00mm, has emerged as a cornerstone of innovation and utility. This article meticulously explores the multifaceted features, applications, and inherent benefits of the LED bar graph display, also known in Spanish as “bargraph de leds.” Through an examination enriched by case studies and user testimonials, we aim to provide electronics manufacturer engineers, purchasers, and administrators with a comprehensive understanding of how these LED light bars can transform projects and products, contributing to the professional and technical landscape of electronics.

Highlighting Features of the LED Bar Graph Display

The LED light bar with 2 bars of 12.00*12.00mm dimensions stands out for its compact size combined with exceptional luminosity. These units are designed for precision, offering a clear and vibrant display solution that enhances the functionality and aesthetic appeal of electronic devices. The dual-bar configuration allows for more nuanced and detailed data representation, making these bars incredibly versatile.

Illuminating Applications: Where the LED Light Bars Shine

From industrial control panels to consumer electronics, the applications of the 12x12mm LED light bars are vast:

  • Consumer Electronics: Elevating the user interface of devices with intuitive displays.
  • Industrial Monitoring Systems: Providing clear indicators for process status and alerts.
  • Automotive Displays: Enhancing dashboard illumination and control visibility.

The Bright Benefits of Integrating LED Bar Graphs

The integration of these LED light bars into electronic designs offers significant advantages, including:

  • Energy Efficiency: LEDs consume less power, leading to reduced operational costs.
  • Longevity: The durability of LEDs means fewer replacements and lower maintenance.
  • Design Flexibility: Their compact size and versatility allow for creative incorporation into various products.

Case Studies and Testimonials: Real-World Illuminations

The transformative impact of the 12x12mm LED light bars is best illustrated through real-world applications. One case study involves their integration into a new line of smart home devices, where they improved usability and energy efficiency. User testimonials further underscore their value, with one engineer praising the LED bars for their reliability and another administrator highlighting the cost savings achieved over time.

Conclusion: A Bright Future with LED Light Bars

The exploration of the 12.00*12.00mm LED light bars, with their rich features, broad applications, and substantial benefits, reveals their significant role in advancing electronic designs. For those in the electronics field, adopting these LED bar graphs signifies a step towards innovation, efficiency, and enhanced product value.

Call to Action:

Elevate your electronic projects and products with the innovative 12x12mm LED light bars. Discover the difference precision lighting can make today.

LED light bar(2 bars ,12.00*12.00mm)
LED light bar(2 bars ,12.00*12.00mm)



Features

  • Display Area Shape: Rectangular, offering clear and distinct areas for illumination.
  • Display Area Number: Features two display areas.
  • Reflector Dimensions: Each bar has a length and width of 12.00mm, providing a balanced and compact design.
  • Suitable for Level Indicators: Particularly designed for indicating levels in various applications.
  • Low Current Operation: Energy-efficient, leading to reduced power consumption.
  • Wide Viewing Angle: Ensures the display is easily visible from different perspectives.
  • Uniform Light Emitting Area: Offers consistent and even lighting across both display areas.
  • Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
  • Flush Mountable: Can be installed to align seamlessly with the surface, ensuring a neat and integrated look.
  • Excellent On/Off Contrast: Enhances visibility and readability, crucial for level indicators.
  • Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various panel types.
  • Categorized for Luminous Intensity: Ensures uniform brightness across different units.
  • Different Colors in One Unit Available: Provides options for various color displays, enhancing customization.
  • Standard: Black Face, White Segment: Offers a classic and easily readable appearance.
  • RoHS Compliance: Manufactured in accordance with environmental and safety standards.

Applications

  • Level Indicators: Ideal for applications requiring clear level indication, such as in water tanks, battery levels, or other measurement systems.
  • Control Panels: Suitable for use in control panels in machinery, vehicles, or electronic devices.
  • Signal Lights: Applicable in settings where dual signal lights are needed for indicating different statuses or levels.
  • Instrumentation Displays: Useful in displaying status or readings in small-scale instrumentation panels.
  • Consumer Electronics: Can be integrated into consumer electronic devices for displaying various indicators.
  • Safety and Emergency Equipment: Suitable for indicating different safety levels or statuses in emergency equipment.
  • Information Displays: Effective in displaying dual information in public areas or systems.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage max. (v)
Luminous min
Luminous typ
BL-AR02Z1212B
ultra Blue
InGaN/SiC
470
4.2
8
12
BL-AR02Z1212D
Super Red
GaAlAs/DH
660
2.2
6
11
BL-AR02Z1212E
Orange
GaAsP/GaP
635
2.5
3
6
BL-AR02Z1212G
Green
GaP/GaP
570
2.5
3
6
BL-AR02Z1212H
Red
GaP/GaP
700
2.6
0.3
0.6
BL-AR02Z1212PG
Ultra Pure Green
InGaN/SiC
525
4.2
8
14
BL-AR02Z1212S
Hi Red
GaAlAs/SH
660
2.2
3
6
BL-AR02Z1212UB
ultra Blue
InGaN/SiC
470
4.2
12
22
BL-AR02Z1212UE
Ultra Orange
AlGaInP
630
2.5
6
11
BL-AR02Z1212UG
Ultra Green
AlGaInP
574
2.5
6
11
BL-AR02Z1212UR
Ultra Red
GaAlAs/DDH
660
2.2
10
20
BL-AR02Z1212UW
Ultra White
InGaN
-
4.2
35
BL-AR02Z1212UY
Ultra Yellow
AlGaInP
590
2.5
6
11
BL-AR02Z1212Y
Yellow
GaAsP/GaP
585
2.5
3
6
Package configuration & Internal circuit diagram
LED light bar(2 bars ,12.00*12.00mm)


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED light bar is widely applied in instrument show box, elevator,etc

Part No of LED light bar display

Related Information

Applied for:
level displayheateraudiolift indicatorroad signal

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
