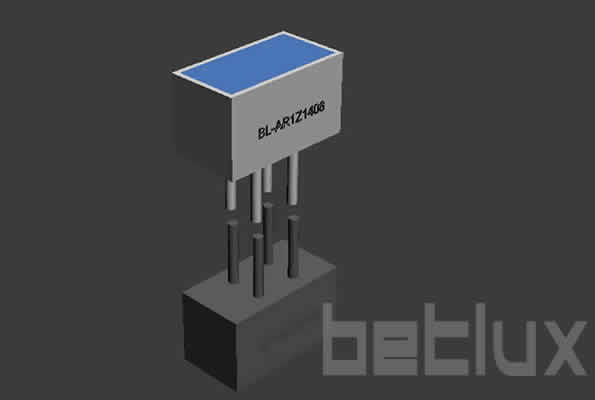

LED light bar(rectangular ,1 bar,14.0*7.5mm)

Series No:

BL-AR1Z1408

Weight:(g/pcs)

1

Dimension:(mm)

14 x 7.5 x 8

Specification:

download

Inquiry

Description:

LED light bar(rectangular,14.0*7.5mm)
Lightbar LED

Innovative Illumination: The Comprehensive Guide to LED Light Bars

Unlock the potential of LED light bars in various applications, from industrial to consumer electronics, and discover why they are a preferred choice for efficient and effective lighting solutions.

In the realm of lighting, LED technology has revolutionized how we illuminate spaces. Among the innovations, the LED light bar, particularly the rectangular 1 bar measuring 14.0*7.5mm, stands out for its versatility and efficiency. Designed to cater to a wide range of applications, from industrial settings to personal gadgets, these light bars are a testament to the advancements in lighting technology.

Understanding LED Light Bars

At the heart of the LED light bar’s appeal is its compact design and superior performance. Unlike traditional lighting options, these LED bars offer high luminosity in a durable and energy-efficient package. They are tailored for applications requiring high-intensity lighting in a sleek form factor, making them ideal for electronics manufacturers, engineers, purchasers, and administrators.

Features of LED Light Bars

The rectangular LED light bar, measuring 14.0*7.5mm, is engineered for precision and performance. Its compact size does not compromise its brightness, making it an excellent choice for both industrial machinery and consumer electronics. Additionally, its energy efficiency and longevity reduce operational costs and environmental impact, making it a sustainable lighting solution.

Applications of LED Light Bars

From the dashboard displays in vehicles to the backlighting of electronic displays, the applications of LED light bars are vast. Their rugged design also makes them suitable for use in harsh industrial environments, where reliability and durability are paramount. Moreover, their aesthetic appeal has seen them integrated into architectural designs and home decor, highlighting their versatility.

The Evolution of LED Light Bars

Tracing the evolution of LED light bars reveals a journey of technological innovation. Initially developed for specific niche applications, ongoing research and development have expanded their use across various sectors. This evolution is a testament to the adaptability and potential of LED technology.

Benefits of Using LED Light Bars

The adoption of LED light bars brings several benefits. They are not only cost-effective in the long run but also contribute to environmental conservation by consuming less power and reducing waste. Additionally, their long service life and low maintenance requirements offer unparalleled convenience.

Case Studies: LED Light Bar Implementation

Examining case studies from industrial, automotive, and consumer electronics sectors demonstrates the transformative impact of LED light bars. These success stories underline the practical benefits and innovative applications of LED light bars in enhancing performance and efficiency.

User Testimonials

Feedback from engineers, purchasers, and administrators who have implemented LED light bars highlight their satisfaction with the product’s performance. Their testimonials underscore the practical advantages and operational improvements gained from integrating LED light bars into their projects.

Choosing the Right LED Light Bar

Selecting the appropriate LED light bar requires consideration of its application, dimensions, and desired luminosity. This section provides guidance on making an informed choice, ensuring the selected light bar meets specific needs and expectations.

Installation and Maintenance Tips

For those looking to install LED light bars, this guide offers practical advice and tips to ensure a smooth installation process. Additionally, maintaining these light bars for optimal performance is simpler than one might expect, thanks to their durable design.

Future of LED Light Bars

Looking ahead, the potential for LED light bars is boundless. With continuous advancements in LED technology, future iterations are expected to offer even greater efficiency, versatility, and applications, illuminating the path towards innovative lighting solutions.

Conclusion

LED light bars, particularly the rectangular variant measuring 14.0*7.5mm, epitomize the advancements in lighting technology. Their wide range of applications, coupled with their efficiency and durability, make them an essential component in various sectors. As technology progresses, LED light bars will continue to shine brightly, leading the way in innovative and sustainable lighting solutions.

Call to Action:

Explore our range of LED light bars to illuminate your projects with efficiency and style. Contact us today to find the perfect lighting solution for your needs.

LED light bar(rectangular ,1 bar,14.0*7.5mm)
LED light bar(rectangular ,1 bar,14.0*7.5mm)

Features

  • Display Area Shape: Rectangular, offering a clear and distinct area for illumination.
  • Display Area Number: Features one display area.
  • Reflector Dimensions: Length of 14.0mm and width of 7.5mm, making it compact and versatile.
  • Uniform Light Emitting Area: Ensures consistent and even lighting across the display.
  • Low Current Operation: Energy-efficient, leading to reduced power consumption.
  • Wide Viewing Angle: Makes the display easily visible from various viewing angles.
  • Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
  • Flush Mountable: Can be installed to align seamlessly with the surface, providing a clean and integrated look.
  • Excellent On/Off Contrast: Enhances visibility and readability, crucial for indicator lights.
  • Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various types of panels.
  • Categorized for Luminous Intensity: Ensures uniform brightness across different units.
  • Different Colors in One Unit Available: Offers options for various color displays, enhancing customization.
  • Standard: Black Face, White Segment: Classic appearance for easy identification and readability.
  • RoHS Compliance: Manufactured in compliance with environmental and safety standards.

Applications

  • Indicator Lights: Ideal for applications requiring compact indicator lights in electronics, machinery, or other equipment.
  • Control Panels: Suitable for use in control panels in various devices where space is at a premium.
  • Signal Lights: Applicable in settings where small, clear signal lights are needed.
  • Instrumentation Displays: Useful for displaying status or readings in small-scale instrumentation panels.
  • Consumer Electronics: Can be integrated into various consumer electronic devices for display or indication purposes.
  • Safety and Emergency Equipment: Suitable for use in compact safety devices requiring clear indicator lights.
  • Information Displays: Effective in small-scale information displays in public areas or systems.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage max. (v)
Luminous min
Luminous typ
BL-AR1Z1408B
ultra Blue
InGaN/SiC
470
4.2
7
10
BL-AR1Z1408D
Super Red
GaAlAs/DH
660
2.2
5
10
BL-AR1Z1408E
Orange
GaAsP/GaP
635
2.5
2.2
5
BL-AR1Z1408G
Green
GaP/GaP
570
2.5
2.2
5
BL-AR1Z1408H
Red
GaP/GaP
700
2.6
0.2
0.5
BL-AR1Z1408PG
Ultra Pure Green
InGaN/SiC
525
4.2
7
12
BL-AR1Z1408S
Hi Red
GaAlAs/SH
660
2.2
2
5
BL-AR1Z1408UB
ultra Blue
InGaN/SiC
470
4.2
12
20
BL-AR1Z1408UE
Ultra Orange
AlGaInP
630
2.5
5
8
BL-AR1Z1408UG
Ultra Green
AlGaInP
574
2.5
5
8
BL-AR1Z1408UR
Ultra Red
GaAlAs/DDH
660
2.2
8
20
BL-AR1Z1408UY
Ultra Yellow
AlGaInP
590
2.5
5
8
BL-AR1Z1408Y
Yellow
GaAsP/GaP
585
2.5
2.2
5
Package configuration & Internal circuit diagram
LED light bar(rectangular ,1 bar,14.0*7.5mm)


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED light bar is widely applied in instrument show box, elevator,etc

Part No of LED light bar display

Related Information

Applied for:
level displayheateraudiolift indicatorroad signal

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
