Description:

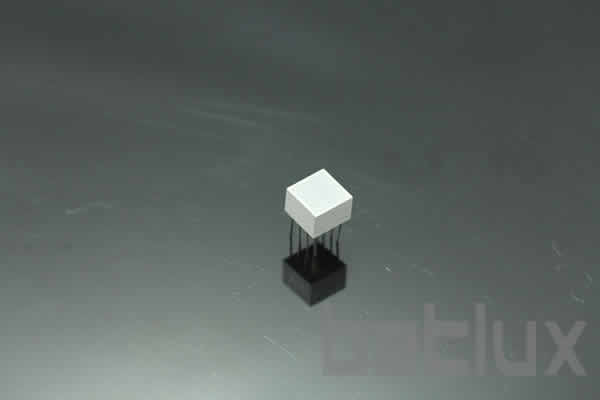

LED light bar(square,10.00*10.00mm)
Lightbar LED
Shining a Light on Innovation: The 10.00*10.00mm Square LED Light Bar
In the rapidly evolving world of lighting technology, the square LED light bar, particularly the 1 bar configuration measuring 10.00*10.00mm, emerges as a beacon of innovation and versatility. Known for its compact design and powerful illumination, the “led light bar” and its synonymous phrases such as “led bar graph” and “led bar display,” have become integral in various applications, pushing the boundaries of what’s possible in lighting solutions. This article delves into the features, applications, benefits, and real-world success stories of this compact yet powerful technology.
Compact Power: Features of the Square LED Light Bar
The 10.00*10.00mm LED light bar stands out for its unique square design, offering an optimal balance between size and light output. This compact powerhouse is capable of delivering bright, uniform light, making it suitable for a wide range of applications where space is at a premium but high-quality illumination is required. Its robust construction ensures durability and long-term reliability, even in challenging environments.
Illuminating Versatility: Applications of the Square LED Light Bar
From consumer electronics to industrial control panels, the applications for the square 10.00*10.00mm LED light bar are vast. Its precision lighting is ideal for status indicators, backlighting, and decorative purposes, offering designers and engineers a flexible tool for enhancing visual appeal and functionality. In automotive and aerospace industries, it serves as a crucial component for dashboard illumination and signaling devices, proving its worth in high-stakes settings.
Beyond Brightness: Benefits of the LED Light Bar
Choosing the square LED light bar brings several advantages. Its energy efficiency leads to reduced power consumption and operational costs, making it an eco-friendly choice for businesses and consumers alike. The long lifespan minimizes the need for frequent replacements, while its low heat emission ensures safety and comfort in use. Additionally, the LED light bar’s instant on/off capability and excellent color rendering make it superior to traditional lighting solutions.
Success in the Spotlight: Case Studies and Testimonials
The impact of the 10.00*10.00mm LED light bar is best illustrated through case studies and user testimonials. One electronics manufacturer reported a significant enhancement in their device’s user interface after integrating these LED bars, citing improved visibility and aesthetic appeal. Similarly, an automotive company highlighted the role of these LED bars in upgrading their vehicle dashboards, enhancing both functionality and driver experience. User testimonials further underscore the product’s reliability and performance, reinforcing its value across various applications.
Navigating the Choices: Selecting Your LED Light Bar
With the myriad of lighting options available, choosing the right LED light bar for your project involves considering factors such as brightness, color temperature, and intended use. The 10.00*10.00mm square model offers a unique combination of compactness and luminosity, ideal for projects requiring space-efficient lighting solutions without compromising on quality.
Conclusion: The Future Is Bright for LED Light Bars
As we continue to witness advancements in LED technology, the square LED light bar, with its compact dimensions and versatile applications, stands at the forefront of lighting innovation. Its adoption across diverse sectors underscores its significance in shaping the future of illumination, combining aesthetic appeal with functionality and efficiency.
Call to Action:
Transform your projects with the cutting-edge 10.00*10.00mm square LED light bar. Contact us now to illuminate your ideas with precision and efficiency.
Features
- Display Area Shape: Square, providing a distinct and clear illumination area.
- Display Area Number: Features one display area.
- Reflector Dimensions: Both the length and width are 10.00mm, making it compact and easy to integrate.
- Uniform Light Emitting Area: Ensures consistent and even lighting across the entire display.
- Low Current Operation: Energy-efficient, reducing electrical power consumption.
- Wide Viewing Angle: Allows the display to be easily visible from various viewing angles.
- Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
- Flush Mountable: Can be installed to align seamlessly with the mounting surface, providing a neat appearance.
- Excellent On/Off Contrast: Offers clear visibility, enhancing the distinction between the illuminated and non-illuminated states.
- Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various panel types.
- Categorized for Luminous Intensity: Ensures uniform brightness across different units.
- Different Colors in One Unit Available: Provides options for various color displays, enhancing customization.
- Standard: Black Face, White Segment: Offers a classic and easily readable appearance.
- RoHS Compliance: Manufactured in accordance with environmental and health safety standards.
Applications
- Indicator Lights: Ideal for use in compact spaces requiring clear indicator lights, such as in electronics or machinery.
- Control Panels: Suitable for small control panels in vehicles, industrial machinery, or consumer appliances.
- Compact Signal Lights: Applicable in settings where space-saving signal lights are needed.
- Instrumentation Displays: Useful for small-scale instrumentation where clear display is necessary.
- Consumer Electronics: Can be integrated into various consumer electronic devices for display or indication purposes.
- Safety and Emergency Equipment: Appropriate for compact safety devices requiring clear indicator lights.
- Information Displays: Effective in small-scale information displays in public areas or systems.
Electrical-optical characteristics:
Article No
| Emitting Color | Material | Peak Wavelength (nm)
| Voltage typ. (v) | Voltage max. (v) | Luminous min | Luminous typ |
|---|---|---|---|---|---|---|---|
BL-AS1Z10B |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
8 |
12 |
|
BL-AS1Z10D |
Super Red |
GaAlAs/DH |
660 |
2.2 |
6 |
11 |
|
BL-AS1Z10E |
Orange |
GaAsP/GaP |
635 |
2.5 |
3 |
6 |
|
BL-AS1Z10G |
Green |
GaP/GaP |
570 |
2.5 |
3 |
6 |
|
BL-AS1Z10H |
Red |
GaP/GaP |
700 |
2.6 |
0.3 |
0.6 |
|
BL-AS1Z10PG |
Ultra Pure Green |
InGaN/SiC |
525 |
4.2 |
8 |
14 |
|
BL-AS1Z10S |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
3 |
6 |
|
BL-AS1Z10UB |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
12 |
22 |
|
BL-AS1Z10UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
6 |
11 |
|
BL-AS1Z10UG |
Ultra Green |
AlGaInP |
574 |
2.5 |
6 |
11 |
|
BL-AS1Z10UR |
Ultra Red |
GaAlAs/DDH |
660 |
2.2 |
10 |
20 |
|
BL-AS1Z10UW |
Ultra White |
InGaN |
- |
4.2 |
35 |
||
BL-AS1Z10UY |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
6 |
11 |
|
BL-AS1Z10Y |
Yellow |
GaAsP/GaP |
585 |
2.5 |
3 |
6 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED light bar is widely applied in instrument show box, elevator,etc
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
