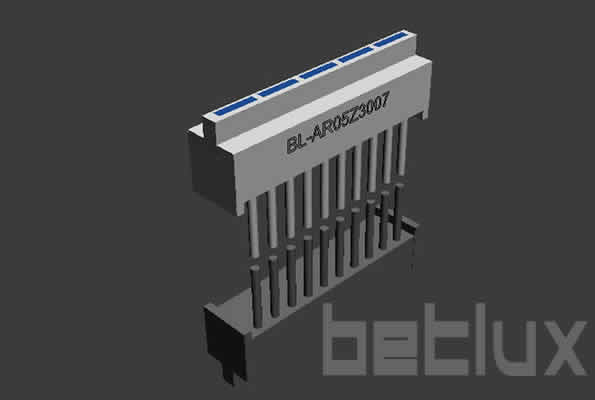

LED light bar(5 bars,37.40*7.00mm)
Lightbar LED
Elevating Electronics: The Revolutionary 5 Segment LED Bar Graph
In the fast-paced world of electronic innovation, the LED light bar with 5 bars measuring 37.40*7.00mm has emerged as a game-changer, offering unmatched versatility and performance. This detailed exploration into the 5 segment LED bar graph and its wider implications, including features, applications, benefits, supplemented by case studies and user testimonials, aims to provide a comprehensive overview for electronics manufacturer engineers, purchasers, and administrators. Delving into the professional insights surrounding this cutting-edge technology, we reveal how the LED bar graph array is shaping the future of electronics design and functionality.
Illuminating Features of the 5 Segment LED Bar Graph
The 5 segment LED bar graph, also known as a multicolor LED bar graph array, distinguishes itself with several key features. These include high brightness levels, energy efficiency, and the ability to display a wide range of colors. Its design facilitates clear and intuitive data representation, making it an essential component in various electronic applications.
Brightening the Spectrum: Diverse Applications
The LED light bar finds its place in numerous settings, each benefiting from its unique capabilities:
- Control Panels: For clear and immediate feedback in industrial and consumer electronics.
- Audio Equipment: Visualizing volume levels and system statuses.
- Healthcare Devices: Monitoring patient vitals through visual indicators.
The Brilliance of Integration: Benefits Unveiled
Integrating these LED light bars into electronic projects brings forth numerous advantages:
- Versatility: Their ability to represent different data types and statuses with various colors.
- Durability: LEDs are known for their long lifespan, reducing the need for frequent replacements.
- Energy Efficiency: Consuming less power than traditional display methods, leading to cost savings.
Shining Examples: Case Studies and Testimonials
The transformative power of the 5 segment LED bar graph is best highlighted through real-world applications. For instance, a cutting-edge audio interface incorporated the LED bars to provide users with visual feedback, enhancing usability and customer satisfaction. User testimonials from engineers and administrators further affirm the LED bars’ positive impact, emphasizing their contribution to product innovation and operational efficiency.
Conclusion: Lighting the Way in Electronics
The exploration of the 5 segment LED bar graph, with its comprehensive features, applications, and benefits, showcases its pivotal role in advancing electronic design and functionality. For those within the electronics sector, leveraging this technology signifies a move towards more efficient, versatile, and innovative solutions.
Call to Action:
Step into the future of electronics with the 5 segment LED bar graph. Transform your projects with advanced lighting technology and watch your designs come to life.
Features
- Display Area Shape: Rectangular, providing distinct areas for illumination.
- Display Area Number: Features five display areas.
- Reflector Dimensions: Length of 37.40mm and width of 7.00mm, offering a broader display area for multiple indicators.
- Suitable for Level Indicators: Ideal for applications that require multiple level indications.
- Low Current Operation: Energy-efficient, reducing power consumption.
- Wide Viewing Angle: Ensures the display is easily visible from various angles.
- Uniform Light Emitting Area: Offers consistent and even lighting across all display areas.
- Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
- Flush Mountable: Can be installed to align seamlessly with the surface, ensuring a neat and integrated appearance.
- Excellent On/Off Contrast: Enhances visibility and readability, particularly important for multiple indicators.
- Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various panel types.
- Categorized for Luminous Intensity: Ensures uniform brightness across different units.
- Different Colors in One Unit Available: Allows for customization in color choices.
- Standard: Black Face, White Segment: Offers a classic and easily readable appearance.
- RoHS Compliance: Manufactured in accordance with environmental and safety standards.
Applications
- Level Indicators: Particularly useful in applications requiring multiple level indications, such as fluid tanks, battery charge levels, or other measurement systems.
- Control Panels: Ideal for use in control panels in machinery, vehicles, or electronic devices where multiple indicators are necessary.
- Signal Lights: Applicable in settings where a series of signal lights are required to indicate different statuses or conditions.
- Instrumentation Displays: Effective in displaying multiple statuses or measurements in larger instrumentation panels.
- Consumer Electronics: Can be integrated into consumer electronics for displaying a range of indicators or levels.
- Safety and Emergency Equipment: Suitable for indicating different safety levels or conditions in emergency equipment.
- Information Displays: Effective for conveying multiple pieces of information in a compact format, especially in public areas or systems.
Electrical-optical characteristics:
Article No
| Emitting Color | Material | Peak Wavelength (nm)
| Voltage typ. (v) | Voltage max. (v) | Luminous min | Luminous typ |
|---|---|---|---|---|---|---|---|
BL-AR05Z3007B |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
8 |
12 |
|
BL-AR05Z3007D |
Super Red |
GaAlAs/DH |
660 |
2.2 |
6 |
11 |
|
BL-AR05Z3007E |
Orange |
GaAsP/GaP |
635 |
2.5 |
3 |
6 |
|
BL-AR05Z3007G |
Green |
GaP/GaP |
570 |
2.5 |
3 |
6 |
|
BL-AR05Z3007H |
Red |
GaP/GaP |
700 |
2.6 |
0.3 |
0.6 |
|
BL-AR05Z3007PG |
Ultra Pure Green |
InGaN/SiC |
525 |
4.2 |
8 |
14 |
|
BL-AR05Z3007S |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
3 |
6 |
|
BL-AR05Z3007UB |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
12 |
22 |
|
BL-AR05Z3007UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
6 |
11 |
|
BL-AR05Z3007UG |
Ultra Green |
AlGaInP |
574 |
2.5 |
6 |
11 |
|
BL-AR05Z3007UR |
Ultra Red |
GaAlAs/DDH |
660 |
2.2 |
10 |
20 |
|
BL-AR05Z3007UY |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
6 |
11 |
|
BL-AR05Z3007Y |
Yellow |
GaAsP/GaP |
585 |
2.5 |
3 |
6 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED light bar is widely applied in instrument show box, elevator,etc
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
