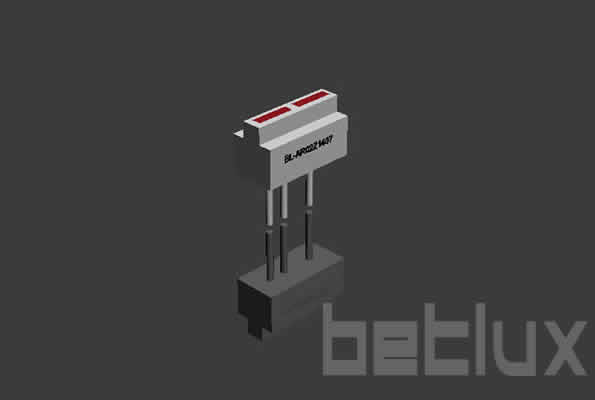

LED light bar(2 bars ,14.90*7.00mm)

Series No:

BL-AR02Z1407

Weight:(g/pcs)

0.8

Dimension:(mm)

14.9 x 7 x 8.5

Specification:

download

Inquiry

Description:

LED light bar(2 bars,14.90*7.00mm)
Lightbar LED

Illuminating the Path: The Revolutionary 14.90*7.00mm LED Light Bar

In today’s fast-paced world of electronics, the graph led, synonymous with the bar led display, emerges as a pivotal component in the realm of innovative lighting solutions. The LED light bar, especially the one featuring two bars each measuring 14.90*7.00mm, has become a staple in advanced electronic designs and applications. The compact yet powerful nature of this lighting module underscores its significance in enhancing functionality and aesthetics across various electronic platforms.

Features That Light Up Innovation

The 14.90*7.00mm LED light bar boasts unique features that set it apart:

  • Compact Design: Maximizes space efficiency in electronic devices.
  • High Brightness: Ensures clear visibility even in low light conditions.
  • Energy Efficiency: Reduces power consumption, supporting eco-friendly designs.
  • Customizability: Offers flexibility in usage across diverse electronic applications.

Applications: Where Bright Ideas Shine

This LED light bar finds its place in a multitude of applications, demonstrating its versatility:

  • Consumer Electronics: Enhances display clarity in gadgets such as smartphones and tablets.
  • Automotive Lighting: Improves dashboard and ambient lighting in vehicles.
  • Industrial Equipment: Offers reliable lighting solutions for machinery and safety equipment.

The Luminous Benefits

Integrating the 14.90*7.00mm LED light bars into electronic designs brings forth significant advantages:

  • Durability: Offers longevity, reducing the need for frequent replacements.
  • Improved Aesthetics: Enhances the visual appeal of electronic devices.
  • Versatile Functionality: Supports a wide range of applications due to its adaptable design.

Shedding Light on Success: Case Studies and Testimonials

The efficacy and impact of these LED light bars are best illustrated through real-world applications. For instance, a notable electronics manufacturer reported a marked improvement in the user interface of their handheld devices upon integrating these LEDs, citing enhanced usability and customer satisfaction. User testimonials further affirm the practical benefits, with many praising the LED light bars for their reliability and performance efficiency.

Conclusion: Envisioning a Brighter Future with LED Light Bars

The 14.90*7.00mm LED light bars represent a leap forward in the field of electronic lighting. By offering a blend of compact design, high efficiency, and versatile application, they pave the way for innovative solutions in the electronics industry. As we continue to explore and integrate these advanced lighting solutions, the future of electronics shines brighter, driven by the promise of enhanced performance, aesthetics, and sustainability.

Call to Action:

Embrace the future of electronic design with the 14.90*7.00mm LED light bars. Discover how this innovative lighting solution can transform your projects and products today.

LED light bar(2 bars ,14.90*7.00mm)
LED light bar(2 bars ,14.90*7.00mm)

Features

  • Display Area Shape: Rectangular, offering distinct areas for illumination.
  • Display Area Number: Features two display areas.
  • Reflector Dimensions: Each bar has a length of 14.90mm and a width of 7.00mm, providing a compact yet visible display.
  • Suitable for Level Indicators: Designed specifically for indicating levels in various applications.
  • Low Current Operation: Energy-efficient, leading to reduced power consumption.
  • Wide Viewing Angle: Ensures the display is easily visible from various angles.
  • Uniform Light Emitting Area: Offers consistent and even lighting across both display areas.
  • Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
  • Flush Mountable: Can be installed to align seamlessly with the surface, offering a neat appearance.
  • Excellent On/Off Contrast: Enhances visibility and readability, important for indicators.
  • Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various panel types.
  • Categorized for Luminous Intensity: Ensures uniform brightness across different units.
  • Different Colors in One Unit Available: Allows for customization in color choices.
  • Standard: Black Face, White Segment: Classic appearance for easy identification and readability.
  • RoHS Compliance: Manufactured in compliance with environmental and safety standards.

Applications

  • Level Indicators: Ideal for applications requiring clear level indication, such as in fluid tanks, battery monitors, or other measurement systems.
  • Control Panels: Suitable for use in control panels in various devices, particularly where dual indicators are needed.
  • Signal Lights: Applicable in settings where dual signal lights are required for indicating different statuses or conditions.
  • Instrumentation Displays: Useful in displaying dual statuses or measurements in instrumentation panels.
  • Consumer Electronics: Can be integrated into consumer electronics for displaying various indicators or levels.
  • Safety and Emergency Equipment: Suitable for indicating different safety levels or conditions in emergency equipment.
  • Information Displays: Effective in conveying dual information in a compact format in public areas or systems.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage max. (v)
Luminous min
Luminous typ
BL-AR02Z1407B
ultra Blue
InGaN/SiC
470
4.2
7
10
BL-AR02Z1407D
Super Red
GaAlAs/DH
660
2.2
5
10
BL-AR02Z1407E
Orange
GaAsP/GaP
635
2.5
2.2
5
BL-AR02Z1407G
Green
GaP/GaP
570
2.5
2.2
5
BL-AR02Z1407H
Red
GaP/GaP
700
2.6
0.2
0.5
BL-AR02Z1407PG
Ultra Pure Green
InGaN/SiC
525
4.2
7
12
BL-AR02Z1407S
Hi Red
GaAlAs/SH
660
2.2
2
5
BL-AR02Z1407UB
ultra Blue
InGaN/SiC
470
4.2
12
20
BL-AR02Z1407UE
Ultra Orange
AlGaInP
630
2.5
5
8
BL-AR02Z1407UG
Ultra Green
AlGaInP
574
2.5
5
8
BL-AR02Z1407UR
Ultra Red
GaAlAs/DDH
660
2.2
8
20
BL-AR02Z1407UW
Ultra White
InGaN
-
4.2
30
BL-AR02Z1407UY
Ultra Yellow
AlGaInP
590
2.5
5
8
BL-AR02Z1407Y
Yellow
GaAsP/GaP
585
2.5
2.2
5
Package configuration & Internal circuit diagram
LED light bar(2 bars ,14.90*7.00mm)


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED light bar is widely applied in instrument show box, elevator,etc

Part No of LED light bar display

Related Information

Applied for:
level displayheateraudiolift indicatorroad signal

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
