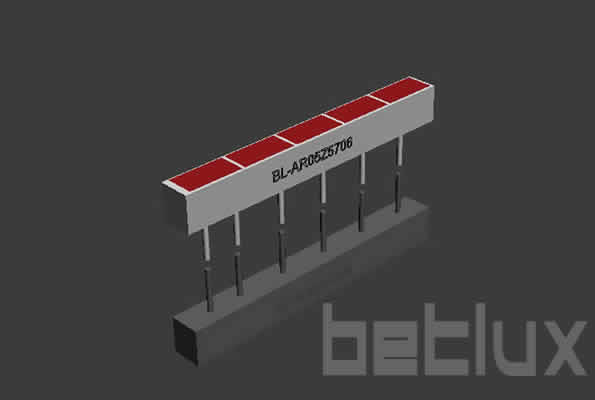

LED light bar(5 bars ,57.20*6.00mm)

Series No:





57.2 x 6 x 7





LED light bar(5 bars,57.20*6.00mm)
Lightbar LED

Illuminating Efficiency: The Revolutionary 5-Bar LED Light Bar (57.20*6.00mm) in Electronics

In the realm of electronic displays and indicators, LED technology stands out for its efficiency, versatility, and longevity. Among these innovations, the LED light bar, particularly the 5-bar configuration measuring 57.20*6.00mm, has become a focal point for manufacturers, engineers, and industry professionals. This article delves into the features, applications, benefits, and real-world implications of integrating these LED arrays into modern electronics, guided by insights from case studies and user testimonials.

The Cutting-Edge of LED Arrays

The term “LED array” often brings to mind the image of a series of light-emitting diodes arranged to form a coherent display module, such as the LED bar graph module. This technology facilitates not just illumination but communication through visual signals. Its application spans across various sectors, from consumer electronics to industrial control panels, offering a clear, intuitive means of monitoring and displaying data.

Features and Applications

The specific dimensions of the 5-bar LED light bar (57.20*6.00mm) make it an ideal candidate for applications requiring compact, yet visible, display solutions. The design and engineering of these LED arrays allow for seamless integration into a wide range of devices, including but not limited to:

  • Environmental monitoring systems
  • Consumer electronics (e.g., battery level indicators)
  • Automotive dashboards
  • Industrial control panels

The versatility of these LED light bars, coupled with their slim profile, offers unparalleled benefits in terms of space economy and aesthetic appeal.

Unveiling the Benefits

The adoption of LED bar graph modules in electronic projects comes with numerous advantages:

  • Energy Efficiency: LED technology is known for its low power consumption, making it an environmentally friendly option.
  • Durability: LEDs are robust and offer a long service life, reducing the need for frequent replacements.
  • Versatility: With a variety of colors and brightness levels, LED arrays can be customized to fit the specific needs of any project.
  • Visibility: The clear, bright output of LED light bars ensures that information is easily accessible, even in low-light conditions.

Real-World Impact: Case Studies

To illustrate the practical benefits of these LED light bars, we examine several case studies where the technology has been effectively implemented. These examples highlight how LED arrays have solved industry-specific challenges, such as improving user interface designs in consumer electronics and enhancing safety features in automotive applications.

User Testimonials: In Their Own Words

Feedback from professionals who have integrated these LED light bars into their projects underscores the technology’s value. Engineers praise the ease of installation and the immediate improvement in device functionality and aesthetics. Purchasers and administrators note the cost-effectiveness and positive customer feedback as key factors in their continued use of LED arrays in product designs.

Conclusion: Lighting the Way Forward

The 5-bar LED light bar (57.20*6.00mm) represents a significant step forward in the development of efficient, user-friendly display technologies. Its wide range of applications, combined with the tangible benefits it offers, underscores the importance of LED arrays in the future of electronics. For those looking to enhance their projects with reliable, visually appealing display solutions, the LED bar graph module is an investment worth considering.

Call to Action: Embrace the future of display technology by integrating the 5-bar LED light bar into your next project. Discover the difference in efficiency, durability, and design that LED arrays can bring to your electronics.

LED light bar(5 bars ,57.20*6.00mm)
LED light bar(5 bars ,57.20*6.00mm)


  • Display Area Shape: Rectangular, offering distinct and elongated areas for illumination.
  • Display Area Number: Features five display areas.
  • Reflector Dimensions: Length of 57.20mm and width of 6.00mm, providing a long and slim display area.
  • Suitable for Level Indicators: Especially designed for applications requiring extended level indication.
  • Low Current Operation: Energy-efficient, leading to reduced power consumption.
  • Wide Viewing Angle: Ensures the display is easily visible from various angles.
  • Uniform Light Emitting Area: Offers consistent and even lighting across all display areas.
  • Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
  • Flush Mountable: Can be installed to align seamlessly with the surface, ensuring a clean and integrated appearance.
  • Excellent On/Off Contrast: Enhances visibility and readability, important for indicators over a longer distance.
  • Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various panel types.
  • Categorized for Luminous Intensity: Ensures uniform brightness across different units.
  • Different Colors in One Unit Available: Allows for customization in color choices.
  • Standard: Black Face, White Segment: Offers a classic and easily readable appearance.
  • RoHS Compliance: Manufactured in compliance with environmental and safety standards.


  • Long Level Indicators: Ideal for applications requiring extended level indications, such as in large tanks, process lines, or industrial measuring systems.
  • Control Panels: Suitable for use in control panels where a longer display is necessary to indicate multiple levels or statuses.
  • Signal Lights: Applicable in settings where a series of signal lights along a length are needed for different conditions or statuses.
  • Instrumentation Displays: Effective for displaying multiple readings or statuses in larger instrumentation panels.
  • Consumer Electronics: Can be integrated into consumer electronics where a longer display is beneficial for indicating various levels or indicators.
  • Safety and Emergency Equipment: Suitable for indicating different safety levels or conditions over a longer area in emergency equipment.
  • Information Displays: Effective in conveying multiple pieces of information in a longer format, especially in public areas or complex systems.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Emitting Color
Peak Wavelength (nm)
Voltage typ. (v)
Voltage max. (v)
Luminous min
Luminous typ
ultra Blue
Super Red
Ultra Pure Green
Hi Red
ultra Blue
Ultra Orange
Ultra Green
Ultra Red
Ultra Yellow
Package configuration & Internal circuit diagram
LED light bar(5 bars ,57.20*6.00mm)

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED light bar is widely applied in instrument show box, elevator,etc

Part No of LED light bar display

Related Information

Applied for:
level displayheateraudiolift indicatorroad signal

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
