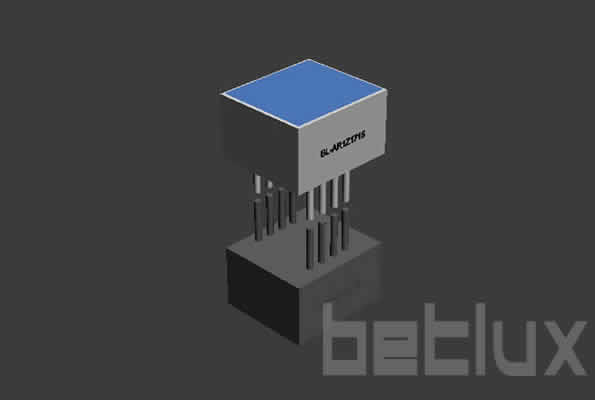

LED light bar(rectangular ,1 bar,17*15.00mm)

Series No:

BL-AR1Z1715

Weight:(g/pcs)

3

Dimension:(mm)

17 x 15 x 9.8

Specification:

download

Inquiry

Description:

LED light bar(rectangular,17*15.00mm)
Lightbar LED

Elevating Design with the LED Bar Graph: A Revolution in Lighting Technology

In the realm of electronic illumination, the LED bar graph, especially when it comes to the rectangular 1 bar, 17*15.00mm, stands out as a beacon of innovation and efficiency. Tailored for a broad spectrum of applications, this lighting solution captures the attention of electronics manufacturer engineers, purchasers, and administrators alike, offering a blend of aesthetic appeal and functional brilliance. This article delves into the features, applications, benefits, and real-world impacts of using these LED light bars, enriched with case studies and user testimonials to provide a comprehensive understanding of their transformative potential.

Innovative Features of the LED Bar Graph

The LED bar graph, particularly the variant with dimensions of 17*15.00mm, is celebrated for its compactness, energy efficiency, and remarkable brightness. Unlike conventional lighting solutions, these LED bars offer enhanced durability and versatility, making them an ideal choice for both sophisticated electronic devices and high-demand industrial environments. With the capacity to operate under low power while providing optimal luminosity, they serve as a testament to the advancements in LED technology, merging functionality with environmental sustainability.

Applications Across Industries

The utility of the LED bar graph extends across various sectors, including automotive, consumer electronics, aerospace, and industrial machinery. Their ability to provide clear and immediate visual feedback makes them indispensable in control panels, instrumentation, and portable devices. Moreover, their robustness and energy efficiency align perfectly with the demands of outdoor signage and emergency lighting, showcasing their adaptability and relevance in modern applications.

A Deep Dive into the Benefits

Choosing an LED bar graph for your projects brings forth a plethora of advantages. Notably, their long lifespan and low energy consumption translate to significant cost savings over time, not to mention the positive environmental impact due to reduced energy waste. Additionally, their compact size and ease of integration allow for creative design possibilities, enhancing the aesthetic and functional value of products.

Case Studies: Illuminating Success

Real-world implementations of the LED bar graph illuminate its effectiveness and versatility. For instance, in the automotive industry, these LED bars have been instrumental in developing more intuitive and energy-efficient dashboard displays. Similarly, in consumer electronics, they have enabled sleeker and more responsive user interfaces, highlighting their capacity to drive innovation and improve user experiences.

Hearing from the Users

Testimonials from engineers and purchasers underscore the LED bar graph’s role in elevating product design and functionality. Administrators applaud its reliability and cost-effectiveness, noting substantial improvements in operational efficiency and product appeal. These firsthand accounts provide valuable insights into the practical advantages and transformative potential of LED light bars in professional settings.

Navigating the Selection Process

Choosing the right LED bar graph involves considering factors such as dimensions, brightness levels, and intended application. This section guides readers through making informed decisions, ensuring the selected LED bars meet their specific needs and enhance the overall design and performance of their projects.

The Path Forward: Trends and Innovations

The future of LED bar graphs looks bright, with ongoing research and development poised to unlock even greater efficiencies, design possibilities, and applications. As technology evolves, these LED bars will continue to play a pivotal role in shaping the future of lighting and electronic design, offering a glimpse into the innovative solutions that lie on the horizon.

Concluding Thoughts

The rectangular LED bar graph, with its dimensions of 17*15.00mm, represents a significant leap forward in lighting technology. Its blend of efficiency, versatility, and aesthetic appeal makes it a preferred choice among professionals across various industries. By leveraging the insights and recommendations provided in this article, readers can harness the full potential of these LED light bars to illuminate their projects and drive innovation.

Call to Action

Discover the transformative power of the LED bar graph for your projects. Explore our selection and harness the benefits of advanced lighting technology today.

LED light bar(rectangular ,1 bar,17*15.00mm)
LED light bar(rectangular ,1 bar,17*15.00mm)

Features

  • Display Area Shape: Rectangular, providing a clear and distinct area for illumination.
  • Display Area Number: Features one display area.
  • Reflector Dimensions: Length of 17.00mm and width of 15.00mm, offering a balanced size for visibility and compactness.
  • Uniform Light Emitting Area: Ensures consistent and even lighting across the display.
  • Low Current Operation: Energy-efficient, leading to reduced power consumption.
  • Wide Viewing Angle: Allows the display to be easily visible from various angles.
  • Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
  • Flush Mountable: Can be installed to align seamlessly with the surface, ensuring a neat appearance.
  • Excellent On/Off Contrast: Provides clear visibility, enhancing readability when illuminated.
  • Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various types of panels.
  • Categorized for Luminous Intensity: Ensures uniform brightness across different units.
  • Different Colors in One Unit Available: Offers flexibility in color choices, enhancing customization.
  • Standard: Black Face, White Segment: Classic appearance for easy identification and readability.
  • RoHS Compliance: Meets environmental and safety standards.

Applications

  • Indicator Lights: Ideal for applications requiring clear indicator lights in electronics, machinery, or other equipment.
  • Control Panels: Suitable for use in control panels in devices, vehicles, or industrial machinery.
  • Signal Lights: Applicable in settings where clear, visible signal lights are needed.
  • Instrumentation Displays: Useful in displaying status or readings in instrumentation panels.
  • Consumer Electronics: Can be integrated into various consumer electronic devices for display or indication purposes.
  • Safety and Emergency Equipment: Suitable for use in safety devices requiring clear indicator lights.
  • Information Displays: Effective in information displays in public areas or systems.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage max. (v)
Luminous min
Luminous typ
BL-AR1Z1715B
ultra Blue
InGaN/SiC
470
4.2
8
12
BL-AR1Z1715D
Super Red
GaAlAs/DH
660
2.2
6
11
BL-AR1Z1715E
Orange
GaAsP/GaP
635
2.5
3
6
BL-AR1Z1715G
Green
GaP/GaP
570
2.5
3
6
BL-AR1Z1715H
Red
GaP/GaP
700
2.6
0.3
0.6
BL-AR1Z1715PG
Ultra Pure Green
InGaN/SiC
525
4.2
8
14
BL-AR1Z1715S
Hi Red
GaAlAs/SH
660
2.2
3
6
BL-AR1Z1715UB
ultra Blue
InGaN/SiC
470
4.2
12
22
BL-AR1Z1715UE
Ultra Orange
AlGaInP
630
2.5
6
11
BL-AR1Z1715UG
Ultra Green
AlGaInP
574
2.5
6
11
BL-AR1Z1715UR
Ultra Red
GaAlAs/DDH
660
2.2
10
20
BL-AR1Z1715UY
Ultra Yellow
AlGaInP
590
2.5
6
11
BL-AR1Z1715Y
Yellow
GaAsP/GaP
585
2.5
3
6
Package configuration & Internal circuit diagram
LED light bar(rectangular ,1 bar,17*15.00mm)


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED light bar is widely applied in instrument show box, elevator,etc

Part No of LED light bar display

Related Information

Applied for:
level displayheateraudiolift indicatorroad signal

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
