Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:

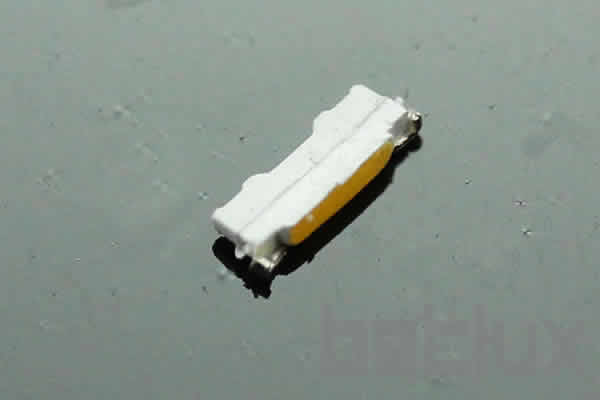

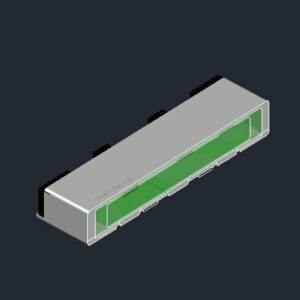

Introduction to SMD LED 3806 SIDE VIEW: Pioneering Brightness and Efficiency
In the fast-evolving world of electronic components, the SMD LED 3806 SIDE VIEW stands out for its remarkable efficiency and adaptability. This article explores the features, applications, benefits, and real-world validations of this innovative LED type, which is essential for electronics manufacturers, purchasers, and administrators who are keen to stay ahead in their field.
Understanding SMD LED 3806 SIDE VIEW
The SMD LED 3806 SIDE VIEW, a small yet powerful light-emitting diode, offers significant advantages over traditional LEDs. Designed for compact applications, this 3V LED (often referred to in the industry as “010 LED”) is ideal for space-constrained environments where directional lighting is crucial.
Key Features:
- Size and Configuration: The compact form factor allows for seamless integration into a variety of electronic devices.
- Voltage and Energy Efficiency: Operating at 3V, the LED is designed for low power consumption while delivering high output, which is a critical factor in reducing overall energy costs.
Applications Across Industries
The versatility of the SMD LED 3806 makes it a preferred choice for multiple applications:
- Consumer Electronics: Used in smartphones, tablets, and other personal devices where space is at a premium and efficient energy use is a priority.
- Automotive: Ideal for dashboard lighting, indicators, and other applications where reliability and longevity are essential.
- Medical Devices: Provides reliable, high-quality lighting in critical medical instruments.
Enhancing Performance: Benefits of SMD LED 3806
The benefits of incorporating the SMD LED 3806 SIDE VIEW into electronic projects are extensive:
- Durability: These LEDs are designed to withstand rigorous conditions, which is paramount in industrial and automotive applications.
- Energy Efficiency: Lower energy consumption translates to cost savings and a lower environmental impact, aligning with global energy efficiency standards.
Real-World Impact: Case Studies
Several case studies highlight the effectiveness of the SMD LED 3806 SIDE VIEW:
- Smartphone Manufacturer: A leading smartphone manufacturer incorporated these LEDs for backlighting, significantly reducing the thickness of their devices and improving battery life.
- Automotive Supplier: An automotive technology company used these LEDs in their dashboard designs, enhancing the visibility and lifespan of the displays.
User Testimonials
Feedback from industry professionals underscores the value of the SMD LED 3806:
- Electronics Manufacturer Engineer: “Integrating the SMD LED 3806 SIDE VIEW has allowed us to design slimmer, more energy-efficient devices without compromising on brightness.”
- Purchaser for Electronics Firm: “The cost-effectiveness and reliability of the 010 LED make it a no-brainer for our production needs.”
Conclusion and Call to Action
The SMD LED 3806 SIDE VIEW is not just a component; it’s a game-changer in the LED market, offering unmatched efficiency and adaptability. Whether you are an engineer, a purchaser, or an administrator in the electronics industry, integrating this LED into your projects can significantly enhance product performance and sustainability. Explore the possibilities with SMD LED 3806 SIDE VIEW today and illuminate your path to innovation.
Features
- 3.8mm x 0.6mm SMD, Side Emitting: A compact Surface-Mount Device (SMD) LED that emits light from the side, making it suitable for applications requiring side illumination.
- Ultra Brightness: Provides high luminosity, ensuring clear and intense light output, ideal for various lighting needs.
- Compatible with Automatic Placement Equipment: Designed for compatibility with automated manufacturing processes, facilitating efficient and precise placement in electronic assemblies.
- Wide Viewing Angle: Offers a broad range of visibility, particularly effective for applications where light needs to be visible from the side.
- Ideal for Backlight and Indicator: The side-emitting design makes it perfect for backlighting applications in displays and as an indicator light in electronic devices.
- Packaged 2,000 Pieces per Reel: The LEDs are supplied in bulk, with 2,000 pieces per reel, optimizing manufacturing and assembly efficiency.
- RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances directive, ensuring environmental safety and compliance.
Applications
- Edge-Lit Displays: Suitable for backlighting applications in edge-lit displays, where side illumination is crucial.
- Automotive Lighting: Ideal for automotive interior lighting, particularly for dashboard and accent lighting where space is limited.
- Slim Profile Electronic Devices: Appropriate for thin, sleek devices such as smartphones, tablets, and ultrathin laptops, where side illumination is needed.
- Signage and Channel Letters: Can be used in signage, channel letters, and advertising displays that require uniform side lighting.
- Decorative and Ambient Lighting: Suitable for creating ambient lighting effects in architectural designs, art installations, and interior design.
- Lighting in Confined Spaces: Well-suited for lighting applications in small or narrow spaces where traditional top-emitting LEDs are not feasible.
- Indicator Lights: Useful for status indicators in various electronic devices and control panels, offering clear visibility from the side.
- Portable Electronics: Given its small size and side-emitting characteristic, it’s ideal for wearable technology and other portable electronic devices.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-LS3806A0S1PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
3.8 |
1300 |
1500 |
120 |
|
BL-LS3806A0S1UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
3.8 |
450 |
500 |
120 |
|
BL-LS3806A0S1UEC |
Ultra Red |
AlGaAs |
630 |
Water Clear |
2.5 |
250 |
320 |
120 |
|
BL-LS3806A0S1UGC |
Ultra Green |
AlGaInP |
575 |
Water Clear |
2.7 |
70 |
80 |
120 |
|
BL-LS3806A0S1UW2C |
Warm White |
InGaN |
- |
Water Clear |
3.8 |
2000 |
2300 |
120 |
|
BL-LS3806A0S1UWC |
Ultra White |
InGaN |
- |
Water Clear |
3.8 |
1900 |
2100 |
120 |
|
BL-LS3806A0S1UYC |
Ultra Yellow |
AlGaInP |
593 |
Water Clear |
2.6 |
500 |
600 |
120 |
|
BL-LS3806A0S1UYO |
Ultra Amber |
AlGaInP |
610 |
Water Clear |
2.6 |
500 |
600 |
120 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
