Oval piranha led

Series No:





7.6 x 7.6 x 4.7






Illuminating Innovations: The Advantages of Oval Piranha LEDs in Modern Electronics

In the dynamic world of LED technology, oval Piranha LEDs stand out for their unique blend of form and function. As a subset of superflux LEDs, these components combine the efficiency and durability LEDs are known for with a distinctive shape that offers enhanced lighting solutions. This detailed exploration delves into the features, applications, and numerous benefits of oval Piranha LEDs, also known as oval LEDs or super flux LEDs. Through case studies and user testimonials, we aim to shed light on the transformative impact these LEDs have on the electronics industry, catering to manufacturers, engineers, purchasers, and administrators.

Understanding Oval Piranha LEDs

Oval Piranha LEDs, part of the superflux led family, are renowned for their unique oval shape and powerful light output. These LEDs are designed to provide focused lighting with a wide angle of dispersion, making them ideal for various applications where both brightness and visibility are critical.

Key Features and Broad Applications

Distinct Shape and Enhanced Dispersion: The oval shape allows for more uniform light distribution, making these LEDs perfect for signage, automotive lights, and decorative lighting. Their ability to spread light over a broader area without losing intensity sets them apart from traditional LEDs.

Durability and Efficiency: Like their superflux counterparts, oval Piranha LEDs are built for longevity and energy efficiency. Their robust design makes them resistant to shock and vibration, while their low power consumption contributes to a greener environment and reduced energy costs.

The Benefits of Using Oval Piranha LEDs

Versatility: The unique form factor of oval Piranha LEDs makes them adaptable to a multitude of designs and applications, from intricate electronic devices to large-scale outdoor displays.

Cost-Effectiveness: Despite their advanced features, these LEDs remain an economical choice due to their durability and low energy requirements, offering significant savings over their lifespan.

Real-World Success: Case Studies and Testimonials

Case Studies: A highlight in the use of oval Piranha LEDs is their implementation in traffic lights across several cities. The transition resulted in enhanced visibility of signals, contributing to improved road safety and reduced maintenance costs.

User Testimonials: Engineers and designers who have utilized oval Piranha LEDs in their projects often speak to the ease of integration and the noticeable improvement in lighting quality and design flexibility they provide.

Conclusion: Lighting the Way Forward with Oval Piranha LEDs

The oval Piranha LED represents a significant advancement in LED technology, offering an innovative solution that combines efficiency, durability, and versatility. As the demand for more effective and sustainable lighting solutions continues to grow, the adoption of these LEDs in various industries is a testament to their value.

Call to Action: Transform your projects with the cutting-edge illumination provided by oval Piranha LEDs. Experience unparalleled brightness and efficiency today.

Oval piranha led
Oval piranha led

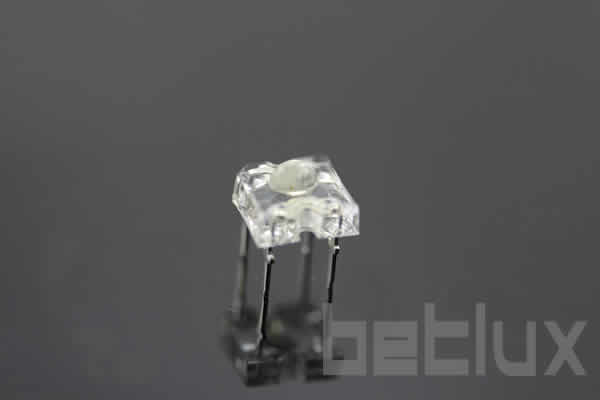

  • Oval Head Super Flux LED Lamp: This LED type is characterized by an oval-shaped head, which provides a distinct light distribution pattern.
  • Dimensions: The size of 7.62 x 7.62 x 4.0 mm makes these LEDs compact, allowing for integration into various electronic devices and lighting systems.
  • Wide Viewing Angles: The oval head design enables a broad viewing angle, making these LEDs effective for applications where visibility from multiple angles is important.
  • Ideal for Backlight and Indicator: Their wide viewing angle and bright output make them well-suited for use as backlights in displays and control panels, as well as indicators in electronic devices.
  • RoHS Compliance: Adherence to the Restriction of Hazardous Substances Directive ensures that these LEDs are manufactured without using certain hazardous materials, making them environmentally friendly and safe for use.


  • Backlighting in Displays: Commonly used for backlighting in LCD displays, keypads, and control panels, providing even and effective illumination.
  • Indicator Lights: Ideal for use as indicator lights in electronic devices, automotive dashboards, control panels, and machinery, offering clear visibility.
  • Decorative Lighting: Suitable for decorative lighting applications due to their unique shape and bright light, enhancing both indoor and outdoor settings.
  • Signage and Display Boards: Employed in signage, billboards, and display boards for their durability, high visibility, and wide viewing angle.
  • Consumer Electronics: Incorporated into various consumer electronics as status indicators and for backlighting screens and buttons.
  • Automotive Lighting: Applied in automotive lighting systems for dashboard illumination, signal lights, and other interior and exterior lighting applications.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Ultra Bluish Green
Water Clear
Ultra Pure Green
Water Clear
Ultra Blue
Water Clear
Ultra Orange
Water Clear
Ultra Green
Water Clear
Ultra Red
Water Clear
Ultra White
Water Clear
Ultra Yellow
Water Clear
Package configuration & Internal circuit diagram
Oval piranha led

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light


The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
