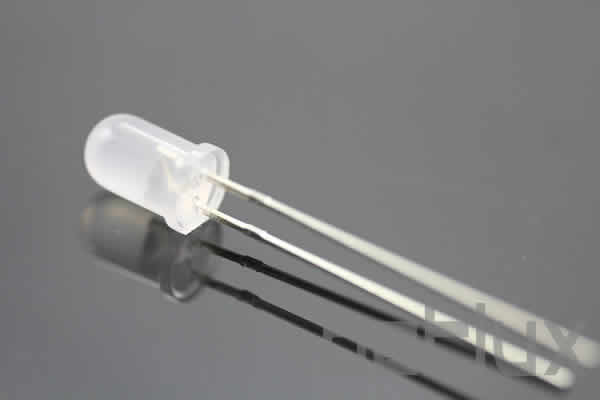

5mm round RGB color, Blinking

Series No:

BL-L516

Weight:(g/pcs)

0.3

Dimension:(mm)

5 x 5.9 x 8.6

Package:

Specification:

download

Inquiry

Description:

The Dynamic Features of 5mm Round RGB Color, Blinking LEDs

5mm round RGB color, blinking LEDs are distinguished by their ability to cycle through colors and blink patterns, making them significantly versatile components in electronic design. The integration of “blink LEDs” and “LED 5mm” technology allows these devices to produce a wide range of colors by mixing red, green, and blue light at varying intensities. Moreover, their blinking capability adds an extra layer of functionality, enabling them to signal, alert, and enhance the visual appeal of electronic projects.

Diverse Applications Across Industries

The applications for 5mm round RGB color, blinking LEDs are vast and varied. In consumer electronics, they are used to indicate power, charging status, and notifications. Their use extends to advertising, where they attract attention in signage and displays. In an industrial setting, these LEDs serve as warning lights and indicators for machinery and equipment, demonstrating their adaptability to different environments and requirements.

Enhancing Electronic Designs: The Benefits

Incorporating 5mm round RGB color, blinking LEDs into electronic designs brings numerous benefits. Their compact size allows for integration into various devices without compromising space. The ability to customize color and blink patterns enables precise communication and enhances the user interface of electronic devices. Additionally, these LEDs are energy-efficient, contributing to the sustainability and cost-effectiveness of the projects they are part of.

Case Studies: Illuminating Success Stories

One notable case study involves a consumer electronics manufacturer that utilized 5mm round RGB color, blinking LEDs in a line of portable speakers. The LEDs not only indicated the device’s operational status but also reacted to music, creating an immersive listening experience that significantly increased product appeal and sales.

Another example comes from the automotive industry, where these LEDs were integrated into dashboard displays. Their blinking capability was used to alert drivers to critical engine warnings, improving vehicle safety and functionality.

User Testimonials: Shining Endorsements

Feedback from industry professionals underscores the value of 5mm round RGB color, blinking LEDs. An electronics design engineer mentioned, “The versatility and reliability of these LEDs have opened new avenues for creativity in our product designs.” A procurement manager noted, “Their cost-effectiveness and long service life make them an excellent choice for our electronic components inventory.”

Conclusion: A Brighter Future with RGB Blinking LEDs

The exploration of 5mm round RGB color, blinking LEDs highlights their significance in modern electronics design. By offering a combination of compactness, color versatility, and dynamic functionality, these LEDs are set to continue shaping the future of electronic applications. For those in the electronics industry, embracing these innovative components is not just an option but a necessity for staying competitive and meeting the evolving demands of technology.

5mm round RGB color, Blinking
5mm round RGB color, Blinking

Features

  • 5.0mm Round Type, RGB Full Color LED Lamps, with Blinking: These LEDs are capable of displaying a full spectrum of colors (Red, Green, Blue) and have an integrated blinking function, adding dynamic visual effects without the need for additional external controllers.
  • Diffused and Water Clear Lens Options: Available with either diffused lenses (for a softer, more spread-out light) or water clear lenses (for brighter, more concentrated light).
  • Popular T-1 Diameter Package: The LEDs are housed in a standard T-1 (5.0mm) diameter package, making them compatible with a wide range of standard LED applications and designs.
  • IC Compatible / Low Current Capability: Designed for compatibility with integrated circuits (ICs) and operate efficiently on low current, enhancing their energy efficiency and making them suitable for a variety of electronic applications.
  • RoHS Compliance: Manufactured in line with the Restriction of Hazardous Substances directive, ensuring they are environmentally friendly and safe for use.

Applications

  • Decorative Lighting: Ideal for decorative applications such as in architectural lighting, art installations, and event setups, where RGB color and blinking capabilities can enhance the visual appeal.
  • Indicator Lights: Suitable for use as multi-colored indicators in electronic devices and appliances, where the integrated blinking feature can attract attention or convey different statuses.
  • Consumer Electronics: Can be used in personal electronic devices like gaming consoles, speakers, and other gadgets where RGB lighting adds to the user experience.
  • Automotive Lighting: Appropriate for automotive applications, particularly for interior mood lighting or dashboard displays, utilizing the full RGB spectrum and blinking effects.
  • Entertainment and Stage Lighting: Perfect for dynamic lighting effects in entertainment venues and stage lighting designs.
  • Interactive Displays and Signs: Ideal for use in interactive displays, advertising signs, and message boards where changing colors and blinking can draw attention.
  • Safety and Emergency Signaling: Suitable for safety signs and emergency equipment where blinking lights can enhance visibility and communication.
  • Educational and DIY Projects: Often used in DIY electronics, robotics, and educational projects for their versatility and the engaging visual effects they can create.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
color
material
wavelength
apperance
v_typ
v_max
luminous_min
luminous_typ
degree
BL-L516RGBC-B
Blue
InGaN
430
Water Clear
4.2
800
2000
20
BL-L516RGBC-B
Ultra Orange
AlGaInP
630
Water Clear
2.5
800
2000
20
BL-L516RGBC-B
Ultra Pure Green
InGaN
525
Water Clear
4.2
2000
5000
20
BL-L516RGBW-B
Ultra Pure Green
InGaN
525
Water Diff.
4.2
300
600
30
BL-L516RGBW-B
Blue
InGaN
430
Water Diff.
4.2
150
300
30
BL-L516RGBW-B
Ultra Orange
AlGaInP
630
Water Diff.
2.5
200
500
30
Package configuration & Internal circuit diagram
5mm round RGB color, Blinking


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
