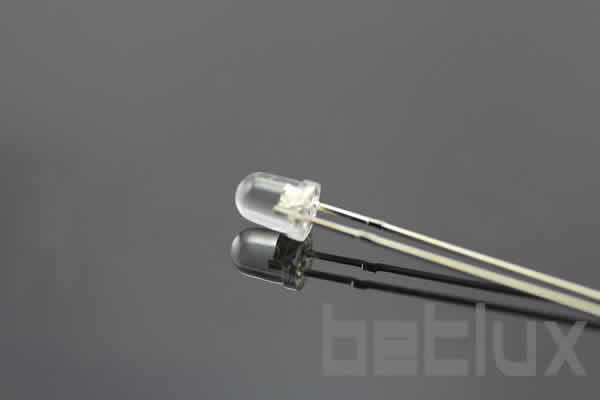

4mm LED diode

Series No:

BL-L413

Weight:(g/pcs)

0.22

Dimension:(mm)

4 x 4.6 x 6

Package:

Specification:

download

Inquiry

Description:

Illuminating the World: The 4mm LED Diode

At the heart of modern lighting and electronic design lies the 4mm LED, a component celebrated for its efficiency and adaptability. Unlike its larger counterparts, the 4mm LED provides a perfect balance between size and luminosity, making it an ideal choice for a wide array of applications.

Core Features of 4mm LED Diodes

  • Compact Design: The 4mm LED stands out for its small footprint, allowing for integration into various devices without compromising space.
  • High Efficiency: These LEDs are designed for optimal energy use, providing bright illumination while consuming minimal power.
  • Variety of Colors: Available in a range of colors, including white LEDs, 4mm LEDs offer designers creative flexibility in their projects.

Versatile Applications: Lighting Up Innovation

The applications of 4mm LED diodes are vast, ranging from simple indicator lights on PCB (Printed Circuit Board) led configurations to sophisticated architectural lighting designs. Their compact size and efficiency make them suitable for portable electronics, automotive lighting, and even medical devices, where precision and reliability are paramount.

Benefits of Integrating 4mm LED Diodes

Choosing 4mm LED diodes for electronic designs brings several advantages:

  • Enhanced Product Design: Their small size allows for sleeker, more compact product designs without sacrificing brightness or visibility.
  • Energy Conservation: 4mm LEDs help reduce overall power consumption, contributing to more sustainable electronic solutions.
  • Durability: These LEDs boast a long lifespan, reducing the need for frequent replacements and maintenance.

Case Studies: Shining Examples of LED Success

One notable case study involves a leading smartphone manufacturer that incorporated 4mm LEDs into their latest model’s backlighting system. The use of these diodes not only improved the device’s display brightness but also its battery life, showcasing the LEDs’ efficiency and effectiveness.

User Testimonials: Real-World Insights

“Integrating 4mm LEDs into our product line has significantly enhanced the aesthetic appeal and functionality of our devices,” shares a Product Development Engineer from a renowned electronics firm. “Their compact size and luminosity have allowed us to innovate beyond our competitors.”

Conclusion: A Bright Future with 4mm LED Diodes

The exploration into the world of 4mm LED diodes reveals their indispensable role in the advancement of modern electronics. With their compact size, efficiency, and versatility, these LEDs are set to continue illuminating the path towards innovative and sustainable electronic solutions. As technology evolves, the importance of incorporating efficient, versatile components like the 4mm LED diode becomes increasingly evident.

Call to Action: Embrace the brilliance of 4mm LED diodes in your next electronic project. Discover how these compact, efficient, and versatile components can transform your designs, offering enhanced functionality and aesthetics. Step into the future of electronics with the innovative power of 4mm LEDs.

4mm LED diode
4mm LED diode

Features

  • 4.0mm Round Type LED Lamps: These LEDs are suitable for a wide range of applications, with their standard 4.0mm diameter making them compatible with many devices and fixtures.
  • Choice of Various Viewing Angles: Available in different viewing angles to cater to specific application needs, ensuring optimal visibility and light distribution for various uses.
  • Lens Options: Offered with diffused, transparent, and water-clear lenses. The diffused lens provides a softer light spread, the transparent lens offers a sharper light output, and the water-clear lens allows for the most direct and intense light.
  • IC Compatibility / Low Current Capability: These LEDs can be easily integrated with integrated circuits, making them suitable for complex electronic designs. Their low current operation also enhances energy efficiency.
  • RoHS Compliance: Adheres to environmental and safety standards, ensuring the use of materials that are safe and environmentally friendly.

Applications

  • Indicator Lights: Commonly used in electronic devices, appliances, and control panels as indicators for power status, operational states, or warnings.
  • Backlighting: Utilized for backlighting in LCD displays, keypads, and control panels.
  • Consumer Electronics: Used in various consumer electronics for status indicators, aesthetic enhancements, and more.
  • Automotive Lighting: Employed in car dashboards, signal lights, or as part of the interior and exterior decorative lighting.
  • Toys and Novelty Items: Used in toys and novelty items to add visual appeal and functionality.
  • Signal and Signage Applications: Incorporated in digital billboards, traffic signals, and signage for high visibility and durability.
  • DIY Projects and Hobby Electronics: Popular in DIY electronics and hobby projects due to their versatility and ease of use.
  • Decorative Lighting: Used in decorative lighting installations for homes, commercial spaces, and events.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
color
material
wavelength
apperance
v_typ
v_max
luminous_min
luminous_typ
degree
BL-L413BC
Blue
InGaN
430
Water Clear
4.2
400
1000
25
BL-L413BGC
Ultra Bluish Green
InGaN
505
Water Clear
4.2
900
3500
25
BL-L413LRC
Super Red
AlGaAs,DH
660
Water Clear
2.2
250
700
25
BL-L413PGC
Ultra Pure Green
InGaN
525
Water Clear
4.2
1200
4000
25
BL-L413SRC
Hi Red
AlGaAs,SH
660
Water Clear
2.2
80
300
25
BL-L413UBC
Ultra Blue
InGaN
470
Water Clear
4.2
500
4000
25
BL-L413UEC
Ultra Orange
AlGaInP
630
Water Clear
2.5
900
1900
25
BL-L413UGC
Ultra Green
AlGaInP
574
Water Clear
2.5
220
650
25
BL-L413URC
Ultra Red
AlGaAs,DDH
660
Water Clear
2.2
550
1000
25
BL-L413UWC
Ultra White
InGaN
-
Water Clear
4.2
3000
10000
25
BL-L413UYC
Ultra Yellow
AlGaInP
590
Water Clear
2.5
900
2100
25
BL-L413VC
UV
InGaN
405
Water Clear
4.2
100
160
25
Package configuration & Internal circuit diagram
4mm LED diode


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
