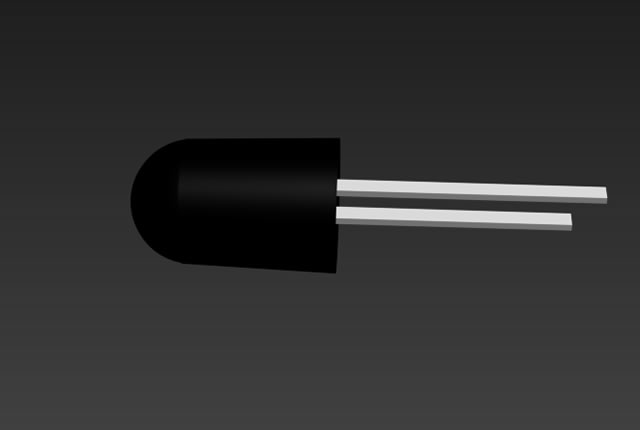

3mm Phototransistors
Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Unveiling 3mm Phototransistors
Phototransistors, especially the 3mm variants, are renowned for their sensitivity to light—capable of converting light photons into electrical current. This remarkable ability positions them as indispensable components in circuits where light detection is crucial. From remote controls to ambient light sensing, their applications are as diverse as they are critical.
Key Features of 3mm Phototransistors
3mm phototransistors boast several distinguishing features that set them apart. Their compact size facilitates easy integration into led circuit boards without compromising on performance. Coupled with high sensitivity to infrared light, these devices offer precision and reliability, making them ideal for a broad spectrum of electronic applications.
Applications Across Industries
The utility of 3mm phototransistors spans a wide range of industries. In consumer electronics, they are pivotal in remote controls, enabling seamless communication with televisions and other appliances. Security systems leverage these components for beam-breaking intrusion detectors, while in automation, they serve as essential elements in sensor arrays for process control.
Advantages of Employing 3mm Phototransistors
Integrating 3mm phototransistors into electronic designs confers numerous benefits. Their sensitivity to specific wavelengths enhances system reliability, ensuring precise operation. The energy efficiency of these components also contributes to the longevity of battery-powered devices, while their durability underpins systems with consistent performance over time.
Case Studies: Illuminating Success
Exploring case studies unveils the transformative impact of 3mm phototransistors across applications. From streamlining manufacturing processes through automated sensors to enhancing consumer experience in smart home technology, these components prove their worth time and again. Each case study provides concrete examples of their versatility and efficiency in real-world scenarios.
User Testimonials: Voices from the Field
Hearing directly from those who’ve implemented 3mm phototransistors in their projects adds a layer of authenticity and insight. Engineers share tales of overcoming design challenges with these components, while purchasers highlight the cost-effectiveness and reliability that 3mm phototransistors bring to the table. These testimonials underscore the component’s value in the electronics community.
Conclusion: The Future Is Bright for 3mm Phototransistors
The journey through the capabilities and applications of 3mm phototransistors reaffirms their essential role in modern electronics. Their ability to accurately sense and respond to light opens up a spectrum of possibilities for innovation and efficiency. As technology marches forward, the importance of these tiny yet powerful components is set to grow, illuminating the path towards more responsive, reliable, and efficient electronic systems.
Call to Action: Leverage the potential of 3mm phototransistors in your next project to unlock new levels of performance and innovation. Explore how these compact components can transform your designs, enhancing functionality and efficiency across a range of applications.
Features of 3.0mm Round Type 3mm Phototransistors:
- High reliability for consistent and dependable performance.
- Peak wavelengths available at 940nm, 880nm, and 850nm.
- Options for water-clear, yellow transparent, and blue transparent variations.
- IC compatible with low current capability for efficient operation.
Applications:
- Remote control systems.
- Light-sensitive switches.
- Object detection in industrial applications.
- Ambient light sensing for electronic devices.
- Proximity sensors.
- Optical encoders.
- Security systems.
- Industrial automation.
- Consumer electronics.
- Customized infrared projects.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
Partno description:
More Information
Lens Color:
Code | D | T | C | W | E | |
Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
Storage Temperature T STG | -40 to +85 | °C | |||||||||||
Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C |
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. |
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
