3mm LED diode

Series No:





2.9 x 3.5 x 3.9






Understanding the 3mm LED Diode

At the core of modern electronic design, the 3mm LED diode, also known as a “3mm diode” or “LED diode,” offers a perfect blend of compactness and functionality. These diodes are specifically designed to provide high-intensity light with minimal power consumption, making them an ideal choice for a wide range of applications. The term “LED licht” often refers to the illumination provided by these diodes, highlighting their role in lighting solutions across the globe.

Key Features of 3mm LED Diodes

  • Compact Size: The diminutive size of the 3mm diode allows for its incorporation into virtually any electronic device, making it a versatile choice for designers.
  • Energy Efficiency: These diodes are celebrated for their low power requirements, contributing to longer battery life in portable devices and reduced energy costs in larger systems.
  • Bright Illumination: Despite their small size, 3mm LED diodes produce a bright and clear light, available in a variety of colors to suit different applications and aesthetic preferences.

Wide-Ranging Applications

The 3mm LED diode finds its place in an array of settings, from indicator lights on electronic devices and appliances to sophisticated LED light PCB (printed circuit board) designs. They are integral to consumer electronics, automotive lighting, signal lights, and decorative lighting, demonstrating their broad utility and adaptability.

The Benefits of Employing 3mm LED Diodes

Opting for 3mm LED diodes in electronic designs brings several advantages:

  • Durability: These diodes are known for their long lifespan, often outlasting the devices they are part of.
  • Cost-Effectiveness: The efficiency and durability of 3mm LED diodes contribute to cost savings over time, due to less frequent replacements and lower energy consumption.
  • Design Flexibility: The compact size and variety of available colors allow for creative and innovative design possibilities, enabling manufacturers to meet specific customer needs and preferences.

Case Studies: Illuminating Success

A notable case study involves a leading smartphone manufacturer that incorporated 3mm LED diodes into their latest model for notification lights. This addition enhanced the user experience by providing clear and instant visual alerts for messages, calls, and battery status, contributing to the phone’s market success.

Another case study highlights the use of 3mm LED diodes in emergency exit signs in commercial buildings. The switch to LED technology resulted in significant energy savings and reduced maintenance costs, while ensuring reliability and visibility in critical situations.

User Testimonials: Voices from the Industry

“Integrating 3mm LED diodes into our control panels has drastically improved visibility and reliability,” shares an Electronics Engineer from a leading industrial automation company. “Their compact size and brightness have made a significant difference in operation efficiency and safety.”

From a purchasing perspective, an Electronics Components Purchaser notes, “The cost-benefit ratio of sourcing 3mm LED diodes for our projects has been incredibly favorable. Their durability and efficiency have contributed to lower overall project costs and enhanced product value.”

Conclusion: The Bright Future of 3mm LED Diodes

The exploration of the 3mm LED diode reveals its indispensable role in the evolution of electronic components. Its compact size, efficiency, and versatility make it a preferred choice among industry professionals, driving forward innovations that light up our world. As technology continues to advance, the significance of the 3mm LED diode is poised to grow, illuminating the path to new possibilities and solutions.

Call to Action: Elevate your electronic projects with the versatile and efficient 3mm LED diode. Discover the difference that this compact powerhouse can make in enhancing functionality and design aesthetics. Step into the future of electronics with confidence and creativity.

3mm LED diode
3mm LED diode

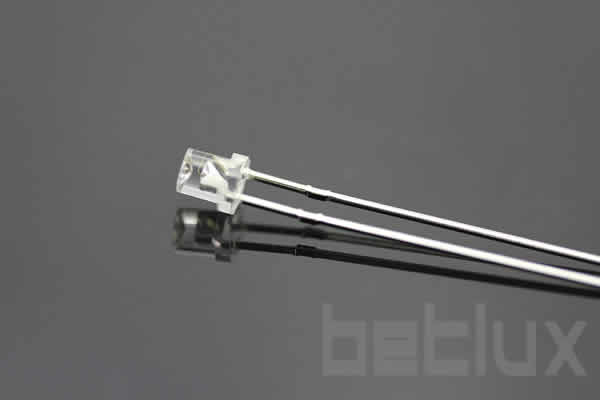

  • 3.0mm Cylindrical, Inverted Cone Design: This unique structure allows for a distinct light dispersion pattern, making it suitable for applications requiring directed light with a broad spread.
  • Various Viewing Angles: Available in different viewing angles to cater to specific requirements, ensuring optimal light distribution for diverse applications.
  • Lens Options: Comes with diffused, transparent, and water-clear lens options. Diffused lenses offer a softer and more spread-out light, transparent lenses provide a more focused light path, and water-clear lenses deliver the most direct and intense light.
  • IC Compatibility / Low Current Capability: Can be easily integrated with integrated circuits, suitable for complex electronic designs. The low current operation enhances energy efficiency, which is beneficial for battery-operated devices.
  • RoHS Compliance: Adheres to environmental and safety standards, indicating the use of materials that are safe and environmentally friendly.


  • Focused Indicator Lights: Ideal for use in electronic devices and control panels where directed indicator lights are needed.
  • Backlighting and Illumination: Suitable for backlighting in displays, keypads, and control panels, especially where a broad light spread is desired.
  • Consumer Electronics: Used in various consumer electronics for status indicators or aesthetic enhancements, particularly in devices requiring a unique lighting effect.
  • Automotive Lighting: Employed in automotive dashboards and signal lighting for focused illumination.
  • Signal Lights: Incorporated into signal lights and warning indicators where a broad yet directed light is necessary.
  • Toys and Novelty Items: Integrated into toys and novelty items for unique lighting effects and enhanced user interaction.
  • Decorative Lighting: Utilized in decorative and artistic lighting installations for creating focused yet diffused light patterns.
  • DIY Projects and Hobby Electronics: Popular in DIY electronics and hobby projects due to their unique shape and versatile lighting characteristics.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Water Clear
Ultra Bluish Green
Water Clear
Super Red
Water Clear
Ultra Pure Green
Water Clear
Hi Red
Water Clear
Ultra Blue
Water Clear
Ultra Orange
Water Clear
Ultra Green
Water Clear
Ultra Red
Water Clear
Ultra White
Water Clear
Ultra Yellow
Water Clear
Water Clear
Package configuration & Internal circuit diagram
3mm  LED diode

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light


The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
