Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Introduction
The ultra violet LED technology, particularly through the use of 3535 SMD LED diodes and UVC LEDs, represents a significant advancement in the electronics industry. These components are crucial for developers and manufacturers who demand high efficiency and precise applications in fields ranging from medical devices to water purification systems. In this article, we explore the unique features, applications, benefits, and real-world impacts of these innovative LED solutions, providing insights from case studies and user testimonials.
Exploring the Features of 3535 SMD LED Diodes
The 3535 SMD LED diode is renowned for its compact size and high performance, making it an ideal choice for space-constrained applications that require high-intensity light output. Key features include:
- High Luminous Efficiency: These diodes maximize brightness while minimizing energy use, crucial for sustainable designs.
- Thermal Management: Designed to dissipate heat effectively, ensuring longer life spans and stable performance.
- Versatility: They are used in a variety of settings, from backlighting and indication to high-power lighting applications.
Applications and Advantages of UVC LEDs
UVC LEDs offer specific advantages due to their ability to emit short-wave ultraviolet light. This capability is instrumental in non-visible applications with critical health and safety implications:
- Sterilization: UVC LEDs are powerful tools for disinfecting water, air, and surfaces, helping to prevent the spread of bacteria and viruses without chemical contaminants.
- Medical Equipment: These LEDs are increasingly used in medical diagnostics, enabling portable, instant analysis equipment.
Benefits of Ultra Violet LED Technology
The adoption of ultra violet LED and specifically UVC LED light technology brings numerous benefits:
- Energy Efficiency: LEDs significantly reduce energy consumption, which is vital in today’s energy-conscious world.
- Durability: LEDs are robust, with no filaments to break, making them more durable than traditional bulbs.
- Safety: Unlike mercury-based UV sources, LEDs do not pose a hazard if damaged.
Real-World Impact: Case Studies
Several companies have leveraged these technologies to enhance their products and processes. For example, a leading beverage company implemented UVC LED systems to sterilize drink containers on the production line, resulting in improved safety standards and reduced reliance on chemical sanitizers.
Hearing from the Experts: User Testimonials
Engineers and technical purchasers have praised the integration of these LEDs. A senior electronics engineer stated, “Incorporating 3535 SMD LEDs into our designs has significantly improved our products’ performance while keeping energy costs down.”
Conclusion
The use of 3535 SMD LED diodes and UVC LEDs in the electronics industry showcases a forward-moving trajectory towards more efficient, reliable, and eco-friendly technological solutions. As the demand for advanced and precise technologies grows, these LEDs will play a pivotal role in meeting the needs of modern applications across various industries.
Call to Action: Ready to enhance your electronic solutions with cutting-edge LED technology? Explore our range of 3535 SMD and UVC LED products today and lead the way in innovation and efficiency.

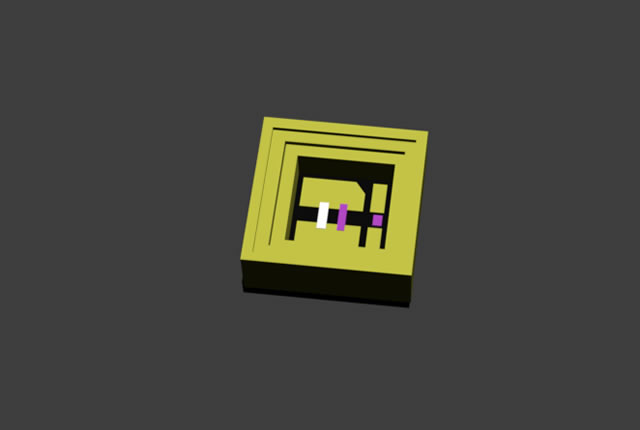

Features:
-
- Compact size: 3.5mm x 3.5mm with a thickness of 2.8mm
- Mono-color type with Ultra Brightness
- Compatible with automatic placement equipment
- Wide Viewing Angle for versatile applications
- Ideal for Backlighting and Indicator purposes
- Package includes 500 pieces on a reel
- RoHS Compliance for environmental considerations
Applications:
-
- Backlighting for electronic displays
- Indicator lights on control panels
- Disinfection and sterilization applications
- Ultraviolet-C (UVC) LED technology
- Lighting solutions for medical devices
- Sanitization equipment in healthcare settings
- Industrial UV curing processes
- Compact design for space-constrained applications
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-LS3535D0G1UVC-20A |
UVA 395-400nm |
395-400nm |
Water Clear |
3.4 |
20 |
30 |
120 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
