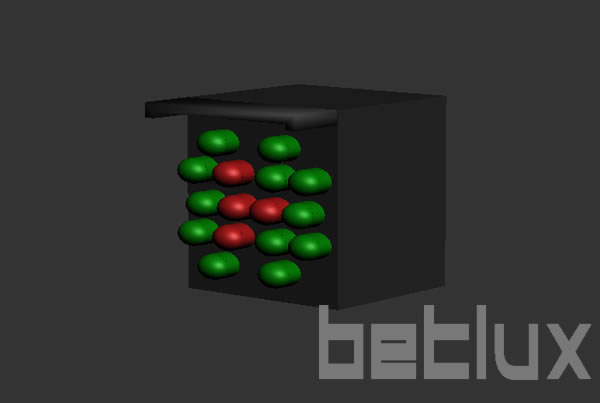

28mm led cluster (4 red 12 green, square packed)

Series No:










28mm Lamp cluster (4 red 12 green, square packed)
28mm LED cluster

Illuminating Innovation: The 28mm LED Cluster (4 Red 12 Green, Square Packed)

In the vibrant world of LED technology, the introduction of the 28mm LED cluster, boasting an impressive array of 4 red and 12 green LEDs, marks a significant advancement in lighting solutions. This “rgb cluster lights” masterpiece, synonymous with efficiency and versatility, represents the pinnacle of LED innovation. From the outset, it’s clear that such a “led cluster” not only illuminates spaces with unparalleled brightness but also offers a spectrum of colors to enhance any project. Coupled with the utility of a “white led module,” this LED cluster is designed to meet the exacting standards of electronics manufacturers, engineers, purchasers, and administrators alike.

Diverse Features for Expansive Applications

The 28mm LED cluster excels in delivering:

  • Dynamic Color Range: A vibrant mix of red and green, along with the addition of white modules, provides a broad color palette for creative lighting designs.
  • Energy Efficiency: Emphasizing low power consumption without sacrificing brightness, this cluster is an emblem of sustainable innovation.
  • Robust Design: Engineered for versatility, its square-packed form ensures durability and ease of integration across both indoor and outdoor applications.

Applications: Shining a New Light

From architectural lighting to advanced electronics, the 28mm LED cluster’s “led cluster” capability paves the way for creativity and innovation. Its ability to seamlessly blend into various environments underscores its utility in pioneering design projects, making it a sought-after component in the lighting industry.

The Bright Benefits: Shining Beyond Brightness

Opting for the 28mm LED cluster translates into numerous advantages, including improved energy efficiency, enhanced aesthetic appeal, and a reduced environmental footprint, aligning with the strategic goals of forward-thinking businesses and creative endeavors.

Case Studies: Illumination in Action

Real-world applications offer a glimpse into the transformative impact of the 28mm LED cluster. These case studies highlight its versatility and effectiveness in elevating brand presence, enhancing product design, and contributing to sustainable practices.

Voices of Innovation: User Testimonials

Direct feedback from professionals who have integrated this LED cluster into their projects provides valuable insights into its practical benefits, ease of use, and the innovative potential it unlocks, reinforcing its value across various sectors.

Conclusion: Lighting the Path to the Future

The 28mm LED cluster (4 red 12 green, square packed) represents not just a leap in LED technology but a commitment to innovative, eco-friendly, and adaptable lighting solutions. As industries continue to evolve, the demand for sophisticated, efficient, and versatile lighting solutions like this LED cluster is set to increase, illuminating the path toward a brighter, more sustainable future.

Call to Action: Transform Your Lighting with the 28mm LED Cluster

Step into the future of lighting by incorporating the 28mm LED cluster into your next project. Experience the difference in color diversity, efficiency, and design flexibility. Begin your journey toward groundbreaking illumination today.

28mm led cluster (4 red 12 green, square packed)
28mm led cluster (4 red 12 green, square packed)


  • Square Shape: Compact and uniform design, making it suitable for various applications.
  • Dimensions: Each LED cluster measures 28.00mm x 28.00mm, providing a compact yet visible lighting solution.
  • High Visibility: Designed to be bright and noticeable, suitable for various display and signaling applications.
  • Emitting Colors: Includes a combination of red and green LEDs, offering versatile display options.
  • Number of Built-in 5mm LED Lamps: The cluster contains 4 super bright red LEDs and 12 green LEDs.
  • Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability and functionality in various weather conditions.
  • Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
  • Low Current, Power Savings: Energy-efficient, contributing to lower power consumption and cost savings.
  • Low Maintenance: Requires minimal upkeep due to the durability and reliability of LED technology.
  • Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
  • Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, making it suitable for high-impact environments.
  • Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide range of colors for diverse lighting needs.
  • RoHS Compliance: Manufactured in compliance with environmental and health safety standards.


  • Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces, commercial areas, and transportation hubs.
  • Signage and Advertising: Suitable for use in signs, billboards, and promotional displays for businesses and events.
  • Safety and Warning Signals: Can be used for traffic signals, warning lights, and emergency signage.
  • Architectural Lighting: Applicable in architectural designs for both functional and aesthetic lighting.
  • Event and Stage Lighting: Ideal for concerts, theaters, and other event venues for decorative and functional lighting.
  • Industrial Indicators: Useful in industrial settings for machinery status indicators, alert systems, and control panels.
  • Retail Displays: Enhances retail displays and storefronts with eye-catching and customizable lighting.
  • Public Art and Installations: Suitable for public art projects and installations that require durable and versatile lighting solutions.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram
28mm led cluster (4 red 12 green, square packed)

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED Cluster is widely applied in traffic signal, scoreboard sign,etc

Part No of  LED Cluster

Related Information

Applied for:
road signal clusterroad arrow signaloutdoor coreboardoutdoor coreboardoutdoor coreboard


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
