Series No:
Weight:(g/pcs)
Dimension:(mm)
Dot height:(mm)
Dot pitch:(mm)
Dot size:(mm)
Specification:
Inquiry
Description:
Introduction
The world of electronic displays is witnessing significant advancements with technologies like the 5×8 LED, especially the 2.3 inch height 5×8 LED dot matrix, bi-color. This component, often utilizing a common cathode configuration for its LEDs, provides unmatched clarity and versatility. Ideal for a variety of applications, this technology caters effectively to engineers, purchasers, and administrators in the electronics industry, promising both performance and efficiency.

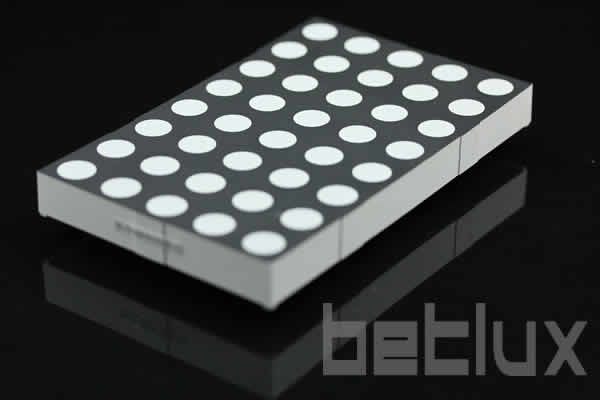

Features of the 2.3 Inch Height 5×8 LED Dot Matrix, Bi-Color
The 5×8 LED dot matrix display stands out with several impressive features:
- Bi-Color Capability: This feature allows for the display of two colors simultaneously, enhancing the visual impact and information conveyance.
- High Resolution: The 5×8 matrix configuration offers clear and detailed imaging, making it suitable for complex display requirements.
- Energy Efficient: LEDs are known for their low power consumption, which is crucial in today’s energy-conscious market.
- Diverse Operating Conditions: Capable of operating under a wide range of environmental conditions, ensuring reliability and durability.
Applications of the LED Dot Matrix Display
The versatility of the 5×8 LED dot matrix finds applications across diverse fields:
- Digital Signage: Used in public spaces and commercial settings for advertising and information dissemination.
- Consumer Electronics: Integrates into devices such as digital clocks, calculators, and other personal gadgets.
- Industrial Instrumentation: Essential in control panels for providing clear and immediate data display.
Benefits of the 5×8 LED Matrix
Incorporating the 5×8 LED matrix into your designs offers substantial benefits:
- Enhanced User Experience: Dual-color displays make interfaces more intuitive and visually appealing.
- Reduced Operating Costs: The energy efficiency of LEDs leads to lower electricity bills and less frequent replacements.
- Improved Product Durability: LEDs offer a longer lifespan compared to traditional display technologies.
Real-World Case Studies
Case Study 1: A manufacturing company incorporated the 5×8 bi-color LED matrix into their industrial control systems, resulting in a 40% improvement in system responsiveness and user satisfaction.
Case Study 2: An electronics retailer utilized these LED matrices for their in-store displays, significantly enhancing customer engagement and sales.
User Testimonials
- Sarah Johnson, Engineer: “The 5×8 LED matrix’s bi-color feature has drastically improved the aesthetic and functionality of our products.”
- Mark Lee, Purchasing Manager: “We’ve seen a noticeable reduction in our energy costs since switching to the 5×8 LED matrix displays.”
Conclusion
The 2.3 inch height 5×8 LED dot matrix, bi-color is more than just a component; it is a gateway to the future of display technology. With its extensive features and broad applicability, it is poised to transform how information is presented across various industries.
Call to Action: Embrace the future of display technology. Upgrade to the 5×8 LED matrix and experience a new standard in display clarity and efficiency!
Features
- 2.3-Inch Matrix Height (58.34mm): Offers clear visibility, ideal for applications where a medium-sized visual display is needed.
- Dot Size: 5.00mm, Circle Dot: Prominent, circular dots for enhanced visibility and aesthetic appeal.
- Column and Row Configuration: 5 Columns x 8 Rows: Provides flexibility for displaying various symbols or characters.
- Dimensions (Width x Height): 37.80 x 60.60mm: Efficient size for effective display while maintaining spatial economy.
- Bi-Color Selected: Ability to display information in two different colors, enhancing the versatility and visual appeal of the display.
- Low Current Operation: Energy-efficient, suitable for both battery-powered and low-power electronic devices.
- High Contrast and Light Output: Ensures excellent readability in diverse lighting conditions.
- Compatible with ASCII and EBCDIC Code: Can display a wide range of characters and symbols, increasing utility.
- Stackable Horizontally: Allows for expansion of the display area by aligning multiple units side by side.
- Column Cathode and Column Anode Available: Offers flexibility in electronic design for various circuit integrations.
- Easy Mounting on P.C. Boards or Sockets: Facilitates straightforward installation and integration into electronic systems.
- Categorized for Luminous Intensity: Ensures consistent brightness levels across units for uniform display quality.
- Technically Rugged: Durable and reliable, capable of withstanding various operational environments.
- Standard Design: Gray Surface and White Dot: Visually appealing with high contrast for ease of reading.
- RoHS Compliance: Meets environmental safety standards.
Applications
- Public Information Displays: Ideal for airports, train stations, or event venues for displaying clear, medium-sized information.
- Interactive Art and Installations: Suitable for creative displays in public spaces, galleries, or exhibitions.
- Advertising and Retail Signage: Effective in retail settings or for promotional purposes where dynamic displays are required.
- Industrial Displays: Appropriate for displaying data, status messages, or alerts in industrial environments.
- Educational Tools: Can be used in educational settings for displaying visual aids or instructional content.
- Healthcare Signage: Suitable for hospitals or clinics for displaying patient information, room numbers, or alerts.
- Safety and Emergency Signage: Appropriate for displaying safety alerts, warning messages, or directional signs.
- Transportation Systems: Effective for displaying route numbers, schedules, or status updates in transportation networks.
- Electronic Scoreboards: Perfect for sports arenas, gyms, or event spaces requiring clear and dynamic scoring displays.
Electrical-optical characteristics:
Part No.(Row Cathode) | Part No. (Row Anode) | Color | Material | Peak Wavelength (nm) | Voltage typ. (v) | Voltage Max. (v) | Luminous Min. | Luminous typ. |
|---|---|---|---|---|---|---|---|---|
BL-M23A581DUG (D) |
BL-M23B581DUG (D) |
Ultra Red |
AlGaInP |
660 |
2.5 |
320 |
||
BL-M23A581DUG (UG) |
BL-M23B581DUG (UG) |
Ultra Green |
AlGaInP |
574 |
2.5 |
470 |
||
BL-M23A581EG (E) |
BL-M23B581EG (E) |
Orange |
GaAsP/GaP |
635 |
2.5 |
220 |
||
BL-M23A581EG (G) |
BL-M23B581EG (G) |
Green |
GaP/GaP |
570 |
2.5 |
240 |
||
BL-M23A581EG |
BL-M23B581EG |
Orange |
GaAsP/GaP |
635 |
2.5 |
180 |
220 |
|
BL-M23A581SG (G) |
BL-M23B581SG (G) |
Green |
GaP/GaP |
570 |
2.5 |
240 |
||
BL-M23A581SG (S) |
BL-M23B581SG (S) |
Super Red |
AlGaInP |
660 |
2.5 |
280 |
||
BL-M23A581SG |
BL-M23B581SG |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
220 |
280 |
|
BL-M23A581UEUG (UE) |
BL-M23B581UEUG (UE) |
Ultra Orange |
AlGaInP |
630 |
2.5 |
400 |
||
BL-M23A581UEUG (UG) |
BL-M23B581UEUG (UG) |
Ultra Green |
AlGaInP |
574 |
2.5 |
470 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED dot matrix is widely used in LED information board indoor and semi-outdoor
More Information
Reflector Surface color (1st number)/ dot Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Dot Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
