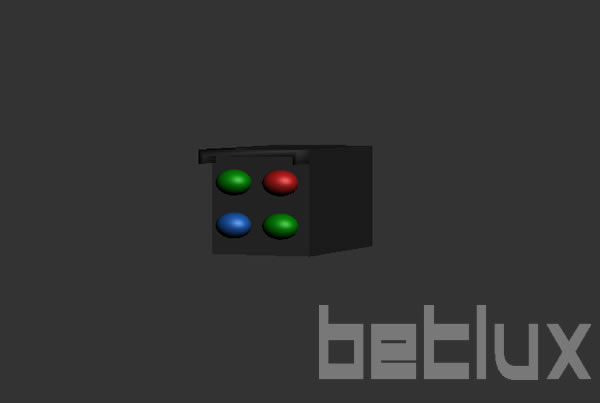

15mm led cluster (1 red 2 green 1 blue, square packed)

Series No:










15mm Lamp cluster (1 red 2 green 1 blue, square packed)
15mm LED cluster

Revolutionizing Compact Lighting: The 15mm LED Cluster

In the dynamic world of electronic components, the 15mm LED cluster (1 red, 2 green, 1 blue, square packed) emerges as a beacon of innovation and versatility. This detailed exploration caters to electronics manufacturers, engineers, purchasers, and administrators keen on understanding the profound impact of this compact lighting solution. From its distinct features and myriad applications to the tangible benefits, real-world case studies, and genuine user testimonials, we dive deep into why the “replaceable led module” and its synonym “led module 12v” are integral to modern electronics.

Introducing the 15mm LED Cluster

At the heart of this technological marvel is its unique composition: 1 red, 2 green, and 1 blue LED packed into a compact 15mm square module. This configuration not only ensures a broad spectrum of colors but also exemplifies efficiency and adaptability. Synonymous with flexibility, such as the “led matrix module,” this LED cluster is designed for seamless integration across various applications, embodying the pinnacle of replaceable and customizable lighting solutions.

Applications: A Spectrum of Possibilities

The 15mm LED cluster shines in its ability to adapt to numerous settings, from sophisticated electronic devices to decorative and signaling applications. Its compact size and color versatility make it a prime candidate for mobile devices, wearable technology, small-scale displays, and intricate lighting systems, showcasing the synonymous functionality with “led 12v module” in providing efficient, low-voltage operation.

Benefits: Illuminating Advantages

Adopting this LED cluster brings forth a myriad of benefits: significant energy savings, longer lifespan compared to traditional lighting solutions, and enhanced color rendering for more vivid and accurate displays. Its replaceable nature ensures a sustainable and cost-effective approach to lighting, allowing easy upgrades or replacements as technology evolves or needs change.

Case Studies: Lighting the Way

Real-world implementations of the 15mm LED cluster illustrate its effectiveness and versatility. From enhancing the readability of small displays in sunlight to creating visually striking wearable technology that stands out, these case studies demonstrate the cluster’s role in pushing the boundaries of what’s possible with compact lighting solutions.

User Testimonials: From Those Who Know Best

The accolades from electronics professionals who have integrated the 15mm LED cluster into their projects are a testament to its value. Engineers commend its ease of integration and performance reliability, while purchasers highlight the cost-effectiveness and the positive reception from end-users, further cementing its status as a preferred choice among industry insiders.

Conclusion: A Bright Future Ahead

The 15mm LED cluster represents a significant stride forward in the realm of compact, efficient lighting. Its blend of versatility, efficiency, and color fidelity makes it an indispensable component for the future of electronics manufacturing. For those looking to innovate or enhance their products, this LED cluster offers a gateway to new possibilities.

Call to Action: Lead with Innovation

Embrace the future of compact and efficient lighting with the 15mm LED cluster. Whether you’re looking to push the boundaries of technology or seeking to refine your products with superior lighting solutions, the time to act is now. Explore the potential of this LED cluster and illuminate your path to innovation today.

15mm led cluster (1 red 2 green 1 blue, square packed)
15mm led cluster (1 red 2 green 1 blue, square packed)


  • Square Shape: Compact and uniform design, suitable for a variety of applications.
  • Dimensions: Each LED cluster measures 15.00mm x 15.00mm, providing a space-efficient lighting solution.
  • High Visibility: Bright and noticeable, ideal for various display and signaling purposes.
  • Emitting Colors: Includes a combination of red, green, and blue LEDs, offering versatile display options and the ability to create multiple colors.
  • Number of Built-in 5mm LED Lamps: Contains 1 red LED, 2 green LEDs, and 1 blue LED, enhancing visibility and color variety.
  • Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability in various environmental conditions.
  • Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
  • Low Current, Power Savings: Energy-efficient, contributing to lower power consumption and cost savings.
  • Low Maintenance: Requires minimal upkeep due to the durability and reliability of LED technology.
  • Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
  • Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, suitable for high-impact environments.
  • Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide array of colors for diverse lighting needs.
  • RoHS Compliance: Manufactured in compliance with environmental and health safety standards.


  • Outdoor and Indoor Information Boards: Ideal for displaying information in compact spaces like small public areas and transportation systems.
  • Signage and Advertising: Suitable for small signs, labels, and promotional displays where space is limited.
  • Safety and Warning Signals: Can be used for compact traffic signals, emergency signage, and small warning systems.
  • Architectural Lighting: Applicable for both functional and aesthetic lighting in small architectural elements.
  • Event and Stage Lighting: Ideal for small-scale events and performances where decorative and functional lighting is needed.
  • Industrial Indicators: Useful in industrial settings for machinery status indicators, alert systems, and small control panels.
  • Retail Displays: Enhances the visual appeal of retail displays and small storefronts with customizable lighting.
  • Public Art and Installations: Suitable for small public art projects and installations requiring versatile and durable lighting.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram
15mm led cluster (1 red 2 green 1 blue, square packed)

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED Cluster is widely applied in traffic signal, scoreboard sign,etc

Part No of  LED Cluster

Related Information

Applied for:
road signal clusterroad arrow signaloutdoor coreboardoutdoor coreboardoutdoor coreboard


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
