Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:

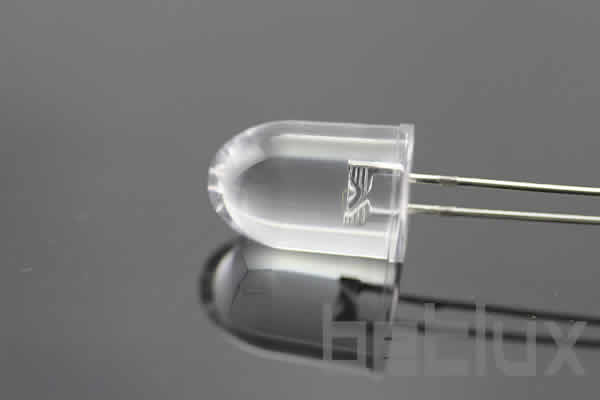

Introduction: The Distinct Advantage of 10mm LED Diodes
10mm LED diodes, with their considerable size and robust light output, are pivotal in pushing the boundaries of innovation in lighting solutions. Whether it’s the versatile “led rgb 10mm,” offering a spectrum of colors in a single unit, or the precise “led 10mm red” for specific applications, these LEDs are integral to modern electronic designs.
Key Features of 10mm LED Diodes
- Versatility in Colors: From mono to “rgb 10mm led” variants, these LEDs provide designers with a broad palette for creative expression.
- Enhanced Brightness: Their larger size allows for greater luminous intensity, making them ideal for high visibility applications.
- Durability and Efficiency: 10mm LEDs are not only long-lasting but also offer superior energy efficiency compared to smaller counterparts.
- Ease of Integration: Their design facilitates easy incorporation into electronic circuits and PCBs, allowing for versatile application across devices.
Expanding Applications: From Concept to Creation
The applications of 10mm LED diodes are as varied as they are innovative, ranging from consumer electronics that require bright, clear indicators to large-scale installations where visibility from a distance is crucial. Their use in decorative lighting, automotive, signage, and even in medical devices underscores the wide-reaching impact of these components in the electronics field.
Benefits: Illuminating the Advantages
Adopting 10mm LED diodes brings numerous advantages, including enhanced product performance, energy savings, and environmental benefits. Their ability to emit bright light in various colors, including “led rgb 10mm” and “bi-color led,” enables designers to achieve precise aesthetic and functional outcomes.
Case Studies: Bright Ideas in Action
This section showcases real-world applications of 10mm LED diodes, highlighting innovative projects that leverage their unique properties. From enhancing user interfaces to creating immersive environmental installations, these case studies demonstrate the versatility and impact of 10mm LEDs.
Voices of Innovation: User Testimonials
Testimonials from professionals in the electronics sector who have utilized 10mm LEDs in their projects provide insights into their practical benefits. Feedback often focuses on the improved visual impact, efficiency, and the creative possibilities unlocked by these powerful LEDs.
Conclusion: Lighting the Path to Innovation with 10mm LED Diodes
The exploration of 10mm LED diodes, particularly the “led rgb 10mm” and “bi-color led” variants, reveals their critical role in advancing electronic design and lighting technology. As the industry continues to evolve, the versatility and performance of these LEDs ensure they remain at the forefront of innovation, illuminating the way forward for electronic applications.
Call to Action
For those at the cutting edge of electronics design and manufacturing, incorporating 10mm LEDs into your projects represents a strategic investment in efficiency, versatility, and innovation. Discover the potential of these impactful components and bring unparalleled brilliance to your designs.
Features
- 10mm Size: The larger size of these LEDs makes them more visible and impactful compared to smaller LEDs. This size is especially useful in applications where visibility from a distance is important.
- Brightness: Due to their larger size, 10mm LEDs can often house a more powerful light source, making them brighter than smaller LEDs.
- Variety of Colors: These LEDs are available in a wide range of colors, including standard colors like red, green, blue, yellow, and white, as well as more specialized colors.
- Viewing Angles: Like other LEDs, 10mm LEDs come with various viewing angles, making them suitable for diverse applications.
- Lens Options: They can be available with different lens types, such as diffused, which provides a softer light, or water-clear for a more intense and focused beam.
- IC Compatibility and Low Current Operation: These LEDs can be designed to be compatible with integrated circuits and typically have a low current requirement, making them energy efficient.
- RoHS Compliance: 10mm LED diodes comply with the Restriction of Hazardous Substances Directive, meaning they are manufactured without the use of certain hazardous materials, making them safer for the environment and human health.
Applications
- Signage and Displays: Used in large display boards, advertising signs, or informational signs due to their visibility and brightness.
- Decorative Lighting: Ideal for decorative purposes in architectural lighting, events, and festivals.
- Indicator Lamps: Suitable for use as indicator lights in various machines, electronic devices, and control panels where larger indicators are necessary.
- Automotive Lighting: Can be used in custom automotive lighting applications, both for interior and exterior use.
- DIY Projects: Popular in DIY electronics and hobbyist projects for creating eye-catching and visible light displays.
- Traffic Signals and Safety Equipment: Their size and brightness make them suitable for traffic lights, safety signs, and emergency lighting.
- Educational and Scientific Projects: Used in educational kits and scientific projects due to their ease of use and visibility.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L102BC |
Blue |
InGaN |
430 |
Water Clear |
4.2 |
500 |
1000 |
15 |
|
BL-L102BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
1000 |
5000 |
15 |
|
BL-L102LRC |
Super Red |
AlGaAs,DH |
660 |
Water Clear |
2.2 |
350 |
800 |
15 |
|
BL-L102PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
1500 |
6000 |
15 |
|
BL-L102SRC |
Hi Red |
AlGaAs,SH |
660 |
Water Clear |
2.2 |
150 |
350 |
15 |
|
BL-L102UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
1000 |
3000 |
15 |
|
BL-L102UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
800 |
1800 |
15 |
|
BL-L102UGC |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
300 |
800 |
15 |
|
BL-L102URC |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
800 |
1200 |
15 |
|
BL-L102UWC |
Ultra White |
InGaN |
- |
Water Clear |
4.2 |
5000 |
10000 |
15 |
|
BL-L102UYC |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
600 |
1500 |
15 |
|
BL-L102VC |
UV |
InGaN |
405 |
Water Clear |
4.2 |
80 |
200 |
15 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
