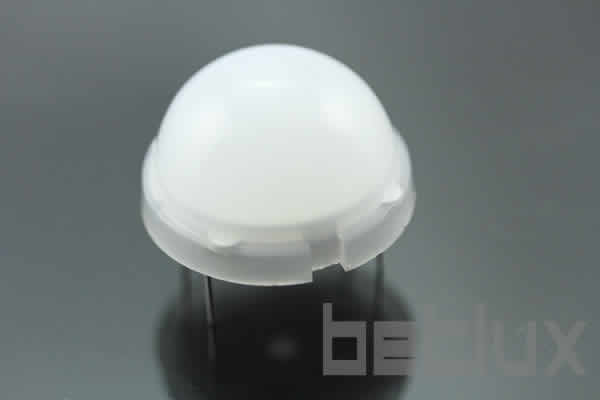

20mm Circle single color LED light bar display series
Illuminating Innovation: The Power of the 20mm LED Light Bar Graph
In the dynamic world of electronics, the 20mm LED light bar graph stands out as a beacon of innovation and versatility. Designed to cater to the specific needs of electronics manufacturer engineers, purchasers, and administrators, this circular, 20mm big LED light bar is revolutionizing the way we think about lighting and display solutions. This comprehensive article will delve into the features, applications, and benefits of the 20mm LED light bar graph, enriched with case studies and user testimonials to provide a professional insight into its transformative impact on the electronics industry.
Shining a Light on the Features
The 20mm LED light bar graph, also known as a 20mm LED, is celebrated for its compact size yet powerful illumination capabilities. This innovative lighting solution offers unparalleled brightness and clarity, making it an ideal choice for a wide array of applications. Its circular design not only ensures a uniform distribution of light but also adds an aesthetic appeal to any project it graces.
Applications: Where Bright Ideas Come to Life
From industrial control panels to consumer electronics, the versatility of the 20mm LED light bar graph knows no bounds. Its applications include, but are not limited to:
- Consumer Electronics: Enhancing the user interface of devices with bright, clear indicators.
- Automotive Dashboard: Improving visibility and readability for drivers.
- Industrial Equipment: Offering reliable, long-lasting indicators for machinery.
Benefits Beyond Brightness
The adoption of the 20mm LED light bar graph in electronic designs brings with it a plethora of advantages:
- Energy Efficiency: Its LED technology consumes less power, reducing overall energy costs.
- Durability: Built to last, it withstands harsh conditions without compromising performance.
- Design Flexibility: Its compact size and circular form factor allow for creative design integrations.
Illuminating Success: Case Studies and Testimonials
The impact of the 20mm LED light bar graph extends beyond its specifications, as illustrated by numerous case studies. For instance, a leading automotive manufacturer integrated this technology into their dashboard design, significantly enhancing the visual appeal and functionality. User testimonials further validate its effectiveness, with one engineer lauding the ease of integration and the noticeable improvement in operational efficiency.
Conclusion: Lighting the Way Forward
The 20mm LED light bar graph represents a significant leap forward in lighting technology, offering a blend of performance, efficiency, and aesthetics. As the electronics industry continues to evolve, the adoption of such innovative solutions ensures that projects not only meet but exceed current standards. Whether you are an engineer, purchaser, or administrator, incorporating the 20mm LED light bar graph into your projects is a bright idea that promises to illuminate the path to success.
Call to Action:
Embrace the future of lighting in your electronic projects with the 20mm LED light bar graph. Illuminate your innovations with efficiency and style today.
Features
- Display Type: LED light bar with a circular display.
- Outer Diameter: Approximately 20mm, offering a compact and versatile size for various applications.
- Single Color Display: The series likely includes units that emit a single color, which could range from standard colors like red, green, blue, to more specific hues depending on the model.
- Uniform Light Emitting Area: Ensures consistent and even lighting across the display.
- Low Current Operation: Energy-efficient design leading to reduced power consumption.
- Wide Viewing Angle: Allows the display to be easily visible from various angles.
- RoHS Compliance: Ensures that the manufacturing process and materials used are free from certain hazardous substances, making it environmentally friendly and safe for use.
- Easily Mounted on P.C. Boards: Designed for easy integration into electronic systems.
- Flush Mountable: Can be installed to align seamlessly with surfaces, providing a clean and integrated look.
- Excellent On/Off Contrast: Enhances visibility and readability.
- Categorized for Luminous Intensity: Uniform brightness levels across different units.
Applications
- Indicator Lights: Suitable for use as indicator lights in various electronic devices, machinery, or equipment.
- Control Panels: Ideal for control panels in various industrial or consumer applications.
- Decorative Lighting: Can be used in decorative lighting setups due to its aesthetic appeal.
- Consumer Electronics: Applicable in consumer electronics for display or status indication.
- Instrumentation Displays: Useful in instrumentation displays where a circular and compact LED is required.
- Safety and Warning Signs: Appropriate for safety signals or warning indicators in industrial settings.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED light bar is widely applied in instrument show box, elevator,etc
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
