1 watt LED | high power LED | Ultra Pure Green

Article No:

BL-HP7EPGC

Color:

Ultra Pure Green

Weight:(g/pcs)

Dimension:(mm)

x x

Inquiry

any question?
Related Article List
Filters Sort results
Reset Apply
Article No
color
material
wavelength
apperance
v_typ
v_max
luminous_min
luminous_typ
degree
BL-HP7EBGC
Ultra Bluish Green
505
Water Clear
3.8
40
50
120
BL-HP7EPGC
Ultra Pure Green
525
Water Clear
3.8
50
60
120
BL-HP7EUBC
Ultra Blue
470
Water Clear
3.8
10
15
120
BL-HP7EUEC
Ultra Orange
630
Water Clear
2.75
35
45
120
BL-HP7EUW2C
Ultra Warm White
3200k
Water Clear
3.8
50
70
120
BL-HP7EUWC
Ultra White
6000k
Water Clear
3.8
70
90
120
BL-HP7EUYC
Ultra Yellow
590
Water Clear
2.75
35
45
120
Product Series information
Filters Sort results
Reset Apply
Product Series
Series No:BL-HP7E
Specification Download:
Dimension
7.4 × 6.4 × 1.6 mm
Description:
___________________________________________________________________________________________________________________________________________________
Introduction: Lighting Efficiency Redefined by 1 Watt LED The 1 watt LED, a marvel in the high power LED category, epitomizes efficiency and potency in a diminutive package. Widely acclaimed for its minimal energy requirements and significant light output, the 1w LED is reshaping expectations in the lighting industry. Features That Shine Through
  • Energy Efficiency: The hallmark of 1w LEDs, offering substantial light output while consuming minimal power.
  • Compact Size: Their small footprint enables integration into various designs, from intricate electronics to expansive lighting systems.
  • Durability: Known for their longevity, these LEDs withstand extensive use, reducing the need for frequent replacements.
  • Versatility: The broad spectrum of applications showcases their adaptability, from residential lighting to complex industrial setups.
A Spectrum of Applications The utility of 1 watt LEDs extends across domains, illustrating their flexibility. They are pivotal in task lighting, decorative applications, and as vital components in electronic devices, where precision lighting is paramount. The Bright Side of 1w LEDs Opting for 1 watt LEDs brings a plethora of advantages, including enhanced energy savings, a lower carbon footprint, and superior longevity. These benefits underscore the LEDs' role in promoting sustainable and cost-effective lighting solutions. Illuminating Success: Case Studies This segment highlights the transformative effect of 1 watt LEDs in various industries, from revolutionizing home lighting to pioneering advancements in medical instrumentation, demonstrating their broad impact and utility. Echoes of Innovation: User Testimonials Testimonials from professionals who have embraced 1 watt LEDs offer insights into their effectiveness and versatility. Feedback emphasizes the improved performance, energy efficiency, and innovative applications unlocked by these high power LEDs, cementing their esteemed status in the lighting domain. Conclusion: Embracing a Brighter Future with 1 Watt LED Technology The exploration of 1 watt LEDs in high power applications paints a picture of a future where efficient, reliable, and versatile lighting solutions are paramount. As technology advances, the pivotal role of these LEDs in spearheading sustainable, innovative lighting designs becomes increasingly clear. Call to Action For those at the forefront of electronics manufacturing and design, incorporating 1 watt LEDs into your projects is a strategic move towards embracing efficient, innovative, and sustainable lighting solutions. Explore the potential of these compact yet powerful LEDs and light up your initiatives with unparalleled brilliance and efficiency.
1 watt LED high power LED
1 watt LED high power LED

Features

  • 1W Power Rating: These LEDs are designed to operate at 1 watt, striking a balance between energy efficiency and sufficient brightness for a range of lighting needs.
  • Suitability for Illumination and Decorative Lighting: Their brightness level makes them ideal for both functional lighting in lamps and for decorative purposes.
  • Long Service Life: Offering up to 50,000 hours of operation, these LEDs are built for longevity, reducing the need for frequent replacements.
  • Low Luminosity Loss: Throughout their lifespan, these LEDs maintain their brightness, ensuring consistent light output.
  • Variety of Emitting Colors: Available in multiple colors, they provide flexibility for different design and aesthetic requirements.
  • Working Current Range: Designed to operate efficiently at a current range of 200-350mA, making them compatible with a variety of power supplies and drivers.
  • Optional Heat Sink: Available with or without a heat sink. The inclusion of a heat sink is beneficial for managing heat dissipation, crucial for maintaining performance and longevity, especially in high-power applications.

Applications

  • General Lighting: Ideal for residential and commercial lighting fixtures, providing efficient and long-lasting illumination.
  • Architectural and Decorative Lighting: Their color variety and compact size make them suitable for accent lighting, mood lighting, and creating ambiance in spaces.
  • Outdoor Lighting: Can be used in landscape lighting, garden lights, pathway illumination, and outdoor decorative installations.
  • Display Lighting: Suitable for use in display cases, retail lighting, and exhibition spaces where consistent and bright illumination is needed.
  • Specialty Lighting: Employed in task lighting, studio lighting, or areas requiring focused, intense lighting.
  • Automotive Lighting: Utilized in automotive lighting systems for interior and exterior applications.
  • DIY Projects and Custom Lighting Solutions: Popular among hobbyists and for custom lighting projects due to their ease of use and versatility.
___________________________________________________________________________________________________________________________________________________

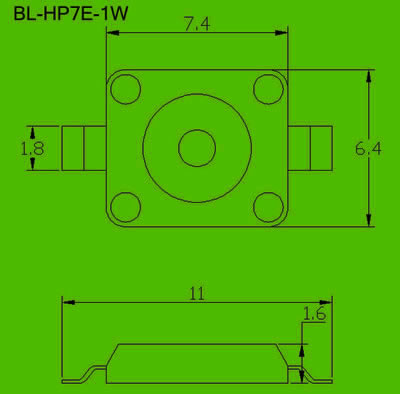

Dimension and Circuit Drawing:
Related Information

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
