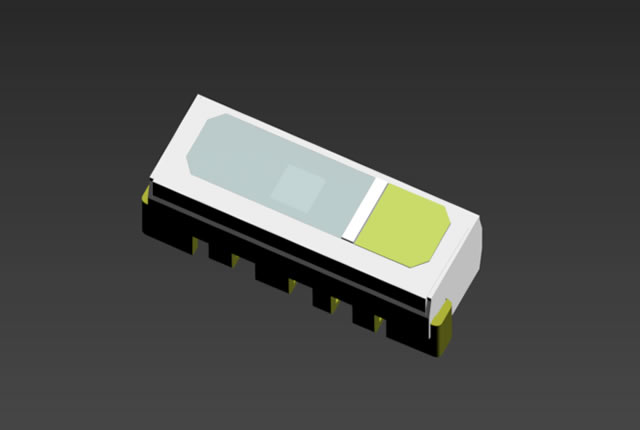

SMD LED 4818 SIDE VIEW, RGBW, IC built
Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Revolutionizing Lighting with SMD LED 4818 SIDE VIEW, RGBW with IC Built-In
In the realm of lighting technology, the SMD LED 4818 SIDE VIEW, RGBW with IC built-in stands as a testament to innovation and versatility. This powerful component integrates RGBW capabilities, providing a spectrum of colors including red, green, blue, and white, along with an integrated circuit (IC) that enhances functionality and ease of use. Aimed at electronics manufacturers, engineers, purchasers, and administrators, this detailed exploration highlights the diode’s features, applications, and the numerous advantages it brings to various sectors.
Features of the SMD LED 4818 SIDE VIEW, RGBW, IC Built
The SMD LED 4818 SIDE VIEW, RGBW, IC built is a cutting-edge solution in LED technology, characterized by its side-view design and integrated RGBW diode for LED lights. Its built-in IC facilitates easier control and integration into complex lighting systems.
Key Features Include:
- Integrated RGBW Color Range: Offers vibrant, multi-color lighting options plus a pure white light for illumination and color mixing.
- Compact Design: Ideal for applications requiring low-profile components with high-density mounting.
- Enhanced Control with Built-In IC: Simplifies circuit design and enhances performance with better color consistency and brightness control.
Applications Across Industries
The versatility of the SMD LED 4818 SIDE VIEW, RGBW, IC built makes it ideal for a wide array of applications:
- Consumer Electronics: Utilized in smartphones, tablets, and home electronics for display backlighting and mood lighting.
- Automotive Lighting: Enhances vehicle aesthetics and functionality in dashboards, ambient lighting, and external indicators.
- Architectural Lighting: Perfect for creating dynamic lighting effects in both commercial and residential spaces.
Benefits of Using SMD LED 4818 SIDE VIEW, RGBW
Incorporating the SMD LED 4818 offers significant advantages:
- Energy Efficiency: Consumes less power compared to traditional lighting solutions, reducing overall energy costs.
- Longevity and Durability: Designed to last longer than conventional bulbs, minimizing replacement frequency.
- Design Flexibility: The small size and integrated control allow for innovative design possibilities in tight spaces.
Real-World Impact: Case Studies
Several case studies illustrate the effectiveness of the SMD LED 4818:
- Smart Home Technology Provider: Integrated these LEDs into home automation systems, enhancing user experience with customizable lighting.
- Automotive Manufacturer: Used these LEDs for interior lighting, significantly improving the aesthetic appeal and functionality of vehicle cabins.
Testimonials from Industry Leaders
User testimonials reinforce the practical benefits of the SMD LED 4818:
- Product Developer in Consumer Electronics: “The RGBW capabilities of the SMD LED 4818 have allowed us to push the boundaries of product design, offering our customers unparalleled customization.”
- Lighting Engineer: “The built-in IC has simplified our development process, enabling quicker integration and more reliable performance.”
Conclusion: Lighting the Way Forward with SMD LED 4818
The SMD LED 4818 SIDE VIEW, RGBW with IC built represents a pinnacle in LED technology, providing unmatched versatility and efficiency. Its impact on various industries demonstrates its value, making it a key component for any forward-thinking electronics project.
Call to Action: Elevate your projects with the advanced capabilities of the SMD LED 4818. Contact us today to discover how this innovative technology can transform your applications.

Features: SMD LED 4818 SIDE VIEW, RGBW, IC Built
- Compact size: 4.8 x 1.8mm SMD, side-emitting
- RGBW type with built-in IC for versatile color options
- Ultra brightness for high visibility
- Compatible with automatic placement equipment
- Wide viewing angle for flexible applications
- Ideal for backlighting and indicator purposes
- Package includes 2000 pieces per reel
- RoHS Compliance
Application:
- Dynamic and colorful backlighting for electronic displays
- Indicator lights with customizable RGBW colors
- Decorative lighting in various consumer electronics
- Architectural and accent lighting applications
- Automotive interior and exterior lighting
- Entertainment and stage lighting
- Lighted signage and advertising displays
- Mood lighting for residential and commercial spaces
Electrical-optical characteristics:
Article No | color | material | wavelength | apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
---|---|---|---|---|---|---|---|---|---|
BL-LS4818A0S4RGBW |
Ultra Red |
AlGaInP |
630 |
Water Clear |
2.5 |
150 |
220 |
120 |
Package configuration & Internal circuit diagram
Partno description:
More Information
Lens Color:
Code | D | T | C | W | E | |
Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
Storage Temperature T STG | -40 to +85 | °C | |||||||||||
Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C |
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. |
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
