Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Harnessing the Power of Piranha LEDs: A Game-Changer in LED Technology
In the realm of LED lighting, the power Piranha LED emerges as a forefront innovation, blending high-intensity illumination with unmatched efficiency. This article explores the distinct features, diverse applications, and significant benefits of power Piranha LEDs, often referred to in the industry as “LED Licht” or “Piranha LED light.” Through detailed case studies and authentic user testimonials, we aim to provide a comprehensive insight into how these powerful LEDs are revolutionizing the field for electronics manufacturers, engineers, purchasers, and administrators.
Introduction to Power Piranha LEDs
Power Piranha LEDs are renowned for their superior brightness and energy efficiency, setting them apart from conventional LED diodes. These LEDs, synonymous with high-performance “LED Licht” or “TH LED,” are designed to deliver intense light output while maintaining low energy consumption, making them ideal for a wide range of applications.
Key Features and Applications
Enhanced Brightness: Power Piranha LEDs are characterized by their intense luminosity, which surpasses that of standard LEDs. This feature is particularly beneficial for outdoor lighting, automotive applications, and any setting where visibility is paramount.
Durability: These LEDs are built to last, with a robust design that withstands harsh environments and prolonged use. This durability makes them suitable for industrial applications and outdoor lighting solutions where reliability is crucial.
Energy Efficiency: Despite their high output, power Piranha LEDs consume significantly less energy than traditional lighting solutions, contributing to environmental sustainability and cost savings over time.
The Benefits of Using Power Piranha LEDs
Cost-Effective: The energy efficiency of power Piranha LEDs leads to lower electricity costs, making them a cost-effective solution for both residential and commercial applications.
Versatile: Their compact size and high brightness make power Piranha LEDs adaptable to a wide range of applications, from decorative lighting to safety signals.
Real-World Impact: Case Studies and Testimonials
Case Studies: One notable case study involves a citywide initiative to replace traditional streetlights with power Piranha LEDs, resulting in significant energy savings and improved night-time visibility.
User Testimonials: Engineers and product developers rave about the ease of integration and the performance enhancement that power Piranha LEDs bring to their projects, citing specific instances where these LEDs outperformed expectations in both brightness and durability.
Conclusion: Embracing the Future with Power Piranha LEDs
Power Piranha LEDs represent a significant leap forward in LED technology, offering a blend of high performance, energy efficiency, and versatility. As the demand for sustainable and high-quality lighting solutions grows, the adoption of power Piranha LEDs is set to increase, underscoring their value in modern electronic applications.
Call to Action: Elevate your lighting solutions with the unparalleled performance of power Piranha LEDs. Experience the difference in brightness, efficiency, and durability today.
Features

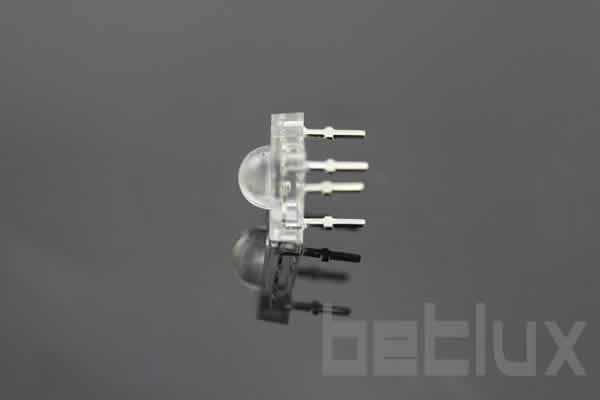

- 5mm Round Head, High Power: The 5mm round head design provides a focused yet bright light output, and the high power rating indicates a higher intensity of light compared to standard LEDs.
- Compact Dimensions: With dimensions of 7.62 x 7.62 x 4.0 mm, these LEDs are small and versatile, making them suitable for a variety of applications where space is limited.
- Super Flux LED Lamp: Known for their high brightness and low power consumption, Super Flux LEDs are efficient and reliable.
- Wide Viewing Angles: This feature allows for the light to be visible from different angles, making these LEDs ideal for applications where visibility is crucial from various perspectives.
- Ideal for Backlight and Indicator: Their high brightness and wide viewing angles make them perfect for backlighting in displays and control panels, as well as for use as indicators in electronic devices.
- RoHS Compliance: These LEDs comply with the Restriction of Hazardous Substances Directive, ensuring they are manufactured without certain hazardous materials, which is beneficial for environmental and health safety.
Applications
- Backlighting Applications: Commonly used for backlighting LCD displays, keypads, and control panels, providing even and effective illumination.
- Indicator Lights: Ideal for use as indicator lights in various electronic devices, automotive dashboards, and machinery, offering clear visibility and reliability.
- Decorative Lighting: Suitable for decorative and ambient lighting due to their bright light output and aesthetic appeal.
- Signage and Display Boards: Employed in signage, billboards, and display boards for their durability, high visibility, and wide viewing angle.
- Consumer Electronics: Incorporated into consumer electronics as status indicators, backlighting screens, and buttons.
- Automotive Lighting: Applicable in automotive lighting systems, including interior and exterior lights, dashboard illumination, and signal lights.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-FL7615BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
2400 |
12000 |
100 |
|
BL-FL7615PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
3000 |
15000 |
100 |
|
BL-FL7615UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
2400 |
6000 |
100 |
|
BL-FL7615UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
2500 |
4500 |
100 |
|
BL-FL7615UGC |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
600 |
2100 |
100 |
|
BL-FL7615URC |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
1000 |
3000 |
100 |
|
BL-FL7615UWC |
Ultra White |
InGaN |
- |
Water Clear |
4.2 |
3000 |
12000 |
100 |
|
BL-FL7615UYC |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
2000 |
4200 |
100 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
