In the compact world of electronic components, the Miniature Device LED, 1.8 mm Round Tower represents a significant leap forward in lighting technology. Known for its small size, this LED emitter is a powerhouse in various high-tech applications. This article delves into the features, applications, benefits, and real-world implications of these tiny yet powerful LEDs, tailored for professionals like electronics manufacturers, engineers, purchasers, and administrators.
Features of Miniature Device LED, 1.8 mm Round Tower
The Miniature Device LED, 1.8 mm Round Tower, often referred to as an 18mm LED, is designed for precision applications where space is at a premium. Despite its diminutive size, this LED offers excellent brightness and energy efficiency. It is available in various wavelengths, including infrared LEDs and UV LEDs, which are crucial for specific industrial, medical, and technological applications.
Applications of Miniature Device LED
The applications of the 1.8 mm Round Tower LED are diverse and impactful:
- Medical Devices: Used in equipment where precise and reliable light is necessary.
- Wearable Technology: Powers indicators and backlighting in compact devices.
- Communication Devices: Integral in optical communication technologies due to their ability to emit precise light wavelengths, including infrared.
The integration of infrared LEDs makes them particularly valuable in security and surveillance, while UV LEDs are used in applications requiring sterilization or medical analysis.
Benefits of Using Miniature Device LEDs
The use of Miniature Device LEDs offers several advantages:
- Space Efficiency: Their small size allows for integration into increasingly miniaturized electronic devices.
- Energy Efficiency: These LEDs require minimal power, which extends battery life in portable devices.
- Versatility: Capable of emitting various colors and wavelengths, including infrared and ultraviolet, making them suitable for a wide range of applications.
Case Studies: Miniature Device LEDs in Action
A notable case study involves a leading medical device manufacturer that used these LEDs for endoscopic equipment. The 1.8 mm Round Tower LEDs provided the necessary illumination in a compact form factor, greatly enhancing the device’s functionality and reliability.
Another case saw the integration of these LEDs into a consumer electronics product, where they were used to indicate charging status and notifications without adding bulk to the device’s design.
User Testimonials
Feedback from users and industry experts underscores the practicality and efficiency of Miniature Device LEDs. An electronics engineer from a leading consumer electronics firm stated, “The 1.8mm LEDs are crucial in our latest wearable designs, providing high brightness and color accuracy in a tiny package.” A product manager for industrial instrumentation remarked, “We chose these LEDs for their reliability and the precise control they offer in our measurement devices.”
Conclusion: The Versatile Future of Miniature Device LEDs
The Miniature Device LED, 1.8 mm Round Tower, continues to play a pivotal role in the advancement of various high-tech industries. Its ability to meet the demanding requirements of modern electronic applications makes it a cornerstone of innovation in the field.
Call to Action Enhance your electronic projects with the high-performance Miniature Device LED, 1.8 mm Round Tower. Contact us today to explore how these LEDs can revolutionize your product designs!

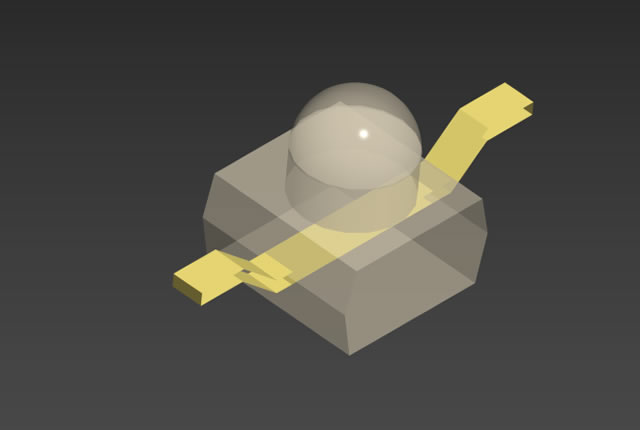

Features: Miniature Device LED, 1.8mm Round Tower
- Miniature design with a 1.8mm round tower shape
- Choice of various viewing angles for flexible applications
- Available in diffused, transparent, and water-clear lens options
- IC compatible, ensuring seamless integration with electronic circuits
- Low current capability for energy-efficient operation
- RoHS Compliance, meeting environmental standards
Application:
- Indicator lights in electronic devices and appliances
- Status indicators on control panels and instruments
- Backlighting for small displays and keypads
- Decorative lighting in miniature applications
- Integration into compact electronic designs
- Visual signaling in consumer electronics
- Low-profile lighting solutions in various devices
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-LM18PGC/TR10 |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.5 |
2500 |
5000 |
20 |
|
BL-LM18PGD/TR10 |
Ultra Pure Green |
InGaN |
525 |
Color Diff. |
4.5 |
2000 |
4000 |
25 |
|
BL-LM18UBC/TR10 |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
1500 |
3000 |
20 |
|
BL-LM18UBD/TR10 |
Ultra Blue |
InGaN |
470 |
Color Diff. |
4.2 |
800 |
2000 |
25 |
|
BL-LM18UEC/TR10 |
Ultra Red |
AlGaInP |
630 |
Water Clear |
2.5 |
1000 |
2200 |
20 |
|
BL-LM18UED/TR10 |
Ultra Red |
AlGaInP |
630 |
Color Diff. |
2.5 |
800 |
2000 |
25 |
|
BL-LM18UGC/TR10 |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
500 |
1000 |
20 |
|
BL-LM18UGD/TR10 |
Ultra Green |
AlGaInP |
574 |
Color Diff. |
2.5 |
300 |
800 |
25 |
|
BL-LM18URC/TR10 |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
500 |
1000 |
20 |
|
BL-LM18URD/TR10 |
Ultra Red |
AlGaAs,DDH |
660 |
Color Diff. |
2.2 |
300 |
800 |
25 |
|
BL-LM18UWC/TR10 |
Ultra White |
InGaN |
/ |
Water Clear |
4.2 |
2000 |
7000 |
20 |
|
BL-LM18UWD/TR10 |
Ultra White |
InGaN |
/ |
Color Diff. |
4.2 |
1500 |
6000 |
25 |
|
BL-LM18UYC/TR10 |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
1800 |
3500 |
20 |
|
BL-LM18UYD/TR10 |
Ultra Yellow |
AlGaInP |
590 |
Color Diff. |
2.5 |
1500 |
3000 |
25 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
