LED light bar(rectangular ,1 bar,70*52mm)
Product Series information
Product Series |
|---|

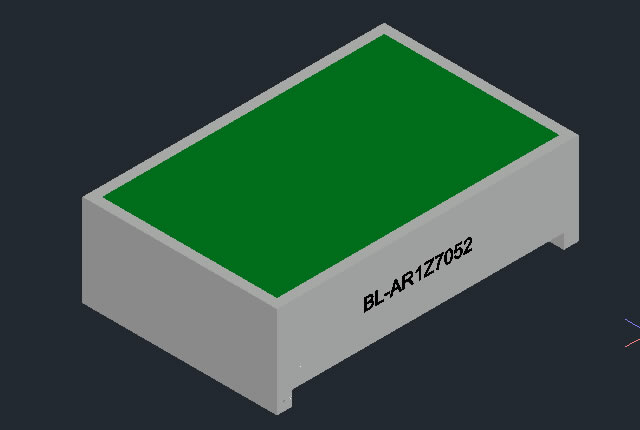

![]() Series No:bl-ar1z7052 Dimension 32 × 22 × 10 mm Description: ___________________________________________________________________________________________________________________________________________________ "Precision Illumination with the 70×52mm Rectangular LED Light Bar" IntroductionThe LED light bar has become a cornerstone of modern display and indicator technology, offering versatility, brightness, and energy efficiency. Among the many variants, the rectangular 1-bar LED light bar (70×52mm) stands out for its superior illumination area, uniform light distribution, and durability. Whether it’s used in industrial control panels, automotive dashboards, or professional-grade instruments, this component embodies reliability and precision. As part of the broader LED bar graph family, this rectangular module is designed to deliver powerful, consistent lighting across wider surfaces. It’s engineered for high visibility, even under bright ambient conditions, making it an ideal choice for engineers and manufacturers in the electronics industry. Additionally, its compatibility with LED bar display systems allows seamless integration into digital interfaces, enhancing readability and operational aesthetics. Features of the Rectangular 70×52mm LED Light BarThe rectangular LED light bar is known for its technical sophistication and high-performance design. Below are the defining features that make this component a preferred solution for modern electronic and industrial systems:
Applications of the LED Light BarThe LED light bar (rectangular 70×52mm) serves a multitude of industrial and consumer applications. Its flexibility, combined with a large illumination area, makes it indispensable in systems where clear, direct visibility is crucial. 1. Industrial Automation PanelsUsed to indicate power status, system errors, and process values. Engineers prefer LED bar displays due to their precision and energy efficiency, reducing downtime caused by unclear signals. 2. Audio and Sound EquipmentIn professional mixers and amplifiers, LED bar graphs provide real-time audio level visualization, ensuring smooth operation in recording and broadcasting environments. 3. Automotive InstrumentationUsed in dashboards, speedometers, and fuel indicators, the rectangular LED light bar enhances visibility while maintaining a sleek design aesthetic. 4. Medical and Laboratory EquipmentIts stable illumination and low power consumption make it suitable for diagnostic devices where precision and long-term reliability are essential. 5. Smart Appliance InterfacesThe LED light bar adds visual elegance and user-friendly feedback for high-end consumer products like kitchen appliances or home automation panels. 6. Security and Surveillance SystemsProvides visual indicators for motion sensors, power lines, and data activity, improving monitoring efficiency. 7. Energy and Power EquipmentIntegrated into control units to display battery levels, voltage conditions, or charge indicators using Bar Graph Arrays for a compact, intuitive interface. Benefits of the 70×52mm LED Light BarThe rectangular LED light bar offers a combination of aesthetic appeal, performance, and functional reliability. Here’s why it’s trusted across various industries:
Case StudiesCase Study 1: Industrial Control Systems (USA)A manufacturing plant integrated the LED light bar into its production line monitoring panels. The 70×52mm rectangular design provided better visibility for process indicators, reducing operator errors by 25%. The uniform brightness also improved readability under strong factory lighting. Case Study 2: Audio Equipment Displays (Germany)A professional audio manufacturer adopted the LED bar graph for level indicators in studio mixers. The large illuminated area offered superior visual feedback for sound engineers, enhancing production accuracy and modernizing the design. Case Study 3: Electric Vehicle Dashboards (Japan)An EV manufacturer implemented the LED bar display for battery status visualization. The rectangular light bar’s consistent brightness and compact design aligned perfectly with the dashboard’s ergonomic layout, improving driver information delivery. User Testimonials“The brightness and stability of these LED light bars are outstanding,” “Highly efficient and durable,” “Sleek and modern appearance with excellent visibility,” Design and Integration TipsWhen incorporating a LED light bar into a circuit or enclosure, engineers should pay attention to performance optimization:
ConclusionThe LED light bar (rectangular, 1 bar, 70×52mm) represents the perfect fusion of precision illumination, compact engineering, and durability. Whether used in industrial, automotive, or consumer applications, its energy efficiency and reliability make it a trusted choice among engineers and manufacturers alike. By offering high brightness, stability, and design adaptability, this LED bar graph continues to redefine how visual indicators enhance system interfaces and product aesthetics. Its robust construction and long lifespan ensure dependable performance even in challenging conditions. For projects requiring consistent brightness and minimal power usage, the LED light bar remains one of the most efficient and adaptable solutions available today.
Features
Applications
___________________________________________________________________________________________________________________________________________________ Dimension and Circuit Drawing: ![]() |
Related Article List
Related Information
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
