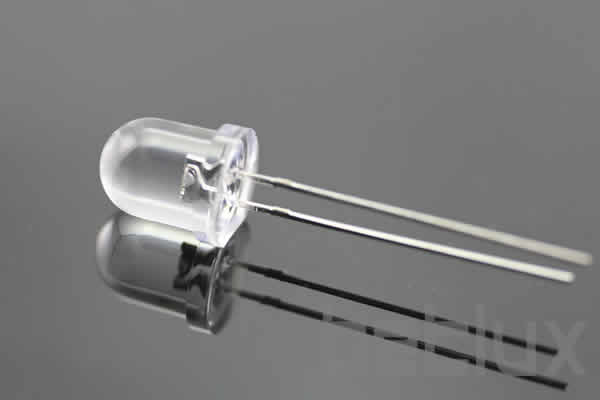

8mm LED diode

Series No:





7.9 x 9.15 x 11







In the rapidly evolving world of electronic components, the 8mm LED diode stands out for its robust design and versatility. Widely recognized for its optimal size and brightness, these LEDs are crucial in various applications ranging from simple indicator lights to complex, high-tech devices. This article delves into the features, applications, benefits, and real-world case studies of 8mm LED diodes, providing valuable insights for electronics manufacturers, engineers, purchasers, and administrators.

Features of 8mm LED Diodes

8mm LED diodes, commonly referred to as 8mm LEDs, are preferred in the electronics industry for their significant luminous intensity and durability. These components are designed to offer superior performance in a compact form factor, making them ideal for space-constrained applications. The diodes are available in various colors, including the specialized ultra violet LED, enhancing their utility across different domains.

Applications of 8mm LED Diodes

The applications of 8mm LED diodes are vast and varied. In automotive electronics, they are used for dashboard lighting and external signal lights, providing clarity and long-lasting performance. In consumer electronics, these LEDs serve as power indicators in devices such as computers and televisions. Additionally, their ultra violet capabilities make them perfect for medical devices and forensic applications, where specific light frequencies are required for diagnostics and analysis.

Benefits of Using 8mm LED Diodes

The benefits of using 8mm LED diodes are numerous:

  • Energy Efficiency: They consume significantly less power compared to traditional lighting solutions, which leads to decreased operational costs.
  • Longevity: These LEDs have a prolonged operational life, reducing the need for frequent replacements and maintenance.
  • High Brightness and Clarity: The intense brightness and clear light output of 8mm LEDs make them an ideal choice for critical applications where clear visibility is paramount.

Case Studies: Real-World Implementations

Several case studies highlight the effectiveness of 8mm LED diodes in real-world applications. For instance, a leading automotive manufacturer incorporated these LEDs into their new model cars’ tail lights, resulting in enhanced visibility and reduced power consumption. Another case involved a tech company that used ultra violet LEDs in their security devices to improve the efficiency of biometric scanning systems.

User Testimonials

Testimonials from users and industry experts further underscore the value of 8mm LED diodes. A senior engineer at a renowned electronics manufacturing company mentioned, “The reliability and performance of 8mm LEDs have significantly optimized our production capabilities.” A purchaser for a medical equipment firm noted, “The specific features of ultra violet LEDs have enabled us to develop advanced diagnostic tools with greater accuracy and lower power usage.”

Conclusion: Embracing 8mm LED Diodes

For professionals in the electronics sector, embracing the advancements in 8mm LED technology is not just about enhancing product features; it’s about paving the way for innovative solutions that meet the dynamic demands of modern technology. The continued development and application of 8mm LEDs are set to revolutionize the industry, offering more efficient, reliable, and cost-effective solutions.

Call to Action Ready to enhance your projects with high-quality 8mm LED diodes? Contact us today to explore our range of products and find the perfect LED solutions for your needs!

8mm LED diode
8mm LED diode


  • 8mm Round LED Lamps: These LEDs have a substantial size with a round shape, providing a significant and noticeable light output.
  • Choice of Various Viewing Angles: Available with different viewing angles to accommodate various requirements, allowing for flexibility in how the light is dispersed and perceived.
  • Lens Options: Offered with different lens types, including diffused (for a softer, more spread-out light), transparent (for a clearer, more direct light), and water clear (for the brightest and most direct light).
  • IC Compatible / Low Current Capability: Designed to be easily integrated with integrated circuits (ICs) and operate on low current, making them energy-efficient and suitable for various electronic applications.
  • RoHS Compliance: Manufactured in line with the Restriction of Hazardous Substances directive, ensuring the product is environmentally friendly and safer for users.


  • General Illumination: Ideal for various lighting applications where a noticeable and robust light source is needed.
  • Indicator Lights: Suitable for use as indicator lights in electronic devices, machinery, and appliances, providing clear and bright signaling.
  • Decorative Lighting: Can be used in architectural designs, event setups, and artistic installations for aesthetic enhancement.
  • Automotive Lighting: Appropriate for use in automotive applications, both for interior (dashboard, controls) and exterior (signal, brake lights) lighting.
  • Consumer Electronics: Can be incorporated into personal electronic devices for status indicators or aesthetic purposes.
  • Educational and Hobbyist Projects: Often used in DIY electronics and educational projects due to their versatility and ease of use.
  • Safety and Warning Signals: Suitable for safety signs and emergency lighting systems where high visibility is essential.
  • Entertainment and Stage Lighting: Ideal for entertainment and stage lighting setups, offering vivid illumination and various effects with different lens types.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Water Clear
Ultra Bluish Green
Water Clear
Super Red
Water Clear
Ultra Pure Green
Water Clear
Hi Red
Water Clear
Ultra Blue
Water Clear
Ultra Orange
Water Clear
Ultra Green
Water Clear
Ultra Red
Water Clear
Ultra White
Water Clear
Ultra Yellow
Water Clear
Water Clear
Package configuration & Internal circuit diagram
8mm LED diode

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light


The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
