Description:
Introduction

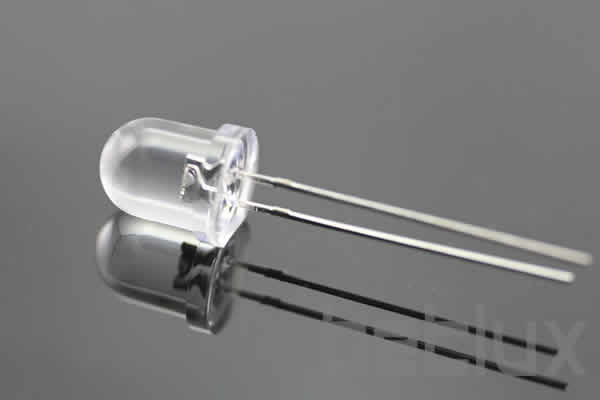

In the realm of LED technology, the 8mm bi-color LED diode, 2 pin stands as a testament to versatility and innovation. Commonly referred to among professionals as 8mm LEDs, these components offer dual-color outputs in a single package, making them a popular choice for various applications requiring dynamic lighting solutions. This article explores the distinctive features, widespread applications, benefits, and real-life implementations of these LEDs, tailored specifically for electronics manufacturers, engineers, purchasers, and administrators.
Features of 8mm Bi-Color LED Diodes
The 8mm bi-color LED diode, 2 pin is designed to emit two distinct colors from a single point, reducing the need for multiple LEDs and simplifying the design process. These LEDs are compact yet powerful, capable of producing vibrant colors with high brightness and clarity. The incorporation of two pins facilitates easier configuration and integration into electronic circuits, enhancing their appeal in complex designs.
Applications of 8mm Bi-Color LED Diodes
8mm bi-color LED diodes are extensively used across several sectors:
- Consumer Electronics: In devices like power status indicators and buttons where space is limited but dual indication is required.
- Automotive: For dashboard lighting and signal indicators, offering drivers clear and immediate visual feedback.
- Decorative Lighting: Especially in festive decorations and custom lighting setups, where varying color outputs are beneficial.
These applications are further enriched by the integration of WS2812 controllers, which allow for individual LED control in more sophisticated RGB setups, often referred to as ultraviolet LEDs due to their capacity to cover a wide spectrum of colors.
Benefits of 8mm Bi-Color LED Diodes
Adopting 8mm bi-color LED diodes offers several advantages:
- Efficiency: These LEDs consume less power than traditional lighting systems, leading to energy cost savings.
- Compactness: Their small size allows for miniaturization of electronic devices.
- Versatility: The ability to switch between two colors enhances functionality without additional space or components.
Case Studies: 8mm Bi-Color LED Diodes in Action
Real-world applications highlight the effectiveness of these LEDs. One notable case involved a consumer electronics manufacturer that utilized 8mm bi-color LEDs to indicate device status (charging/fully charged) in their portable batteries, significantly enhancing user interface intuitiveness. Another application was in an automotive setting, where these LEDs were used in dashboard controls, improving the aesthetic appeal and functionality of the vehicle interiors.
User Testimonials
Feedback from users underscores the practicality and reliability of 8mm bi-color LED diodes. A product manager from a renowned electronics company stated, “The dual-color feature of the 8mm LEDs has allowed us to reduce the component count while maintaining design flexibility.” An electronics engineer remarked, “The brightness and low power consumption of these LEDs make them an excellent choice for any space-constrained application.”
Conclusion: The Future Bright with 8mm Bi-Color LED Diodes
The 8mm bi-color LED diode, 2 pin, continues to influence the electronics market, driving innovation and efficiency. Their broad adoption across industries exemplifies their importance and potential in future developments.
Call to Action Elevate your electronic designs by integrating the versatile 8mm bi-color LED diodes. Contact us today to find out how our LED solutions can brighten your projects!
Features
- 8mm Round LED Lamps: These LEDs are larger in size with a round shape, offering substantial visibility and illumination.
- Bi-Color: Capable of emitting light in two different colors. Despite having only 2 pins, these LEDs can display two colors, usually by alternating the polarity.
- Choice of Various Viewing Angles: Available with different viewing angles, allowing for flexibility in light dispersion according to application requirements.
- Lens Options: Comes with various lens types including diffused (for softer light dispersion), transparent (for clearer, more direct light), and water clear (for maximum brightness and clarity).
- IC Compatible / Low Current Capability: Can be easily integrated with various ICs (integrated circuits) and are designed for low current operation, enhancing energy efficiency.
- RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances directive, ensuring environmentally safer production and use.
Applications
- Indicator Lights and Signals: Ideal for use as indicator lights in various electronic devices, appliances, and machinery, where the bi-color feature allows for multiple signaling options within a single LED.
- Decorative Lighting: Suitable for decorative lighting applications in architectural designs, event setups, or artistic installations where the size and bi-color functionality can be creatively utilized.
- Automotive Applications: Can be used in automotive dashboards, control panels, and exterior lights for indicating different statuses or functions using the dual colors.
- Control Panels and Instrumentation: Useful in control panels and instrumentation for industrial machinery and equipment, offering clear and distinct signaling with dual colors.
- Consumer Electronics: Applicable in personal electronic devices for status indicators or aesthetic enhancements.
- Safety and Warning Signals: Ideal for safety signs, emergency lighting, and warning signals in industrial settings, where the visibility and dual-color functionality are crucial.
- Entertainment and Stage Lighting: Suitable for use in entertainment and stage lighting designs, where the size and bi-color effects can enhance the visual experience.
- Educational and Hobbyist Projects: Often used in DIY electronics, educational projects, and hobbyist applications due to their ease of use and the visual impact of bi-color lighting.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L817EGW |
Orange |
GaAsP/GaP |
635 |
Water Diff. |
2.5 |
5 |
15 |
60 |
|
BL-L817EGW |
Green |
GaP/GaP |
570 |
Water Diff. |
2.5 |
5 |
12 |
60 |
|
BL-L817UEUGW |
Ultra Yellow |
AlGaInP |
630 |
Water Diff. |
2.5 |
80 |
100 |
60 |
|
BL-L817UEUGW |
Ultra Green |
AlGaInP |
574 |
Water Diff. |
2.5 |
60 |
80 |
60 |
|
BL-L817YGW |
Yellow |
GaAsP/GaP |
585 |
Water Diff. |
2.5 |
5 |
12 |
60 |
|
BL-L817YGW |
Green |
GaP/GaP |
570 |
Water Diff. |
2.5 |
5 |
12 |
60 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
