Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Introduction

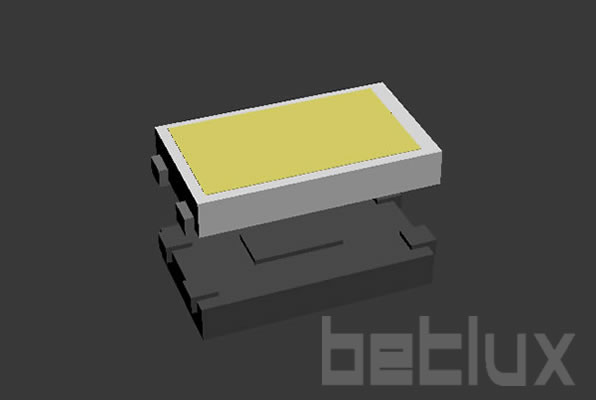

In the rapidly evolving world of electronics, the 5630 SMD LED stands out as a beacon of efficiency and versatility. Known for its impressive brightness and compact size, this LED variant is increasingly favored by electronics manufacturers and industry professionals. This article delves into the features, applications, and benefits of the 5630 SMD LED, complemented by real-world case studies and testimonials from users who have witnessed its impact firsthand.
Features of the 5630 SMD LED
The 5630 SMD LED, commonly referred to as the LED 5630, is notable for its size and power output. Typically measuring 5.6mm by 3.0mm, it offers a superior brightness level compared to earlier models like the 3528 and 5050 LEDs. This is largely due to its larger chip size, which allows for more light output while maintaining low energy consumption. The 5630 LED is designed for maximum durability and efficiency, making it an ideal choice for demanding applications.
Applications of 5630 SMD LEDs
The versatility of the 5630 SMD LED makes it suitable for a wide range of applications:
- General Lighting: From residential to commercial spaces, these LEDs provide powerful illumination that is both cost-effective and energy-efficient.
- Backlighting: Used in TVs, monitors, and mobile devices, their high brightness ensures excellent visibility in various electronic displays.
- Automotive Lighting: Many modern vehicles utilize 5630 LEDs for dashboard lighting, headlights, and tail lights due to their reliability and intense luminosity.
- Street Lighting: Their high luminous efficacy makes them a popular choice for outdoor lighting solutions, where long-lasting and dependable light sources are crucial.
Benefits of Using 5630 SMD LEDs
Adopting 5630 LEDs offers numerous advantages:
- Energy Efficiency: They consume significantly less power than traditional lighting solutions, leading to substantial energy savings.
- Longevity: These LEDs have a lifespan often exceeding 50,000 hours, reducing replacement costs and maintenance.
- Eco-Friendly: As a low-energy option, they contribute to lower carbon footprints, aligning with global sustainability goals.
- Cost-Effective: The initial investment in 5630 LEDs is quickly offset by their durability and efficiency, providing long-term savings.
Case Studies
Several electronics manufacturers have integrated LED SMD 5630 into their products with remarkable results:
- Smartphone Displays: A leading tech company reported a 30% improvement in screen brightness and a 25% reduction in energy consumption after switching to 5630 LEDs.
- Commercial Lighting Solutions: A case study involving a major retailer highlighted a 40% decrease in energy costs after retrofitting their stores with 5630 LED fixtures.
User Testimonials
Feedback from industry professionals further validates the effectiveness of the 5630 LED:
- “Switching to 5630 SMD LEDs in our production line not only improved the quality of our products but also enhanced our energy efficiency.” – Electronics Production Manager
- “The brightness and low heat generation of 5630 LEDs have significantly improved the performance and lifespan of our lighting products.” – R&D Engineer
Conclusion
The 5630 SMD LED is more than just a component; it’s a pivotal element in modern lighting and electronic applications. Its adoption across various industries underscores its effectiveness and potential to transform traditional lighting solutions. Whether you’re an engineer, purchaser, or administrator in the electronics field, embracing the advancements offered by the 5630 LED can lead to substantial benefits in both performance and cost-efficiency.
Call to Action: Ready to enhance your projects with superior lighting solutions? Consider integrating the 5630 SMD LED into your next project and experience unmatched efficiency and performance!
Features
- 5.6mmx3.0mm SMD, PLCC6 Package: Compact size and efficient design suitable for high-density mounting on circuit boards.
- Ultra Brightness: Provides strong light output, enhancing visibility in various applications.
- Compatible with Automatic Placement Equipment: Ensures easy integration into automated manufacturing processes for efficient assembly.
- Wide Viewing Angle: Offers visibility from various perspectives, crucial for many display and indicator applications.
- Ideal for Backlight and Indicator: Perfect for use in backlighting (e.g., screens, buttons) and as indicators in electronic devices.
- Packaged 500pcs/Reel: Convenient bulk packaging for large-scale production, facilitating efficient handling and storage.
- RoHS Compliance: Manufactured without certain hazardous materials for safer and more environmentally friendly use.
Applications
- Backlighting in Consumer Electronics: Useful in devices like smartphones, tablets, and laptops for backlighting screens and buttons.
- Automotive Lighting: Suitable for dashboard backlighting, indicator lights, and interior accent lighting in vehicles.
- Indicators in Home Appliances: Applicable for display and status indicators in appliances like microwaves and washing machines.
- Medical Device Lighting: Essential for backlighting and indicators in medical equipment where reliability and clarity are crucial.
- Outdoor Signage and Displays: Ideal for vibrant and visible screens and signs in outdoor settings due to high brightness and wide viewing angle.
- Control Panels in Industrial Machinery: Used in machinery control panels for clear indication and status displays.
- Portable Electronics: Well-suited for battery-powered devices such as handheld GPS units and portable music players due to its compact size.
- Creative Lighting Solutions: Applicable in architectural lighting, art installations, and innovative lighting designs for aesthetics and functionality.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-LS5630A1S1PGC-1W |
Ultra Pure Green |
525 |
Water Clear |
3.8 |
7000 |
10000 |
120 |
||
BL-LS5630A1S1UBC-1W |
Ultra Blue |
470 |
Water Clear |
3.8 |
7000 |
10000 |
120 |
||
BL-LS5630A1S1UEC-1W |
Ultra Red |
630 |
Water Clear |
2.75 |
4000 |
6000 |
120 |
||
BL-LS5630A1S1UWC-1W |
Ultra White |
- |
Water Clear |
3.8 |
10000 |
15000 |
120 |
||
BL-LS5630A1S1UYC-1W |
Ultra Yellow |
590 |
Water Clear |
2.75 |
4000 |
6000 |
120 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
