Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Navigating the Spectrum: The Brilliance of 3mm LED Diodes at 520 nm
In the vast universe of electronic components, the 3mm LED diode, particularly those emitting at the 520 nm wavelength, stands as a beacon of innovation and versatility. These compact yet powerful sources of light have carved their niche within the electronics industry, heralding a new era of efficiency and color precision. From intricate electronic parts to sophisticated led light circuit boards, the 3mm LED diode is a pivotal element in modern technology. This article delves into the features, applications, benefits, and real-life success stories of these luminescent marvels, offering a comprehensive view for electronics manufacturer engineers, purchasers, and administrators.
Unveiling the Power of 520 nm
At the heart of the 3mm LED diode’s appeal lies its ability to emit light at the 520 nm wavelength, a vibrant green that is not only pleasing to the eye but also critical in various applications. This specific wavelength offers the perfect balance between visibility and power efficiency, making it a favored choice among designers and engineers.
Key Features
- High Visibility: The 520 nm wavelength stands out with its bright green hue, offering excellent visibility even in broad daylight.
- Energy Efficiency: Despite their brightness, these LEDs are designed for low power consumption, contributing to energy-efficient designs.
- Compact Size: The small footprint of the 3mm LED diode allows for integration into virtually any electronic device, no matter how space-constrained.
Diverse Applications
The applications of the 3mm 520 nm LED diode are as varied as they are innovative. From signaling devices and traffic lights to medical equipment and high-tech dashboards, these LEDs provide reliable, efficient lighting solutions. Their use in led light circuit boards is particularly noteworthy, enabling designers to create compact, energy-efficient, and highly visible indicators and backlights.
The Advantages of Choosing 520 nm LEDs
Choosing 3mm LED diodes that operate at 520 nm comes with a plethora of benefits:
- Optimal Wavelength for Human Vision: The human eye is particularly sensitive to green light, making these LEDs exceptionally effective for indicators and displays.
- Lower Energy Consumption: Their efficiency translates into reduced energy costs and longer battery life for portable devices.
- Enhanced Aesthetics: The vibrant green light can enhance the design and user interface of electronic devices, making them more appealing and user-friendly.
Case Studies: Shining Examples of Innovation
A leading electronics manufacturer recently integrated 3mm 520 nm LED diodes into their new line of handheld devices. This move not only improved the devices’ usability and aesthetic appeal but also significantly extended their battery life, demonstrating the LEDs’ efficiency and versatility.
User Testimonials: Real-World Insights
“Implementing 3mm 520 nm LED diodes in our products has dramatically improved visibility and user feedback, setting our devices apart from the competition,” shares a Product Development Manager from a renowned tech company. “Their efficiency and compact size have opened up new avenues for design and functionality.”
Conclusion: The Future is Bright with 520 nm LED Diodes
The exploration of 3mm LED diodes emitting at 520 nm unveils a world of possibilities for the electronics industry. These LEDs encapsulate the perfect blend of visibility, efficiency, and compactness, driving forward innovations in electronic design. As technology continues to evolve, the significance of these LEDs, especially in applications demanding high visibility and low power consumption, is set to grow exponentially.
Call to Action: Elevate your electronic designs with the unmatched brilliance of 3mm 520 nm LED diodes. Discover how these compact, efficient, and vibrant components can transform your projects, paving the way for innovations that shine brighter than ever.
Features

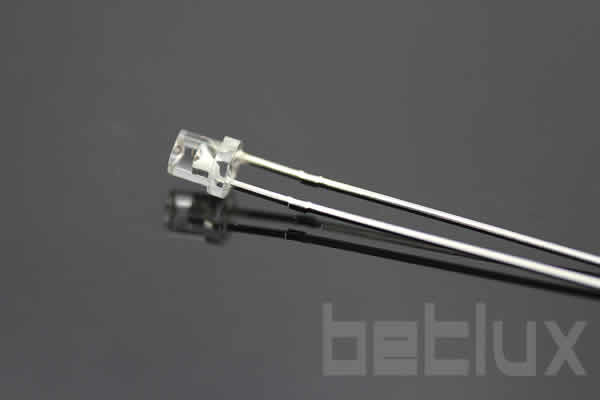

- 3.0mm Cylindrical, Inverted Cone Design: This unique structure allows for a distinct light dispersion pattern, making it suitable for applications requiring directed light with a broad spread.
- Various Viewing Angles: Available in different viewing angles to cater to specific requirements, ensuring optimal light distribution for diverse applications.
- Lens Options: Comes with diffused, transparent, and water-clear lens options. Diffused lenses offer a softer and more spread-out light, transparent lenses provide a more focused light path, and water-clear lenses deliver the most direct and intense light.
- IC Compatibility / Low Current Capability: Can be easily integrated with integrated circuits, suitable for complex electronic designs. The low current operation enhances energy efficiency, which is beneficial for battery-operated devices.
- RoHS Compliance: Adheres to environmental and safety standards, indicating the use of materials that are safe and environmentally friendly.
Applications
- Focused Indicator Lights: Ideal for use in electronic devices and control panels where directed indicator lights are needed.
- Backlighting and Illumination: Suitable for backlighting in displays, keypads, and control panels, especially where a broad light spread is desired.
- Consumer Electronics: Used in various consumer electronics for status indicators or aesthetic enhancements, particularly in devices requiring a unique lighting effect.
- Automotive Lighting: Employed in automotive dashboards and signal lighting for focused illumination.
- Signal Lights: Incorporated into signal lights and warning indicators where a broad yet directed light is necessary.
- Toys and Novelty Items: Integrated into toys and novelty items for unique lighting effects and enhanced user interaction.
- Decorative Lighting: Utilized in decorative and artistic lighting installations for creating focused yet diffused light patterns.
- DIY Projects and Hobby Electronics: Popular in DIY electronics and hobby projects due to their unique shape and versatile lighting characteristics.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L333BC |
Blue |
InGaN |
430 |
Water Clear |
4.2 |
400 |
800 |
140 |
|
BL-L333BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
220 |
800 |
140 |
|
BL-L333LRC |
Super Red |
AlGaAs,DH |
660 |
Water Clear |
2.2 |
60 |
120 |
140 |
|
BL-L333PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
300 |
1000 |
140 |
|
BL-L333SRC |
Hi Red |
AlGaAs,SH |
660 |
Water Clear |
2.2 |
30 |
80 |
140 |
|
BL-L333UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
500 |
1000 |
140 |
|
BL-L333UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
150 |
400 |
140 |
|
BL-L333UGC |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
30 |
100 |
140 |
|
BL-L333URC |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
120 |
300 |
140 |
|
BL-L333UWC |
Ultra White |
InGaN |
- |
Water Clear |
4.2 |
250 |
1200 |
140 |
|
BL-L333UYC |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
150 |
400 |
140 |
|
BL-L333VC |
UV |
InGaN |
405 |
Water Clear |
4.2 |
30 |
100 |
140 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
