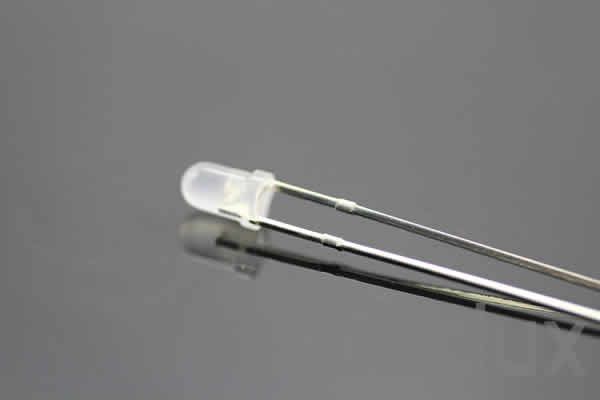

3mm Blinking LED diode

Series No:

BL-L314-B

Weight:(g/pcs)

0.17

Dimension:(mm)

3 x 3.9 x 5.3

Package:

Specification:

download

Inquiry

Description:

Introduction to 3mm Blinking LED Diodes

3mm blinking LED diodes, known for their ability to flash LEDs, embody the advancement in light emitting diode technology. Their compact size belies the significant impact they have on the design and functionality of a wide range of electronic devices. From signal indicators to decorative lighting, these diodes serve multiple purposes, making them indispensable in today’s electronic landscape.

Features of 3mm Blinking LED Diodes

The hallmark of the 3mm blinking LED diode lies in its inherent features. Capable of producing a distinctive flash or blink, these LEDs are engineered for durability, energy efficiency, and consistent performance. Their small footprint allows for integration into various electronic assemblies, where space is at a premium, without compromising on brightness or visibility.

Applications of 3mm Blinking LED Diodes

From consumer electronics to industrial machinery, the applications of 3mm blinking LED diodes are extensive. They function as critical components in alarm systems, where their blinking serves as an effective alert mechanism. In consumer goods, they add aesthetic value to devices, enhancing user interaction through visual feedback. The versatility of these diodes is further evident in automotive and signage applications, where visibility and reliability are paramount.

Benefits of 3mm Blinking LED Diodes

The benefits of incorporating 3mm blinking LED diodes into electronic designs are manifold. Their energy efficiency leads to reduced power consumption, contributing to the longevity of battery-operated devices. The robustness of these diodes ensures longevity, minimizing the need for replacements and maintenance. Moreover, the ability to produce a blinking effect without additional circuitry simplifies design considerations and reduces production costs.

Case Studies: Shining Examples of Success

Highlighting the practical advantages and innovative applications of 3mm blinking LED diodes, this section delves into case studies from various industries. These real-world examples underscore the diodes’ contribution to enhancing product functionality, user experience, and safety standards, providing valuable insights into their transformative potential.

User Testimonials: Lighting the Way Forward

User testimonials offer a glimpse into the direct impact of 3mm blinking LED diodes on the electronics sector. Engineers share stories of how these diodes have revolutionized product designs, while purchasers and administrators attest to their reliability and cost-effectiveness. These firsthand accounts serve as a testament to the widespread appreciation and adoption of these diodes across the industry.

Conclusion: The Bright Future of 3mm Blinking LED Diodes

As we look to the future, the significance of 3mm blinking LED diodes in the advancement of electronic technologies is undeniable. Their combination of functionality, efficiency, and versatility positions them as key components in the ongoing innovation within the electronics industry. Embracing these diodes not only enhances product design but also contributes to a more sustainable, visually engaging, and functionally rich electronic landscape.

Call to Action: Harness the potential of 3mm blinking LED diodes in your next electronic project. Explore the possibilities they offer for innovation, efficiency, and design excellence. Let these diodes light your way to success.

3mm Blinking LED diode
3mm Blinking LED diode

Features

  • 3.0mm Round Type Blinking LEDs: These LEDs are equipped with an internal blinking mechanism, eliminating the need for external circuitry to create a blinking effect.
  • Various Viewing Angles: Available in different viewing angles to cater to specific design requirements, enhancing visibility and effectiveness in various applications.
  • Lens Options: Offered with diffused, transparent, and water-clear lenses. Diffused lenses provide a softer light spread, transparent lenses offer a more focused light output, and water-clear lenses deliver the most direct and intense light.
  • IC Compatibility / Low Current Capability: Can be easily integrated with integrated circuits, suitable for complex electronic designs. Their low current operation also enhances energy efficiency, making them ideal for battery-powered and energy-saving applications.
  • RoHS Compliance: Adhere to environmental and safety standards, ensuring the use of materials that are safe and environmentally friendly.

Applications

  • Indicator Lights: Commonly used as attention-grabbing indicators in electronic devices, appliances, and control panels.
  • Safety and Warning Signals: Employed in safety and emergency equipment to draw attention in critical situations, such as on warning signs and emergency vehicles.
  • Decorative Lighting: Utilized in decorative applications for events, festivals, and public displays, where blinking lights can create dynamic and eye-catching effects.
  • Toys and Novelty Items: Integrated into toys and novelty items for visual appeal and to attract attention.
  • Advertising and Signage: Used in advertising displays and signboards to enhance visibility and attract viewers’ attention.
  • Signal and Signage Applications: Incorporated in traffic signals and informational signs where blinking lights are required for effective communication.
  • Party and Stage Lighting: Ideal for creating vibrant and dynamic lighting effects in parties, concerts, and stage performances.
  • DIY Projects and Hobby Electronics: Popular in DIY electronics and hobby projects for their unique blinking effect and ease of use.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram
3mm Blinking LED diode


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
