Description:

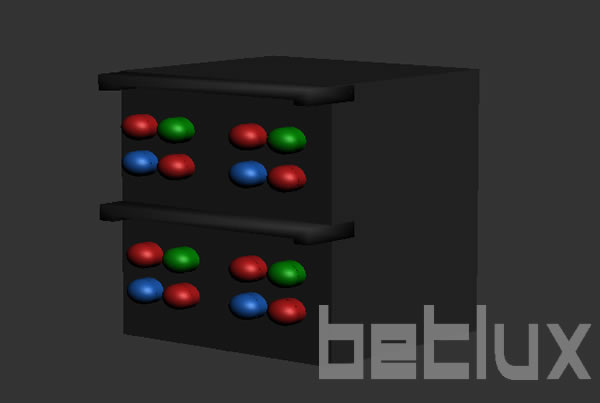

39mm Lamp cluster set (4 set, square packed)
39mm LED cluster set
Introduction
In the innovative landscape of modern lighting solutions, the 39mm LED cluster set emerges as a standout choice for professionals across the electronics industry. Comprising four sets of LEDs neatly arranged in a square-packed design, this product embodies the cutting-edge of lighting technology. This article aims to shed light on the features, applications, benefits, and the profound impact of this LED cluster set, augmented by insights from case studies and user testimonials. Dive into the world of superior lighting with the white LED module and discover how it redefines illumination for electronics manufacturers, engineers, purchasers, and administrators alike.
Features of the 39mm LED Cluster Set
The 39mm LED cluster set is a testament to sophisticated engineering, offering unparalleled brightness and color accuracy. Each set is meticulously designed to ensure uniform light distribution, energy efficiency, and durability. The integration of LED modules and the option for RGB functionality allows for customization and versatility in lighting design, making it a preferred choice for a wide range of applications.
Applications of the LED Cluster Set
From industrial machinery to consumer electronics, the 39mm LED cluster set finds its utility in diverse domains. Its compact size coupled with the power to emit intense light makes it ideal for use in signage, architectural lighting, automotive applications, and much more. The adaptability of LED modules including RGB capabilities enhances its application scope, allowing for dynamic color changes and mood lighting in various settings.
Benefits of Adopting the 39mm LED Cluster Sets
Embracing the 39mm LED cluster set brings forth numerous advantages. The energy efficiency of these LED modules significantly lowers power consumption, contributing to environmental sustainability and cost savings. Moreover, their long lifespan reduces the need for frequent replacements, offering a reliable and maintenance-free lighting solution. The aesthetic appeal and customization options available with RGB lighting further add to the appeal, enabling creative and innovative lighting installations.
Case Studies: Transformative Lighting Projects
The application of the 39mm LED cluster set in real-world projects underscores its versatility and effectiveness. One case study highlights its use in creating energy-efficient yet vibrant lighting for a commercial retail space, dramatically enhancing customer experience while reducing operational costs. Another instance demonstrates its utility in outdoor signage, where the durability and brightness of the LED clusters ensure long-lasting visibility and appeal.
User Testimonials: Feedback from the Field
Testimonials from electronics professionals who have utilized the 39mm LED cluster set affirm its superior performance and reliability. Engineers appreciate the ease of integration and the flexibility it offers in design, while purchasers laud the cost-effectiveness and environmental benefits. Administrators note the positive feedback from end-users, emphasizing the enhanced aesthetics and functionality that these LED clusters bring to their projects.
Conclusion: The Future is Lit with LED Cluster Sets
The 39mm LED cluster set is not just a product; it’s a comprehensive solution that addresses the myriad needs of modern lighting. With its impressive features, broad applications, tangible benefits, and the backing of successful case studies and user testimonials, it stands as a beacon of innovation in the lighting industry. Whether for aesthetics, efficiency, or functionality, the adoption of this LED cluster set promises to illuminate the path to a brighter future.
Call to Action: Elevate your lighting projects with the 39mm LED cluster set. Experience the blend of innovation, efficiency, and beauty in your lighting solutions today.
Features
- Dimensions: Each LED cluster measures 39.00mm x 39.00mm, providing a compact yet visible lighting solution.
- High Visibility: Designed to be bright and noticeable, suitable for various display and signaling applications.
- Emitting Colors: Includes red and green LEDs, offering a range of display options.
- Number of Built-in 5mm LED Lamps: Each set includes 2 red and 1 green LED, packed in 4 sets.
- Waterproof Package with Hood: Suitable for outdoor use, ensuring durability and functionality in various weather conditions.
- Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
- Low Current, Power Savings: Energy-efficient, contributing to lower power consumption and cost savings.
- Low Maintenance: Requires minimal upkeep due to the durability and reliability of LED technology.
- Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
- Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, suitable for high-impact environments.
- Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide range of colors for various display needs.
- RoHS Compliance: Manufactured in compliance with environmental and health safety standards.
Applications
- Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces, transportation hubs, and commercial areas.
- Signage and Advertising: Suitable for use in signs, billboards, and promotional displays for businesses and events.
- Safety and Warning Signals: Can be used for traffic signals, warning lights, and emergency signage.
- Architectural Lighting: Applicable in architectural designs for both functional and aesthetic lighting.
- Event and Stage Lighting: Ideal for concerts, theaters, and other event venues for decorative and functional lighting.
- Industrial Indicators: Useful in industrial settings for machinery status indicators, alert systems, and control panels.
- Retail Displays: Enhances retail displays and storefronts with eye-catching and customizable lighting.
- Public Art and Installations: Suitable for public art projects and installations that require durable and versatile lighting solutions.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
Related Information
Applied for:
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
