Through hole LED
Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Datasheet Inquiry
Description:

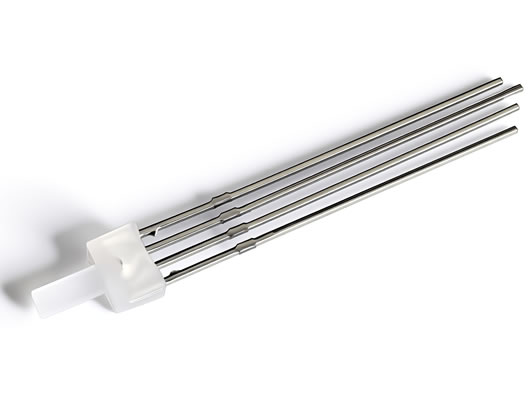

🌈 2mm Round RGB Color LED Diode – Ultra-Compact Full-Color Indicator for Modern Electronics
The 2mm round RGB color LED diode is one of the smallest and most versatile multi-color indicators available in the LED component family. Designed for space-restricted applications, this LED integrates red, green, and blue chips inside a compact 2mm round lens, enabling millions of color combinations through simple current control or PWM driving. Its tiny footprint paired with high brightness makes it exceptionally valuable for products where visual communication must be clear but space is extremely limited.
From wearable devices to medical instruments and compact industrial controls, the 2mm RGB LED diode delivers unmatched flexibility, vivid illumination, and sleek modern aesthetics.
⭐ Introduction
The compact 2mm round RGB color LED diode is engineered to deliver full-color output in miniature form. Despite its ultra-small diameter, it provides vibrant lighting performance across all RGB wavelengths. This LED allows designers to replace multiple single-color LEDs with one multi-function component — reducing PCB space, simplifying wiring, and offering advanced visual effects.
Whether the application requires subtle status indication, dynamic color feedback, or visually appealing ambient light, the 2mm round RGB LED is designed to deliver consistently strong performance.
⭐ Key Features
1. Ultra-Miniature 2mm Round Package
The 2mm size is ideal for:
-
Microelectronics
-
Handheld devices
-
Wearables
-
Slim industrial panels
-
Mini indicators on dense PCBs
Its tiny footprint supports modern electronics that prioritize compactness without compromising clear visual signaling.
2. Full RGB Color Output
The LED integrates three chips (R/G/B) within one epoxy lens.
This provides:
-
Millions of color combinations
-
Smooth transitions using PWM
-
Ability to display multiple states or animations
-
High color accuracy and purity
Designers can achieve almost any color output using standard LED drivers.
3. High Brightness Despite Small Size
With advanced semiconductor material and a high-quality lens, the LED offers:
-
Exceptional brightness
-
Clean color separation
-
Balanced illumination
-
Good visibility even in environments with ambient light
It performs reliably in both indoor and semi-bright outdoor applications.
4. Low Power Consumption
The LED uses minimal energy while providing strong illumination, making it suitable for:
-
Battery-powered products
-
Portable devices
-
Energy-conscious electronics
Efficient operation ensures long-term running without thermal concerns.
5. Multiple Lens Options
Available in:
-
Water-clear (maximum brightness)
-
Transparent-colored
-
Diffused (softer uniform glow)
These variations allow engineers to match appearance and brightness to precise application demands.
6. Long Operating Lifespan
The LED’s epoxy housing and durable chips provide:
-
50,000–100,000 hours of life
-
Excellent thermal and environmental tolerance
-
Stable output across long-term continuous use
This ensures reliability even under industrial or medical usage conditions.
⭐ Applications of the 2mm Round RGB LED
The tiny multi-color LED is widely used in advanced, compact, and smart technology.
✔ Wearable Technology
-
Smart rings
-
Health trackers
-
Smart apparel sensors
-
Fitness devices
RGB output allows mood lighting, alerts, and animated indicators.
✔ Consumer Electronics
-
Headphones and earbuds
-
Charging docks
-
Game controllers
-
Wireless devices
-
Power/charging indicator lights
Small size provides premium aesthetics and space savings.
✔ Medical & Laboratory Equipment
-
Sterilization devices
-
Diagnostic equipment
-
Portable medical monitors
Color-coded signals provide clear, rapid status updates.
✔ Networking & Communication Devices
-
Routers and modems
-
Ethernet and signal indicators
-
Data transmission status indicators
RGB simplifies multi-status monitoring with one LED.
✔ Industrial Control Panels
-
Compact diagnostics
-
Mode indication
-
Safety/warning lights
-
Miniaturized control interfaces
Despite its size, the LED remains visible and reliable.
✔ Automotive Electronics
-
Switch backlighting
-
Indicator clusters
-
Smart knobs
RGB color allows flexible UI design in compact interiors.
✔ Mini Displays & Custom Light Effects
The LED is popular with makers and engineers for:
-
Small LED arrays
-
Pixel lighting
-
Hobby circuits
-
Mini RGB displays
The 2mm RGB is ideal for creative electronics due to its versatility.
⭐ Benefits of the 2mm Round RGB LED
✔ Multi-Function Capability in One Diode
Replace three separate LEDs (R, G, B) with one compact device.
✔ PCB Space Optimization
Perfect for modern electronics requiring smaller layouts.
✔ Design Flexibility
Switch colors based on device status, animations, or environmental response.
✔ Enhanced Visual Communication
Users instantly understand device behavior through intuitive color coding.
✔ Easily Controlled
Works with standard LED drivers, microcontrollers, and PWM circuits.
✔ Cost-effective for Mass Production
Fewer components = simplified assembly and lower BOM cost.
⭐ Case Study: Miniature Smart Sensor Device
A manufacturer of micro-sensor modules needed:
-
A high-visibility indicator
-
Multiple color states
-
Extremely small footprint
-
Low heat and power consumption
The 2mm round RGB LED perfectly solved the challenge.
Results:
-
Replaced three LEDs with one RGB component
-
Enabled multi-mode color signaling (bluetooth, standby, alert)
-
Reduced PCB component count
-
Improved end-user experience by adding animated color transitions
The LED is now a standard component across several next-generation sensor designs.
⭐ User Testimonials
Product Developer – USA
“The 2mm RGB LED gives us all the color flexibility we need while keeping the device ultra-small. Perfect for modern portable electronics.”
Hardware Engineer – Japan
“Amazingly bright for this size. Ideal for compact control modules where space is critical.”
IoT Designer – Sweden
“RGB in a 2mm package is a huge advantage. Works flawlessly with microcontrollers and simple PWM drivers.”
⭐ Conclusion
The 2mm round RGB color LED diode is an excellent choice for compact, modern electronics requiring multi-color indication in the smallest possible space. Its RGB flexibility, long lifespan, low power consumption, and high brightness make it a preferred solution for engineers designing wearables, portable devices, medical equipment, and network electronics.
By combining functionality, efficiency, and visual clarity in a micro-sized package, this LED is ideal for next-generation product development.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
Obtain 3D specification files
Initial Graphics Exchange Specification (.IGS)Standard for the Exchange of Product Model Data (.STEP)To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
