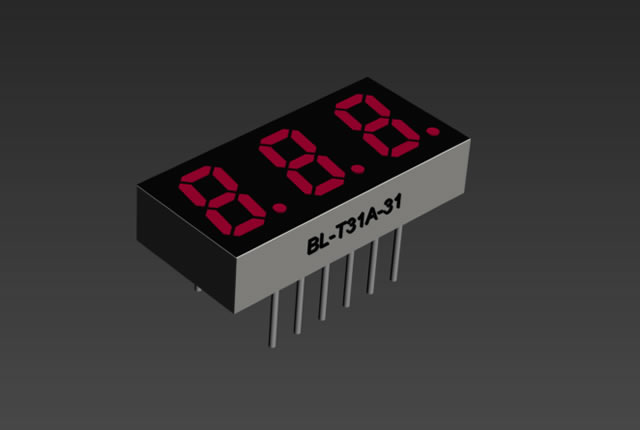

7 seg display 0.31 inch three-digit

7 seg display 0.31 inch three-digit

Series No:

BL-T31A-31

Weight:(g/pcs)

1.5

Dimension:(mm)

23.5 x 11 x 5

Character Height: (inch)

0.31 inch

Specification:

download

Inquiry

Description:

“Revolutionizing Digital Displays: The Efficiency of 0.31 Inch 7 Seg Displays in Industry”

Introduction

In the realm of electronic displays, the 7 seg display, especially the 0.31 inch three-digit model, has become a significant component in industrial electronics. Offering a balance between size and readability, these displays are essential in various applications, particularly in industrial control systems. This article is tailored for engineers, purchasers, and administrators in electronics manufacturing and will cover the features, applications, and benefits of the 0.31 inch three-digit 7 segment display, along with insightful case studies and user testimonials.

Features of 0.31 Inch Three-Digit 7 Segment Display

The 0.31 inch three-digit 7 segment display is renowned for its compactness and efficiency. Each segment in the display consists of LED or LCD technology, capable of lighting up to show numbers and some characters. This size is particularly beneficial in applications where space is limited but clear information display is necessary. The 7 segment display segments are designed for low power consumption while providing high visibility, which is crucial in various industrial settings.

Applications in Industrial Electronics

These 7 segment displays are widely used in industrial electronics, particularly in control systems, where they provide clear and immediate readings of measurements, status indicators, and other critical data. Their applications extend to manufacturing machinery, where they display operational statistics, and in laboratory equipment, where precision and clarity are paramount.

Benefits of Using 0.31 Inch 7 Segment Displays in Industry

The primary advantages of these displays include their compact design, which allows for integration into a variety of industrial devices. Their clarity and ease of interpretation make them ideal for environments where quick and accurate data reading is essential. Additionally, their energy efficiency leads to cost savings and contributes to more sustainable manufacturing practices.

Case Studies: Real-World Applications

A case study in the manufacturing sector showcased the implementation of these displays in assembly line machinery. The 0.31 inch 7 segment displays provided operators with real-time production data, enhancing efficiency and reducing errors.

7 segment displays in assembly line machinery
7 segment displays in assembly line machinery

In another instance, a water treatment facility utilized these displays in their control panels, significantly improving the readability of crucial monitoring data, which enhanced operational safety and efficiency.

User Testimonials

Feedback from industry professionals underscores the effectiveness of these displays. An electronics engineer emphasized the ease of integrating these displays into industrial control systems, highlighting their reliability and performance. A procurement officer from a manufacturing company noted the cost-efficiency and durability of these displays as key factors in their component selection process.

Conclusion and Call to Action

The 0.31 inch three-digit 7 segment display is a cornerstone in the field of industrial electronics, offering a blend of efficiency, compactness, and clarity. For professionals in the electronics sector, adopting these displays is a step towards enhancing efficiency and precision in industrial applications. Embrace the potential of these displays to revolutionize your industrial control systems.

Features of 0.31 Inch Three Numeric LED Display:

  • Compact size: 0.31 inch digit height (8.00mm).
  • Dimensions: 23.5mm width x 11mm height.
  • Low-current operation for energy efficiency.
  • Common anode and common cathode options are available.
  • Excellent character appearance for clear visibility.
  • High light output for bright illumination.
  • Easy mounting on PC boards or sockets.
  • IC compatible for integration with other components.
  • Multicolor options are available for diverse applications.
  • Categorized for luminous intensity.
  • Technically rugged for durability.
  • Standard: gray surface, white segment.
  • RoHS compliance for environmental consideration.

Possible Applications:

  • Digital clocks and timers.
  • Instrumentation panels.
  • Small-scale measurement devices.
  • Industrial automation displays.
  • Consumer electronics.
  • Countdown timers.
  • Voltage or temperature displays.
  • Portable measurement instruments.
  • Control panels.
  • Educational electronics projects.
  • General-purpose numeric displays.
  • Customized lighting projects.
  • Wearable technology applications.
  • Automotive interior lighting.
  • Signage and information displays.
  • Entertainment and gaming devices.
  • Medical instrumentation.
  • Agricultural automation displays.
  • Smart home devices.
  • Traffic control systems.
  • Marine navigation equipment.
Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No. (Cathode)
Part No. (Anode)
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ.(v)
Voltage max. (v)
Luminous min
Luminous typ
BL-T31A-31B
BL-T31B-31B
ultra Blue
InGaN/SiC
470
4.2
30
45
BL-T31A-31D
BL-T31B-31D
Super Red
GaAlAs/DH
660
2.2
70
120
BL-T31A-31E
BL-T31B-31E
Orange
GaAsP/GaP
635
2.5
40
55
BL-T31A-31G
BL-T31B-31G
Green
GaP/GaP
570
2.5
35
50
BL-T31A-31H
BL-T31B-31H
Red
GaP/GaP
700
2.6
6.5
10.5
BL-T31A-31PG
BL-T31B-31PG
Ultra Pure Green
InGaN/SiC
525
4.2
110
170
BL-T31A-31S
BL-T31B-31S
Hi Red
GaAlAs/SH
660
2.2
65
105
BL-T31A-31UB
BL-T31B-31UB
ultra Blue
InGaN/SiC
470
4.2
60
80
BL-T31A-31UE
BL-T31B-31UE
Ultra Orange
AlGaInP
630
2.5
75
120
BL-T31A-31UG
BL-T31B-31UG
Ultra Green
AlGaInP
574
2.5
70
110
BL-T31A-31UR
BL-T31B-31UR
Ultra Red
GaAlAs/DDH
660
2.2
90
155
BL-T31A-31UY
BL-T31B-31UY
Ultra Yellow
AlGaInP
590
2.5
75
120
BL-T31A-31W
BL-T31B-31W
Ultra White
InGaN
-
4.2
115
BL-T31A-31Y
BL-T31B-31Y
Yellow
GaAsP/GaP
585
2.5
40
55
Package configuration & Internal circuit diagram
7 seg display 0.31 inch three-digit


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display

More information

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
dvd player radio train instrument refrigerator

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
