Description:

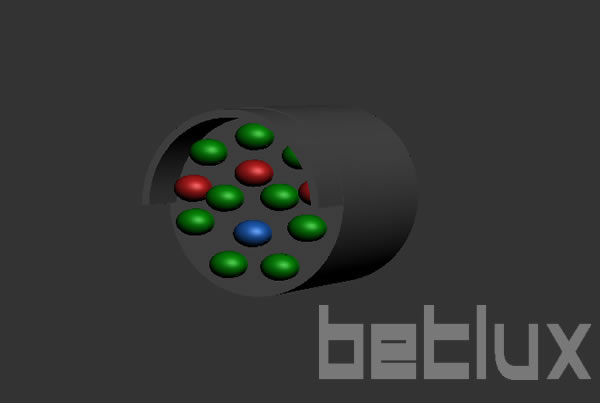

26mm Lamp cluster (3 red 9 green 1 blue, round packed)
26mm LED cluster
The Evolution of Display Technology: A Deep Dive into the 26mm LED Cluster
In the realm of electronic displays, the 26mm LED cluster, featuring an intricate combination of 3 red, 9 green, and 1 blue LEDs, packed in a round configuration, emerges as a beacon of innovation. This article navigates through the essence of the LED display module, synonymous with RGB LED module, exploring its unparalleled features, diverse applications, inherent benefits, alongside vivid case studies and genuine user testimonials. Tailored for electronics manufacturer engineers, purchasers, and administrators, we present an in-depth analysis of this groundbreaking technology in a professional and structured format.
Introduction to 26mm LED Cluster Technology
The 26mm LED cluster represents the pinnacle of LED display module innovation, with its rich color blend and round packing offering unmatched versatility and efficiency. From the outset, it’s evident that this module is engineered for superior performance, offering vibrant colors and high brightness in a compact form factor.
Features That Set It Apart
This LED cluster is distinguished by its ability to produce a wide spectrum of colors through the combination of red, green, and blue LEDs. The precision in color blending, coupled with high luminous efficiency, makes it an ideal choice for applications requiring high-quality visual displays.
Broad Spectrum of Applications
The 26mm LED cluster finds its applications in a myriad of settings, from dynamic advertising boards and traffic signals to sophisticated control panels and decorative lighting. Its ability to convey information and aesthetics effectively makes it a preferred component in various industries.
Benefits: Efficiency, Versatility, and Color Fidelity
Adopting the 26mm LED cluster technology translates into numerous advantages, such as reduced energy consumption, minimal maintenance, and enhanced display quality. Its long service life and ability to operate in diverse environmental conditions further underscore its superior performance.
Real-World Impact: Case Studies
The application of the 26mm LED cluster in real-life projects underscores its transformative potential. A notable case study involves its integration into a city’s traffic light system, resulting in improved visibility and energy savings. Another example highlights its use in creating immersive retail display experiences, significantly enhancing customer engagement.
From the Users: Testimonials
The effectiveness of the 26mm LED cluster is further validated by user testimonials. An electronics engineer lauds its “remarkable color precision and reliability,” while a purchasing manager appreciates the “significant cost savings in energy and maintenance.”
Conclusion: Leading the Way in LED Technology
The 26mm LED cluster, with its advanced LED display module and RGB LED module capabilities, sets a new standard in the electronic display industry. Its blend of high performance, efficiency, and color accuracy makes it a cornerstone of modern display technology.
Call to Action
For those involved in electronics design and procurement, embracing the 26mm LED cluster technology offers an opportunity to stay ahead in the competitive landscape of electronic displays. Discover the transformative potential of this innovative technology for your projects and applications today.
Features
- Round Shape: Offers a visually appealing and uniform design, with a diameter of 26.00mm.
- High Visibility: Bright and noticeable, ideal for various display and signaling applications.
- Emitting Colors: Includes a combination of red, green, and blue LEDs, offering versatile display options and the ability to create multiple colors.
- Number of Built-in 5mm LED Lamps: Contains 3 super bright red LEDs, 9 green LEDs, and 1 blue LED, enhancing visibility and color variety.
- Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability in various environmental conditions.
- Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
- Low Current, Power Savings: Energy-efficient, contributing to lower power consumption and cost savings.
- Low Maintenance: Requires minimal upkeep due to the durability and reliability of LED technology.
- Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
- Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, making it suitable for high-impact environments.
- Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide array of colors for diverse lighting needs.
- RoHS Compliance: Manufactured in compliance with environmental and health safety standards.
Applications
- Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces, transportation hubs, and commercial areas.
- Signage and Advertising: Suitable for signs, billboards, and promotional displays where high visibility and color variety are required.
- Safety and Warning Signals: Can be used for traffic signals, emergency signage, and warning systems.
- Architectural Lighting: Applicable for functional and aesthetic lighting in architectural designs.
- Event and Stage Lighting: Ideal for concerts, theaters, and other venues where decorative and functional lighting is essential.
- Industrial Indicators: Useful in industrial settings for status indicators, alert systems, and control panels.
- Retail Displays: Enhances the visual appeal of retail displays and storefronts with customizable lighting.
- Public Art and Installations: Suitable for public art projects and installations requiring durable and versatile lighting.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
Related Information
Applied for:
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
