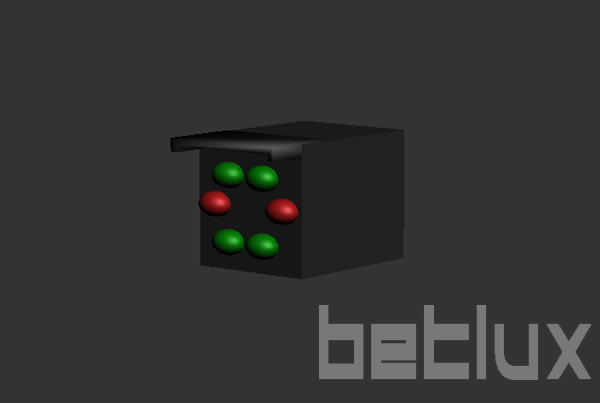

19.2mm led cluster (2 red 4 green, square packed)

Series No:










19.2mm Lamp cluster (2 red 4 green, square packed)
19.2mm LED cluster

Illuminating Innovation: The 19.2mm LED Cluster (2 Red 4 Green, Square Packed)

In the vibrant world of LED technology, the 19.2mm LED cluster, boasting a precise arrangement of 2 red and 4 green LEDs, emerges as a cornerstone for modern signage solutions. This compact, square-packed powerhouse is revolutionizing the way we think about illuminated displays. Right from the outset, it’s essential to highlight that these “led modules for signs,” synonymous with “12v led module,” represent a leap in efficient, adaptable lighting design. This article delves into the multifaceted features, applications, and unparalleled benefits of this LED cluster, complemented by insightful case studies and authentic user testimonials.

Versatile Design, Unmatched Efficiency: Features of the 19.2mm LED Cluster

The 19.2mm LED cluster’s unique composition allows for vivid colors and superior brightness, making it a versatile choice for various applications. Its energy-efficient “12v led module” design ensures that it is not only powerful but also cost-effective and environmentally friendly.

  • Robustness and Longevity: Designed to withstand harsh conditions, ensuring longevity and reliability.
  • Energy Efficiency: Highlights the cluster’s low power consumption, aligning with green energy standards.
  • Vivid Color Output: The blend of red and green LEDs provides a broad spectrum of colors, enhancing visual impact.

Broad Spectrum of Applications

This LED cluster finds its place in a myriad of settings, from commercial signage to architectural accents, underscoring its role as an essential component in the “led panel module” category. Its adaptability extends to both indoor and outdoor environments, providing solutions that meet the exacting demands of today’s electronics manufacturers, engineers, and designers.

Transformative Benefits for Industries

The adoption of the 19.2mm LED cluster translates into tangible benefits: enhanced visual communication, reduced operational costs, and a marked improvement in environmental sustainability. These advantages are critical for businesses aiming to stay at the forefront of technological advancements.

Case Studies: Seeing is Believing

Real-world applications of the 19.2mm LED cluster provide compelling evidence of its impact across industries. These case studies illustrate its effectiveness in improving visibility, aesthetics, and overall user engagement, offering valuable insights into its practical benefits.

Hearing from the Innovators: User Testimonials

Feedback from professionals who have integrated this LED cluster into their projects paints a vivid picture of its versatility, efficiency, and performance. These testimonials serve as a testament to the cluster’s value, reinforcing its standing in the market.

Conclusion: A Brighter Path Forward with LED Technology

The 19.2mm LED cluster represents a significant stride in the evolution of LED lighting solutions. Its blend of aesthetic versatility and operational efficiency positions it as a key player in the future of illuminated signage and electronic displays.

Call to Action: Elevate Your Projects with the 19.2mm LED Cluster

Embrace the future of lighting technology by incorporating the 19.2mm LED cluster into your designs. Its unparalleled brightness, color fidelity, and efficiency are set to transform your projects, ensuring they stand out in today’s competitive landscape.

19.2mm led cluster (2 red 4 green, square packed)
19.2mm led cluster (2 red 4 green, square packed)


  • Square Shape: Compact and uniform design, suitable for various applications.
  • Dimensions: Each LED cluster measures 19.20mm x 19.20mm, providing a compact yet visible lighting solution.
  • High Visibility: Bright and noticeable, ideal for various display and signaling applications.
  • Emitting Colors: Includes a combination of red and green LEDs, offering versatile display options.
  • Number of Built-in 5mm LED Lamps: Contains 2 super bright red LEDs and 4 green LEDs in each cluster.
  • Waterproof Package with Hood: Suitable for outdoor use, ensuring durability and functionality in various weather conditions.
  • Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
  • Low Current, Power Savings: Energy-efficient, contributing to lower power consumption and cost savings.
  • Low Maintenance: Requires minimal upkeep due to the durability and reliability of LED technology.
  • Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
  • Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, suitable for high-impact environments.
  • Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide range of colors for diverse lighting needs.
  • RoHS Compliance: Manufactured in compliance with environmental and health safety standards.


  • Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces, commercial areas, and transportation hubs.
  • Signage and Advertising: Suitable for use in signs, billboards, and promotional displays for businesses and events.
  • Safety and Warning Signals: Can be used for traffic signals, warning lights, and emergency signage.
  • Architectural Lighting: Applicable in architectural designs for both functional and aesthetic lighting.
  • Event and Stage Lighting: Ideal for concerts, theaters, and other event venues for decorative and functional lighting.
  • Industrial Indicators: Useful in industrial settings for machinery status indicators, alert systems, and control panels.
  • Retail Displays: Enhances retail displays and storefronts with eye-catching and customizable lighting.
  • Public Art and Installations: Suitable for public art projects and installations that require durable and versatile lighting solutions.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram
19.2mm led cluster (2 red 4 green, square packed)

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED Cluster is widely applied in traffic signal, scoreboard sign,etc

Part No of  LED Cluster

Related Information

Applied for:
road signal clusterroad arrow signaloutdoor coreboardoutdoor coreboardoutdoor coreboard


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
