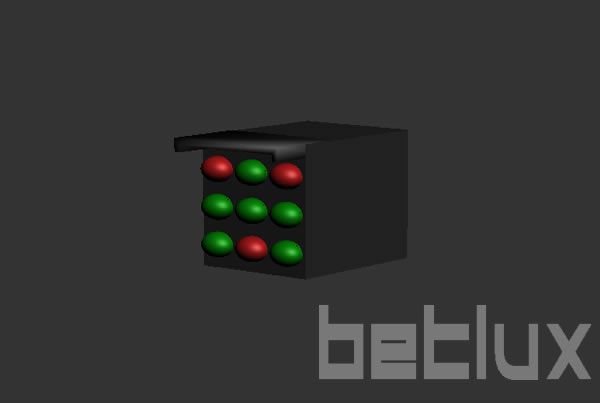

19.2mm Lamp cluster (3 red 6 green, square packed)
19.2mm LED cluster
Illuminating the Future: The Power of the 19.2mm LED Cluster (3 Red 6 Green, Square Packed)
In the rapidly evolving world of LED technology, the 19.2mm LED cluster, with its distinctive combination of 3 red and 6 green LEDs, marks a significant advancement. Designed for versatility and efficiency, this compact, square-packed module epitomizes the latest in lighting innovation. Starting with a focus on the “12v led module” and its synonym “led panel module,” this article aims to explore the myriad features, applications, and benefits of this LED cluster, supported by enlightening case studies and genuine user testimonials.
Unparalleled Features of the 19.2mm LED Cluster
The 19.2mm LED cluster stands out for its color configuration and compact design, offering a bright and energy-efficient solution for a wide range of applications. From intricate electronics to expansive signage, its versatility is unmatched.
- Energy Efficiency: Operating on a “12v led module” system, it offers optimal brightness with minimal power consumption.
- Vibrant Color Output: The unique blend of red and green LEDs ensures vivid visuals and superior color accuracy.
- Durability and Design Flexibility: Engineered for both indoor and outdoor use, its robust construction meets the demands of diverse applications, including those requiring “round led module” components.
Illuminating Applications: Where Technology Meets Creativity
The adaptability of the 19.2mm LED cluster is evident in its wide range of applications. It’s a prime choice for “led panel module” projects, from dynamic advertising signs to architectural lighting, providing designers and engineers with a powerful tool to bring their visions to life.
Benefits: Lighting the Way to Innovation
Adopting the 19.2mm LED cluster not only enhances visual appeal but also offers significant advantages in terms of cost savings, environmental impact, and user experience. Its efficiency and longevity stand as a testament to the future of lighting technology.
Case Studies: Success Stories Illuminated
Through real-world examples, the transformative impact of the 19.2mm LED cluster becomes apparent. These case studies showcase its effectiveness in elevating brand presence, enhancing product design, and contributing to sustainable practices.
Voices of Innovation: User Testimonials
The credibility of the 19.2mm LED cluster is further reinforced by testimonials from electronics manufacturers, engineers, and purchasers. Their firsthand experiences highlight the cluster’s reliability, performance, and ease of integration into various projects.
Conclusion: Shining a Light on the Future
The 19.2mm LED cluster (3 red 6 green, square packed) represents a leap forward in LED technology, offering a blend of performance, efficiency, and versatility. As the industry looks to the future, this LED module stands as a beacon of innovation, ready to illuminate the path ahead.
Call to Action: Lead with Light
Embrace the future of lighting by incorporating the 19.2mm LED cluster into your next project. Experience the difference in brightness, efficiency, and color accuracy. Start your journey towards innovation today.
Features
- Square Shape: Compact and uniform design, suitable for a variety of applications.
- Dimensions: Each LED cluster measures 19.20mm x 19.20mm, offering a compact yet visible lighting solution.
- High Visibility: Bright and noticeable, ideal for various display and signaling purposes.
- Emitting Colors: Includes a combination of red and green LEDs, providing versatile display options.
- Number of Built-in 5mm LED Lamps: Contains 3 super bright red LEDs and 6 green LEDs, enhancing visibility.
- Waterproof Package with Hood: Suitable for outdoor and indoor use, ensuring durability in different environmental conditions.
- Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
- Low Current, Power Savings: Energy-efficient, leading to lower electricity consumption and cost savings.
- Low Maintenance: Requires minimal upkeep due to the durability and reliability of LED technology.
- Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
- Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, making it suitable for high-impact environments.
- Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide array of colors for various lighting needs.
- RoHS Compliance: Manufactured in compliance with environmental and health safety standards.
Applications
- Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces, transportation hubs, and commercial areas.
- Signage and Advertising: Suitable for signs, billboards, and promotional displays for businesses and events.
- Safety and Warning Signals: Can be used for traffic lights, emergency signage, and warning systems.
- Architectural Lighting: Applicable in architectural designs for both functional and aesthetic lighting.
- Event and Stage Lighting: Ideal for concerts, theaters, and other event venues for decorative and functional lighting.
- Industrial Indicators: Useful in industrial settings for status indicators, alert systems, and control panels.
- Retail Displays: Enhances the visual appeal of retail displays and storefronts with customizable lighting.
- Public Art and Installations: Suitable for public art projects and installations that require durable and versatile lighting.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
Related Information
Applied for:
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
