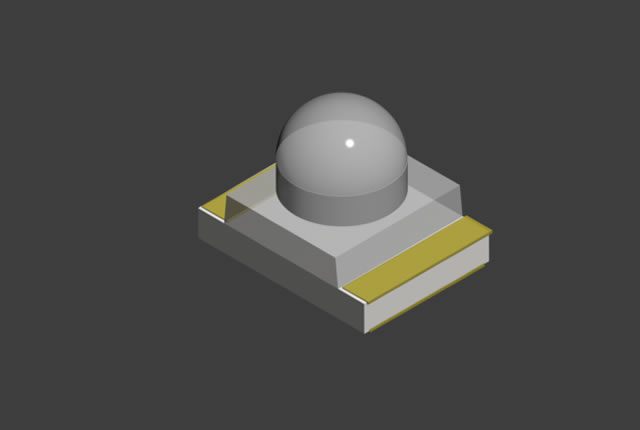

Introduction to 1206 SMD LED with DOME Technology
The 3224 LED, a type of SMD (Surface Mounted Device) LED, is at the forefront of modern lighting solutions, particularly in applications demanding compact and efficient light sources. This article delves into the features and applications of the 1206 SMD LED DOME, exploring its benefits, and sharing insights through case studies and user testimonials.
Features of the 1206 SMD LED DOME
The 1206 SMD LED, encapsulated within a DOME structure, is renowned for its high brightness and durability. This design enhances light dispersion, making it ideal for a range of applications. Notably, the 3224 LED variant offers significant advantages in terms of size and power efficiency, making it a preferred choice among electronics manufacturers.
Key Applications of 3224 LEDs
The versatility of the 3224 LED allows its use in various sectors, including automotive lighting, mobile devices, and medical equipment. Its compact size and high efficiency are beneficial for space-constrained applications where maintaining optimal brightness is crucial.
Benefits of Using 3224 SMD LEDs
- Energy Efficiency: These LEDs consume less power, leading to reduced energy costs.
- Compact Design: The small footprint of the 3224 LED makes it suitable for miniaturized electronic devices.
- High Brightness: Despite their size, these LEDs do not compromise on brightness, making them suitable for high-visibility applications.
Case Studies: 3224 LEDs in Action
Several electronics manufacturers have reported improved performance and reduced operational costs after switching to 3224 LEDs. One such case involved a leading automotive manufacturer that integrated these LEDs into their new line of vehicles, resulting in enhanced lighting performance and lower energy consumption.
User Testimonials on the Efficacy of 3224 LEDs
Users from various sectors have praised the 3224 LED for its performance and reliability. A technician in the medical field noted, “The 3224 LEDs have revolutionized our medical devices with their superb brightness and efficiency, allowing for better and more reliable patient care.”
The Role of UV-C Light with 3224 LEDs
The integration of UV-C light capabilities in 3224 LEDs has opened new avenues for disinfection applications. These LEDs are now frequently used in sanitation devices, effectively eliminating germs and viruses without the use of chemicals.
Conclusion and Call to Action
The 3224 LED represents a significant advancement in LED technology, particularly for those in the electronics manufacturing and design industry. Its diverse applications and benefits make it an essential component for modern electronic devices. We encourage manufacturers and engineers to consider integrating the 3224 LED into their designs to harness its full potential.
- Features:
- Compact size: 3.2mm x 2.4mm with a thickness of 1.1mm
- Ultra Brightness for enhanced visibility
- Low Power Consumption for energy efficiency
- Wide Viewing Angle for versatile applications
- Ideal for Backlighting and Indicator purposes
- Package includes 3,000 pieces per reel
- PB-Free for environmental friendliness
- RoHS Compliance ensuring safety and quality
- Applications:
- Backlighting for various electronic devices
- Indicator lights on control panels
- Automotive interior lighting applications
- Display backlight in consumer electronics
- Status indicators in industrial equipment
- Decorative lighting for signage
- Backlighting for switches and buttons
- Lighting solutions for wearable devices
- Illumination in medical devices
- Emergency lighting systems
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-LS3224A0E1BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
300 |
400 |
50 |
|
BL-LS3224A0E1DNB |
Blue |
InGaN |
470 |
Water Clear |
4.2 |
490 |
650 |
50 |
|
BL-LS3224A0E1EC |
Red |
GaAsP |
640 |
Water Clear |
2.7 |
5 |
15 |
50 |
|
BL-LS3224A0E1GC |
Green |
GaP |
568 |
Water Clear |
2.7 |
8 |
20 |
50 |
|
BL-LS3224A0E1HC |
Red |
GaP |
700 |
Water Clear |
2.7 |
5 |
15 |
50 |
|
BL-LS3224A0E1LRC |
Super Red |
AlGaAs |
660 |
Water Clear |
2.3 |
25 |
35 |
50 |
|
BL-LS3224A0E1PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
350 |
500 |
50 |
|
BL-LS3224A0E1SRC |
Super Red |
AlGaAs |
660 |
Water Clear |
2.3 |
15 |
25 |
50 |
|
BL-LS3224A0E1UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
480 |
600 |
50 |
|
BL-LS3224A0E1UDR |
Ultra Red |
AlGaAs |
655 |
Water Clear |
2.5 |
100 |
300 |
50 |
|
BL-LS3224A0E1UEC |
Ultra Red |
AlGaAs |
630 |
Water Clear |
2.5 |
350 |
500 |
50 |
|
BL-LS3224A0E1UGC |
Ultra Green |
AlGaInP |
575 |
Water Clear |
2.7 |
345 |
500 |
50 |
|
BL-LS3224A0E1UHD |
Ultra Red |
AlGaAs |
618 |
Water Clear |
2.6 |
200 |
600 |
50 |
|
BL-LS3224A0E1UHR |
Ultra Red |
AlGaAs |
645 |
Water Clear |
2.6 |
150 |
400 |
50 |
|
BL-LS3224A0E1UWC |
Ultra White |
InGaN |
/ |
Water Clear |
4.2 |
200 |
800 |
50 |
|
BL-LS3224A0E1UYC |
Ultra Yellow |
AlGaInP |
593 |
Water Clear |
2.6 |
190 |
250 |
50 |
|
BL-LS3224A0E1UYO |
Ultra Amber |
AlGaInP |
610 |
Water Clear |
2.6 |
300 |
480 |
50 |
|
BL-LS3224A0E1YC |
Yellow |
GaAsP |
583 |
Water Clear |
2.7 |
5 |
15 |
50 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
