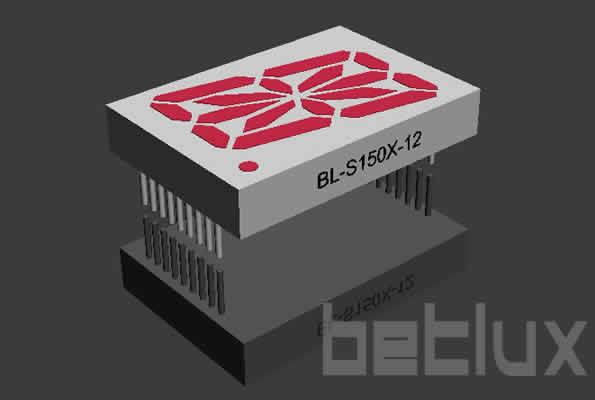

1.50 inch single-digit alphanumeric led dispaly

1.50 inch single-digit alphanumeric led dispaly

Series No:

BL-S150A-12

Weight:(g/pcs)

12.8

Dimension:(mm)

31 x 44 x 8.5

Character Height: (inch)

1.50 inch

Specification:

download

Inquiry

Description:

Introduction

The 1.50 inch single-digit alphanumeric LED display is a crucial component in the electronics industry, known for its clarity, efficiency, and versatility. This display type, often referred to as a 16 segment display or utilized in 7 seven segment display applications, is widely used across various sectors due to its high performance and reliability. In this article, we will explore the key features, applications, and benefits of the 16 segment display. Additionally, we will present case studies and user testimonials to illustrate its practical utility for electronics manufacturers, engineers, and purchasers.

Features of the 1.50 Inch Single-Digit Alphanumeric LED Display

The 1.50 inch single-digit alphanumeric LED display boasts several notable features that make it a preferred choice in the industry:

  • High Brightness and Clarity: This display ensures excellent visibility, making it easy to read even in low-light conditions.
  • Alphanumeric Capability: This display supports both letters and numbers, enhancing its versatility in various applications.
  • Large Digit Size: The 1.50 inch size provides a clear, large digit display that enhances readability.
  • Energy Efficiency: Utilizing LED technology, these displays consume minimal power, making them ideal for battery-operated devices.
  • Durability: Designed to withstand various environmental conditions, these displays are robust and long-lasting.

Applications of the 1.50 Inch Single-Digit Alphanumeric LED Display

This versatile display is used in a wide array of applications due to its adaptability and functionality:

  • Digital Clocks and Timers: Commonly used in digital clocks, countdown timers, and stopwatches, providing precise timekeeping and easy readability.
  • Measurement Instruments: Utilized in devices such as voltmeters, ammeters, and multimeters to display accurate readings.
  • Consumer Electronics: Widely used in household appliances like microwaves, ovens, and air conditioners for displaying settings and timings.
  • Automotive Displays: Employed in car dashboards to show critical information such as speed, temperature, and other essential data points.
  • Medical Devices: Integrated into medical equipment to display vital information such as heart rate and blood pressure.
  • Information Displays: Used in public information systems such as airport displays and public transport signage.

Benefits of Using a 16 Segment Display

Clarity and Readability: The high brightness and contrast of the 16 segment display ensure that both letters and numbers are easy to read from a distance, enhancing usability in various environments.

Versatility: The ability to display both alphanumeric characters makes it suitable for a wide range of applications, from simple numeric displays to more complex informational displays.

Space Efficiency: The compact design of the 1.50 inch single-digit alphanumeric LED display makes it perfect for devices with limited space, allowing for more efficient use of the available area.

Cost-Effectiveness: These displays provide an economical solution compared to other display technologies, making them a cost-effective choice for many applications.

Reliability: With a robust design and long lifespan, these displays offer reliable performance, reducing the need for frequent replacements and maintenance.

Ease of Use: The straightforward configuration of the 7 seven segment display simplifies wiring and integration, making it accessible for both professionals and hobbyists.

Integration with Different Types of Display 7 Seg Arduino Configurations

The 1.50 inch single-digit alphanumeric LED display is available in various configurations, including display 7 seg Arduino types. This flexibility allows for versatile usage and makes it suitable for various circuit designs and applications. The ability to choose between different types of digit displays, such as digit 7 segment display, provides designers with the adaptability needed to meet specific project requirements.

Case Studies

Case Study 1: Industrial Equipment Monitoring

A manufacturing company integrated the 1.50 inch single-digit alphanumeric LED display into their equipment monitoring systems. The displays provided clear, real-time data on machine performance, which improved maintenance schedules and reduced downtime by 20%.

Case Study 2: Enhancing Consumer Electronics

A home appliance manufacturer used these displays in their new line of microwaves. Customers appreciated the clear, bright display of cooking times and settings, leading to a 15% increase in customer satisfaction and a reduction in user errors.

User Testimonials

John S., Electronics Engineer: “I’ve been using the 1.50 inch single-digit alphanumeric LED display in my projects for years. Its reliability and ease of use make it my go-to choice for numeric and alphanumeric displays.”

Emily R., Product Designer: “These displays are fantastic for consumer electronics. Our latest product line saw a significant boost in user satisfaction thanks to the clear, bright display.”

Conclusion

The 1.50 inch single-digit alphanumeric LED display is a versatile and reliable component, ideal for a wide range of applications from industrial equipment to consumer electronics. Its features, including high brightness, alphanumeric capability, durability, and ease of integration, make it an excellent choice for displaying both numeric and alphabetic information. Whether you are an electronics manufacturer, engineer, or product designer, this display offers a cost-effective solution to meet your needs.

Call to Action

Ready to enhance your next project with a reliable and clear display? Consider the 1.50 inch single-digit alphanumeric LED display. For more information and to place an order, visit our website or contact our sales team today.

1.50 inch single-digit alphanumeric led dispaly
1.50 inch single-digit alphanumeric led dispaly

Features

  • 1.50-Inch Digit Height (38.10mm): Offers clear visibility for numeric displays, suitable for various applications where medium-sized digits are required.
  • Dimensions (Width x Height): 31 x 44.0mm: Compact enough for diverse uses while maintaining good visibility.
  • Bi-Color Selected: Provides the ability to display information in two different colors, enhancing the display’s utility and aesthetic appeal.
  • Single Decimal Point: Adds the capability to show decimal values, increasing its utility across different contexts.
  • Common Anode or Cathode Selection: Flexible design allowing for integration into different types of electronic systems based on circuit requirements.
  • Low Current Operation: Energy-efficient, beneficial for applications where power conservation is important.
  • Excellent Character Appearance: Ensures that numbers are displayed clearly and sharply for easy readability.
  • High Light Output: Bright enough to be easily readable in a variety of lighting conditions.
  • Easy Mounting on PC Boards or Sockets: Facilitates straightforward installation, suitable for various mounting setups.
  • IC Compatible: Can be integrated with integrated circuits, making it suitable for advanced electronic control systems.
  • Multicolor Availability: Indicates the availability of displays in various colors, adding versatility in design and functionality.
  • Categorized for Luminous Intensity: Ensures consistent brightness levels across units, important for uniform display quality.
  • Technically Rugged: Durable and reliable, capable of withstanding various operational conditions.
  • Standard Design: Gray Surface, White Segment: Offers a visually appealing and easy-to-read display.
  • RoHS Compliance: Adheres to environmental safety standards, avoiding the use of hazardous substances.

Applications

  • Public Information Displays: Ideal for medium-sized displays in public areas, such as transport stations or information boards.
  • Industrial Control Panels: Suitable for use in industrial settings where clear, color-coded numeric displays are necessary for monitoring and control.
  • Retail and Advertising Displays: Effective in retail settings or for advertising purposes where eye-catching, color-variable numeric displays are beneficial.
  • Educational Tools: Can be used in educational settings for displaying numeric information or as a teaching aid.
  • Healthcare Equipment: Appropriate in healthcare settings for equipment that requires medium-sized, easy-to-read numeric displays with color differentiation.
  • Event and Timing Displays: Suitable for events or competitions where timing or scoring needs to be displayed clearly with color distinction.
Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No. (Cathode)
Part No. (Anode)
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ.(v)
Voltage max. (v)
Luminous min
Luminous typ
BL-S150A-12B
BL-S150B-12B
ultra Blue
InGaN/SiC
470
4.2
40
70
BL-S150A-12D
BL-S150B-12D
Super Red
GaAlAs/DH
660
2.2
50
75
BL-S150A-12E
BL-S150B-12E
Orange
GaAsP/GaP
635
2.5
27
40
BL-S150A-12G
BL-S150B-12G
Green
GaP/GaP
570
2.5
30
45
BL-S150A-12H
BL-S150B-12H
Red
GaP/GaP
700
2.6
BL-S150A-12PG
BL-S150B-12PG
Ultra Pure Green
InGaN/SiC
525
4.2
47
70
BL-S150A-12S
BL-S150B-12S
Hi Red
GaAlAs/SH
660
2.2
25
50
BL-S150A-12UB
BL-S150B-12UB
ultra Blue
InGaN/SiC
470
4.2
45
75
BL-S150A-12UE
BL-S150B-12UE
Ultra Orange
AlGaInP
630
2.5
35
65
BL-S150A-12UG
BL-S150B-12UG
Ultra Green
AlGaInP
574
2.5
36
54
BL-S150A-12UR
BL-S150B-12UR
Ultra Red
GaAlAs/DDH
660
2.2
65
85
BL-S150A-12UY
BL-S150B-12UY
Ultra Yellow
AlGaInP
590
2.5
42
55
BL-S150A-12W
BL-S150B-12W
Ultra White
InGaN
-
4.2
120
BL-S150A-12Y
BL-S150B-12Y
Yellow
GaAsP/GaP
585
2.5
30
45
Package configuration & Internal circuit diagram
1.50 inch single-digit alphanumeric led dispaly


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display

More information

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
dvd player radio train instrument refrigerator

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Scroll to Top
