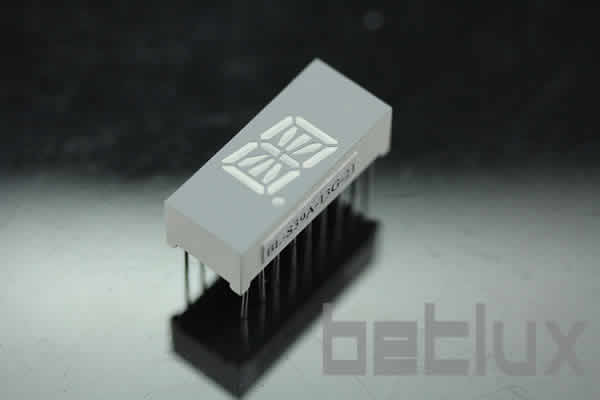

0.39 inch single-digit alphanumeric led dispaly

0.39 inch single-digit alphanumeric led dispaly

Series No:

BL-S39A-13

Weight:(g/pcs)

1.8

Dimension:(mm)

10 x 24 x 7

Character Height: (inch)

0.39 inch

Specification:

download

Inquiry

Description:

The 0.39 inch single-digit alphanumeric LED display, often referred to as a 7 segment display or a 7 segment display RGB, is an essential component in many electronic devices. This article delves into the features, benefits, applications, case studies, and user testimonials of this versatile display technology. Designed for electronics manufacturers, engineers, purchasers, and administrators, this comprehensive guide will help you understand why the 0.39 inch single-digit alphanumeric LED display is an excellent choice for your electronic projects.

Features of the 0.39 Inch Single-Digit Alphanumeric LED Display

Versatility in Display The 0.39 inch single-digit alphanumeric LED display can show both numbers and letters, providing greater flexibility compared to traditional numeric-only displays. This versatility is especially useful in applications where both numerical and alphabetical characters need to be displayed.

High Brightness and RGB Capability This 7 segment display RGB offers high brightness, making it readable even in low-light conditions. The RGB capability allows for multiple color displays, enhancing the visual appeal and functionality of the device.

Compact and Efficient The compact size of the 0.39 inch alphanumeric display makes it ideal for small devices and applications where space is limited. Despite its small size, it maintains high efficiency and visibility, crucial for portable and handheld devices.

Durability and Reliability Built to withstand rigorous use, the 0.39 inch single-digit alphanumeric LED display offers excellent durability and reliability. This ensures consistent performance and longevity, even in demanding environments.

Easy Integration and Compatibility The 7 segment display common anode datasheet provides detailed information that simplifies the integration of the display into various electronic circuits and systems. Its compatibility with standard driving electronics makes it an accessible choice for engineers.

Applications of the 0.39 Inch Single-Digit Alphanumeric LED Display

Consumer Electronics In consumer electronics, this alphanumeric display is commonly used in devices such as digital clocks, remote controls, and home appliances. Its ability to display both numbers and letters makes it a versatile component for a variety of products.

Industrial Equipment Industrial equipment often relies on the 0.39 inch single-digit alphanumeric LED display for control panels, measurement devices, and monitoring systems. Its robustness and readability are essential in these applications.

Medical Devices Medical devices, including glucometers, digital thermometers, and patient monitoring systems, utilize the 7 segment display for clear and accurate readings. The display’s reliability is critical in these life-saving applications.

Automotive Displays Automotive dashboards and instruments, such as odometers and speedometers, benefit from the durability and visibility of the 0.39 inch alphanumeric display. Its compact size fits well into the confined spaces of vehicle interiors.

Telecommunications Equipment In telecommunications, the alphanumeric display is used in equipment for status indicators and diagnostic displays. Its clear visibility helps technicians quickly assess and troubleshoot issues.

Benefits of the 0.39 Inch Single-Digit Alphanumeric LED Display

Enhanced User Experience The alphanumeric display’s ability to show both letters and numbers enhances user interaction, providing clear and comprehensive information.

Energy Efficiency With its low power consumption, the 0.39 inch single-digit alphanumeric LED display is energy-efficient, making it suitable for battery-operated devices. This efficiency extends the operational life of portable devices.

Cost-Effective Solution The display’s durability reduces the need for frequent replacements and maintenance, offering a cost-effective solution for long-term applications.

Improved Design Flexibility The compact size and easy integration of the alphanumeric display allow for greater design flexibility in electronic devices. Engineers can incorporate the display into a wide range of products without compromising on space or functionality.

Case Studies

Case Study 1: Digital Thermometers A medical device manufacturer incorporated the 0.39 inch single-digit alphanumeric LED display into their digital thermometers. The display’s brightness and clarity significantly improved the readability of temperature readings, leading to positive feedback from both healthcare professionals and patients.

Case Study 2: Industrial Control Panels An industrial automation company integrated the alphanumeric display into their control panels. The ability to display both numerical and alphabetical characters enhanced the user interface, making it easier for operators to monitor and control machinery.

User Testimonials

Emily R., Electronics Engineer “The 0.39 inch single-digit alphanumeric LED display has been a game-changer for our portable devices. Its compact size and high brightness have allowed us to create more user-friendly products without sacrificing performance.”

Michael S., Purchasing Manager “We chose the 0.39 inch alphanumeric display for our industrial equipment because of its durability and ease of integration. The detailed datasheet made the installation process straightforward, and the display’s performance has been outstanding.”

Conclusion

The 0.39 inch single-digit alphanumeric LED display is a versatile and reliable component suitable for various applications, including consumer electronics, industrial equipment, medical devices, automotive displays, and telecommunications equipment. Its features, such as high brightness, compact size, energy efficiency, durability, and easy integration, make it an excellent choice for engineers and manufacturers.

If you’re looking to enhance the functionality and user experience of your electronic devices, consider incorporating the 0.39 inch single-digit alphanumeric LED display. Its benefits and proven performance in various applications demonstrate its value and reliability.

Call to Action: Elevate your electronic products with the versatile and efficient 0.39 inch single-digit alphanumeric LED display. Contact us today to learn more about integrating this advanced display technology into your designs.

0.39 inch single-digit alphanumeric led dispaly
0.39 inch single-digit alphanumeric led dispaly

0.39 inch single alpha-Numeric LED display

  • 0.39 inch digit height (9.90mm)
  • Width x height: 10.00 x 24.00mm
  • Single decimal point
  • Single LED chip per segment
  • Common anode or common cathode selected
  • Low current operation
  • Common anode and common cathode available
  • Excellent character appearance
  • High light output
  • Easy mounting on PC boards or sockets
  • IC compatible
  • Multicolor available
  • Categorized for luminous intensity
  • Technically rugged
  • Standard: gray surface, white segment
  • RoHs compliance

These features make this LED display suitable for a wide range of applications in various industries, including but not limited to:

  • Industrial control panels
  • Medical equipment
  • Consumer electronics
  • Instrumentation
  • Test equipment
  • Communication devices
  • Automotive displays
  • Audio/visual equipment
  • Avionics displays
Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No. (Cathode)
Part No. (Anode)
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ.(v)
Voltage max. (v)
Luminous min
Luminous typ
BL-S39A-13B
BL-S39B-13B
ultra Blue
InGaN/SiC
470
4.2
25
35
BL-S39A-13D
BL-S39B-13D
Super Red
GaAlAs/DH
660
2.2
11
20
BL-S39A-13E
BL-S39B-13E
Orange
GaAsP/GaP
635
2.5
9
15
BL-S39A-13G
BL-S39B-13G
Green
GaP/GaP
570
2.5
9
15
BL-S39A-13H
BL-S39B-13H
Red
GaP/GaP
700
2.6
0.5
1
BL-S39A-13PG
BL-S39B-13PG
Ultra Pure Green
InGaN/SiC
525
4.2
15
22
BL-S39A-13S
BL-S39B-13S
Hi Red
GaAlAs/SH
660
2.2
5
10
BL-S39A-13UB
BL-S39B-13UB
ultra Blue
InGaN/SiC
470
4.2
30
45
BL-S39A-13UE
BL-S39B-13UE
Ultra Orange
AlGaInP
630
2.5
12
18
BL-S39A-13UG
BL-S39B-13UG
Ultra Green
AlGaInP
574
2.5
11
20
BL-S39A-13UR
BL-S39B-13UR
Ultra Red
GaAlAs/DDH
660
2.2
14
23
BL-S39A-13UY
BL-S39B-13UY
Ultra Yellow
AlGaInP
590
2.5
11
18
BL-S39A-13W
BL-S39B-13W
Ultra White
InGaN
-
4.2
32
BL-S39A-13Y
BL-S39B-13Y
Yellow
GaAsP/GaP
585
2.5
9
15
Package configuration & Internal circuit diagram
0.39 inch single-digit alphanumeric led dispaly


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display

More information

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
dvd player radio train instrument refrigerator

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
