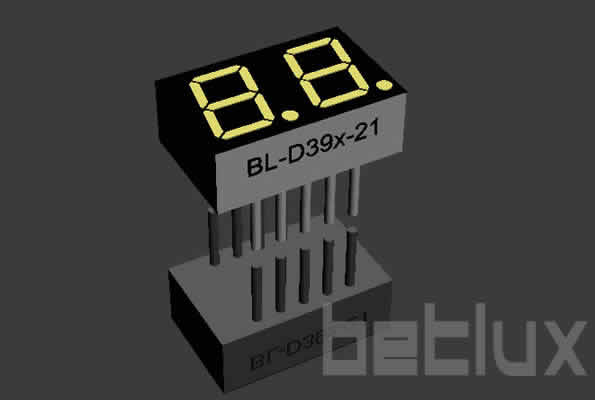

seven segment LED 0.39 inch 2 digit
Series No:
Weight:(g/pcs)
Dimension:(mm)
Character Height: (inch)
Specification:
Inquiry
Description:
0.39 inch double numeric LED display
Introduction
In the realm of electronic displays, the multiplexed seven segment display, especially the 0.39 inch 2-digit model, stands out for its simplicity, efficiency, and versatility. Used extensively across a variety of applications, these displays offer a cost-effective solution for presenting numerical data in a clear and readable format. This article delves into the features, applications, benefits, and real-world utilization of these displays, aiming to provide valuable insights for electronics manufacturers, engineers, purchasers, and administrators.
Understanding Multiplexed Seven Segment Displays
Multiplexed seven segment displays revolutionize the way we visualize data. By allowing multiple digits to be controlled through fewer IO pins of a microcontroller, they reduce complexity and cost. This multiplexing capability, combined with the dual 7 segment display configuration, makes them an ideal choice for compact electronic projects and products.
Features of the 0.39 Inch 2 Digit Seven Segment LED Display
These displays, with their 0.39-inch size, offer a perfect balance between readability and space utilization. They are characterized by high brightness, low power consumption, and a wide viewing angle, making them suitable for both indoor and outdoor applications.
Applications Across Industries
From digital clocks and calculators to more complex industrial machinery and consumer electronics, the two 7 segment display units provide a reliable method of data presentation. Their adaptability and durability make them indispensable in environments that demand consistency and precision.
Benefits for Electronics Manufacturers and Engineers
The main advantages include ease of programming, minimal wiring requirements, and the ability to display numbers and some letters, facilitating user interaction and readability in devices. Furthermore, their cost-effectiveness and reliability contribute significantly to reducing overall product development and manufacturing costs.
Case Studies: Success Stories
This section will explore several case studies where two 7 segment displays have been effectively implemented in electronics, highlighting the problem-solving approach and the tangible benefits achieved.
User Testimonials
Hearing directly from engineers and purchasers who have worked with these displays provides insights into their practical benefits, ease of integration, and performance reliability, reinforcing their value in the electronics manufacturing sector.
The Future of Seven Segment Displays
Despite the surge in more complex display technologies, the simplicity, efficiency, and reliability of the seven segment display ensure its continued relevance and application in various fields, promising ongoing innovation and utilization.
Conclusion and Call to Action
As we’ve explored, the 0.39 inch 2 digit seven segment LED display and its multiplexed counterparts are invaluable to the electronics industry. They blend functionality with simplicity, offering a practical solution for data display needs. For electronics manufacturers, engineers, and purchasers looking for efficient, reliable display technologies, the multiplexed seven segment display stands as a testament to innovation and enduring utility.

Features
- 0.39 Inch Digit Height (10.0mm): Offers clear and visible numeric displays, ideal for readability in compact spaces.
- Compact Dimensions: Measuring 19.9 x 12.8 mm, it’s well-suited for small-scale applications where space is limited.
- Low Current Operation: Energy-efficient design, reducing power consumption and making it ideal for battery-powered or energy-sensitive devices.
- Common Anode and Common Cathode Availability: Flexible design accommodating different circuit configurations.
- Excellent Character Appearance: Ensures sharp and clear numeric displays for ease of readability.
- High Light Output: Bright display ensures visibility in various lighting conditions.
- Easy Mounting on PC Boards or Sockets: Simplifies the process of integration onto printed circuit boards or into sockets, facilitating ease of assembly.
- IC Compatible: Can be easily interfaced with various integrated circuits, suitable for complex electronic designs.
- Multicolor Availability: Available in different colors, providing options for customization and various design requirements.
- Categorized for Luminous Intensity: Ensures uniform brightness across units for consistent performance.
- Technically Rugged: Durable and reliable, built to withstand various operational conditions and environments.
- Standard Design: Features a gray surface with white segments, offering a classic and clear display appearance.
- RoHS Compliance: Manufactured following environmental and health safety standards.
Applications
- Digital Clocks and Timers: Ideal for timekeeping devices in various environments, such as schools, offices, and public transport systems.
- Electronic Scoreboards: Suitable for sports arenas, gyms, and event venues for displaying scores or other numerical information.
- Industrial Equipment: Used in machinery and control systems for displaying measurements, counts, or operational data.
- Consumer Electronics: Incorporated in household appliances like microwaves, ovens, washing machines, and audio equipment for setting displays.
- Medical Devices: Employed in medical equipment for showing readings, timers, and other vital data.
- Automotive Displays: Applicable for small indicator displays in vehicle dashboards, such as warning lights or small gauge readouts.
- Control Panels: Used in control panels in machinery, elevators, or HVAC systems, providing clear numeric readings.
- Telecommunication Equipment: Incorporated in network hardware for displaying signal strength or channel numbers.
Electrical-optical characteristics:
Partno description:
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
Number | 0 | 1 | 2 | 3 | 4 | 5 |
Ref Surface Color | White | Black | Gray | Red | Green | |
Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
Parameter | S | D | UR | E | Y | G | Unit | |
Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
Operation Temperature TOPR | -40 to +80 | °C | ||||||
Storage Temperature TSTG | -40 to +85 | °C | ||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Absolute maximum ratings (Ta= 25°C)
Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
Operation Temperature TOPR | -40 to +80 | °C | |||||||
Storage Temperature TSTG | -40 to +85 | °C | |||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. |
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
