1.5 inch height 16×16 LED dot matrix

Series No:

BL-M15AFF1

Weight:(g/pcs)

8

Dimension:(mm)

40 x 40 x 3.5

Dot height:(mm)

1.5 inch

Dot pitch:(mm)

2.5mm

Dot size:(mm)

1.8mm

Specification:

download

Inquiry

Description:

Introduction In the fast-evolving world of electronic displays, the “16×16 LED matrix” has emerged as a game-changer. With its 1.5 inch height configuration, this LED matrix combines compact design with high performance, making it an ideal choice for a variety of applications. This article delves into the unique features, diverse applications, and numerous benefits of the 16×16 LED matrix, enriched by detailed case studies and enthusiastic user testimonials.

Key Features of the 1.5 Inch 16×16 LED Dot Matrix The 16×16 LED matrix stands out for its dense configuration of LEDs in a relatively small space, offering superior clarity and flexibility for developers and engineers:

  • High Resolution: With 256 LEDs packed into a 16 by 16 grid, it provides excellent resolution for its size, allowing for detailed graphics and crisp text.
  • Scalability: Multiple units can be seamlessly combined to create larger display panels.
  • Energy Efficiency: LEDs are known for their low power consumption, making this matrix an eco-friendly choice for continuous operation.

Versatile Applications The adaptability of the “matrix LED display” means it is a perfect fit for several innovative uses:

  • Digital Signage: Ideal for displaying advertisements, information, and alerts in public and retail spaces.
  • Interactive Art: Artists frequently employ these matrices in interactive installations, attracting viewers with dynamic, responsive visual elements.
  • Wearable Technology: Used in advanced wearable devices to display notifications and other important information directly to the user.

Advantages of Using the 16×16 LED Matrix Employing a 16×16 LED matrix offers significant advantages, including:

  • Customizability: Each LED can be individually programmed, offering limitless possibilities for custom display solutions.
  • Durability: LEDs offer long service life and low maintenance costs compared to traditional display technologies.
  • Visual Impact: The ability to display more complex images and animations makes it highly effective for user engagement.

Case Study: Retail Advertising Enhancement A national retail chain implemented the 16×16 LED matrix in their stores for dynamic advertising displays. This technology allowed them to update content quickly and effectively, resulting in a 35% increase in noted customer engagement compared to static signage.

User Testimonials “Our switch to the 16×16 LED matrix displays has transformed our operation efficiency and customer interactions. The clarity and ease of use are unmatched,” shares Mark Thompson, a technology administrator at a leading electronics manufacturing firm.

Conclusion and Call to Action The 1.5 inch height 16×16 LED dot matrix represents a significant advancement in LED technology, offering both versatility and high performance in a compact package. Its wide range of applications and benefits make it a valuable asset for any technology-driven project.

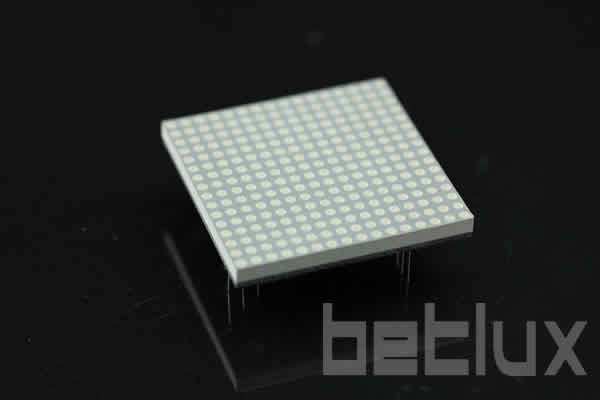

1.5 inch height 16x16 LED dot matrix
1.5 inch height 16×16 LED dot matrix

Features

  • Matrix Dimensions: The matrix has a height of 40mm and a width of 40.00mm, providing a balanced display area in a compact size.
  • Dot Size and Shape: Each dot is 1.80mm in size and circular in shape, offering clarity and precision in display.
  • High Dot Count: With 16 columns and 16 rows, the matrix offers a total of 256 dots, allowing for detailed and intricate displays.
  • Low Current Operation: Designed for low current usage, it is energy-efficient and suitable for long-term operation without excessive power consumption.
  • High Contrast and Brightness: Ensures excellent visibility and readability, even in bright environments.
  • Code Compatibility: The matrix is compatible with ASCII and EBCDIC codes, allowing for versatility in programming and display content.
  • Horizontal Stackability: It can be stacked horizontally, enabling the creation of larger, more expansive display panels.
  • Dual Anode/Cathode Options: Available with both column cathode and anode configurations, providing flexibility for different circuit designs.
  • Ease of Mounting: Designed for straightforward mounting on printed circuit boards or sockets, simplifying integration into various projects.
  • Luminous Intensity Categorization: The LED dots are categorized for luminous intensity, ensuring uniform brightness across the display.
  • Durability: The matrix is technically rugged, offering durability and reliability for various applications.
  • Aesthetic Design: Features a standard gray surface with white dots for a professional and neutral look.
  • Environmental Compliance: RoHS compliant, indicating environmentally friendly manufacturing processes.

Applications

  • Advanced Electronic Signage: Ideal for creating complex and dynamic signs for advertising, public information, or event displays.
  • Detailed Information Panels: Suitable for use in transportation systems, control rooms, or public areas for displaying detailed information.
  • Interactive Art and Design: Can be used in interactive art installations or design projects due to its high resolution and flexibility.
  • Educational Purposes: Useful in educational environments for teaching electronics, programming, or for creating interactive educational tools.
  • Gaming and Entertainment Devices: Appropriate for gaming consoles, arcade machines, or other entertainment systems requiring high-resolution displays.
  • Customized Clocks and Timers: Perfect for building intricate custom clocks, timers, or countdown devices.
  • Industrial Control Panels: Applicable in industrial settings for control interfaces, providing clear and detailed status indicators.
  • Prototyping and DIY Projects: An excellent choice for hobbyists and DIY enthusiasts for creating custom lighting solutions, gadgets, or experimental projects.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No.(Row Cathode)
Part No. (Row Anode)
Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage Max. (v)
Luminous Min.
Luminous typ.
BL-M15AFF1B
BL-M15BFF1B
ultra Blue
InGaN/SiC
470
4.2
180
250
BL-M15AFF1D
BL-M15BFF1D
Super Red
GaAlAs/DH
660
2.2
525
750
BL-M15AFF1E
BL-M15BFF1E
Orange
GaAsP/GaP
635
2.5
280
400
BL-M15AFF1G
BL-M15BFF1G
Green
GaP/GaP
570
2.5
260
380
BL-M15AFF1PG
BL-M15BFF1PG
Ultra Pure Green
InGaN/SiC
525
4.2
500
970
BL-M15AFF1S
BL-M15BFF1S
Hi Red
GaAlAs/SH
660
2.2
350
500
BL-M15AFF1UB
BL-M15BFF1UB
ultra Blue
InGaN/SiC
470
4.2
220
360
BL-M15AFF1UE
BL-M15BFF1UE
Ultra Orange
AlGaInP
630
2.5
500
800
BL-M15AFF1UG
BL-M15BFF1UG
Ultra Green
AlGaInP
574
2.5
420
620
BL-M15AFF1UR
BL-M15BFF1UR
Ultra Red
GaAlAs/DDH
660
2.2
600
950
BL-M15AFF1UY
BL-M15BFF1UY
Ultra Yellow
AlGaInP
590
2.5
500
800
BL-M15AFF1W
BL-M15BFF1W
Ultra White
InGaN
-
4.2
700
BL-M15AFF1Y
BL-M15BFF1Y
Yellow
GaAsP/GaP
585
2.5
280
400
Package configuration & Internal circuit diagram
1.5 inch height 16x16 LED dot matrix


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED dot matrix is widely used in LED information board indoor and semi-outdoor

Part No of LED dot matrix

More Information

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Dot Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
trainbus information boardLED screnmessage boardindustry instrument

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
