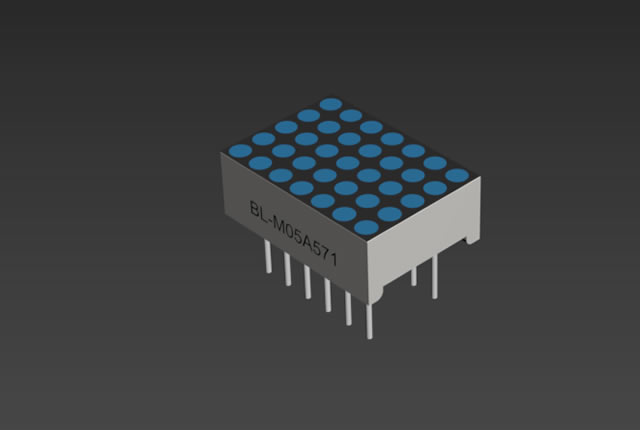

Features: 0.5 inch height 5×7 LED Dot Matrix
- Matrix height: 19.7mm
- Dot size: 1.90mm (circle dot)
- Column: 5, Row: 7
- Overall dimensions: 12.70 x 17.80mm
- Low current operation
- High contrast and light output
- Compatible with ASCII
- RoHS compliant
Applications:
- Message displays
- Scrolling marquees
- Information boards
- Electronic gadgets
- Industrial displays
- Consumer electronics
- Scoreboards
- Numeric and alphanumeric displays
Electrical-optical characteristics:
Part No.(Row Cathode) | Part No. (Row Anode) | Color | Material | Peak Wavelength (nm) | Voltage typ. (v) | Voltage Max. (v) | Luminous Min. | Luminous typ. |
|---|---|---|---|---|---|---|---|---|
BL-M05A571B-XX |
BL-M05B571B-XX |
Ultra Blue |
InGaN |
470 |
4.2 |
70 |
||
BL-M05A571D-XX |
BL-M05B571D-XX |
Super Red |
GaAlAs/GaAs,DH |
660 |
2.2 |
100 |
||
BL-M05A571E-XX |
BL-M05B571E-XX |
Red |
GaAsP/GaP |
635 |
2.5 |
70 |
||
BL-M05A571G-XX |
BL-M05B571G-XX |
Green |
GaP/GaP |
570 |
2.5 |
75 |
||
BL-M05A571PG-XX |
BL-M05B571PG-XX |
Ultra Pure Green |
InGaN |
525 |
4.5 |
120 |
||
BL-M05A571S-XX |
BL-M05B571S-XX |
Hi Red |
GaAlAs/GaAs,SH |
660 |
2.2 |
80 |
||
BL-M05A571UE-XX |
BL-M05B571UE-XX |
Ultra Red |
AlGaInP |
630 |
2.5 |
80 |
||
BL-M05A571UG-XX |
BL-M05B571UG-XX |
Ultra Green |
AlGaInP |
574 |
2.5 |
90 |
||
BL-M05A571UHR-XX |
BL-M05B571UHR-XX |
Ultra Red |
AlGaInP |
645 |
2.5 |
100 |
||
BL-M05A571UR-XX |
BL-M05B571UR-XX |
Ultra Red |
GaAlAs/GaAs,DDH |
660 |
2.2 |
100 |
||
BL-M05A571UY-XX |
BL-M05B571UY-XX |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
80 |
||
BL-M05A571W-XX |
BL-M05B571W-XX |
Ultra White |
InGaN |
/ |
4.2 |
80 |
||
BL-M05A571Y-XX |
BL-M05B571Y-XX |
Yellow |
GaAsP/GaP |
585 |
2.5 |
70 |
||
BL-M05A571YO-XX |
BL-M05B571YO-XX |
Ultra Amber |
AlGaInP |
619 |
2.5 |
80 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED dot matrix is widely used in LED information board indoor and semi-outdoor
More Information
Reflector Surface color (1st number)/ dot Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Dot Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
