Description:
The SMD seven segment display 0.4 inch 3 digit is an essential component in modern electronics, providing clear numerical displays in various devices. This article will explore the features, applications, benefits, case studies, and user testimonials of this display, focusing on optimizing SEO with key phrases such as “smd 7 segment” and “7 segment display ca.”
Features of the SMD Seven Segment Display 0.4 Inch 3 Digit
Compact and Versatile Design The SMD seven segment display 0.4 inch 3 digit is designed for efficiency and versatility. Its compact size allows it to fit into small spaces without sacrificing readability. This makes it ideal for applications where space is at a premium, such as handheld devices and compact equipment.
Common Anode Configuration One of the standout features of this display is its common anode (CA) configuration. The “7 segment display ca” setup simplifies the driving circuit design, making it easier to integrate into various electronic systems. This configuration is widely used due to its simplicity and compatibility with standard driving methods.
High Visibility and Durability The SMD seven segment display offers high visibility, ensuring that numbers are clearly readable even in challenging lighting conditions. Additionally, it is built to withstand harsh environments, providing durability and reliability over extended periods.
Applications of the SMD Seven Segment Display 0.4 Inch 3 Digit
Consumer Electronics In consumer electronics, the SMD seven segment display is commonly found in devices such as digital clocks, kitchen appliances, and remote controls. Its clear display and low power consumption make it a popular choice for these applications. The “led and seven segment display” combination ensures efficient energy use while maintaining high performance.
Industrial Equipment The 0.4 inch 3 digit SMD seven segment display is also integral to industrial equipment, including control panels, measurement instruments, and timers. Its robustness and clarity ensure consistent performance in demanding industrial environments. The common anode configuration simplifies the control circuit designs, enhancing reliability and efficiency.
Medical Devices In medical devices, this display is used in diagnostic tools and patient monitoring systems. The precision and clarity of the display are essential for providing accurate information, improving patient care and safety. The SMD seven segment display’s compact size allows it to be used in portable medical devices, making it a versatile choice in the healthcare industry.
Benefits of the SMD Seven Segment Display 0.4 Inch 3 Digit
Energy Efficiency The SMD seven segment display is designed to consume minimal power, making it an energy-efficient choice for battery-operated devices and other applications where power consumption is critical. This efficiency is achieved without compromising on brightness or visibility.
Easy Integration The common anode configuration and detailed datasheets make the SMD seven segment display easy to integrate into various electronic systems. This ease of integration streamlines the development process for engineers and designers, saving time and resources.
Enhanced User Experience The high visibility and clarity of the SMD seven segment display significantly enhance the user experience. Whether in consumer electronics or industrial equipment, this display ensures that numerical information is easily accessible and readable, contributing to overall user satisfaction.
Case Studies
Case Study 1: Consumer Electronics A leading manufacturer of digital clocks integrated the 0.4 inch 3 digit SMD seven segment display into their products. The result was a sleek, modern clock that quickly gained popularity due to its clear display and low power consumption. The common anode configuration facilitated a smooth integration process, enhancing product performance.
Case Study 2: Industrial Equipment An industrial machinery manufacturer utilized the SMD seven segment display in their control panels. The displays provided reliable performance, reducing downtime and maintenance costs. The compact size and durability of the displays increased overall productivity and operator satisfaction.
Case Study 3: Medical Devices A medical device company incorporated the 0.4 inch 3 digit SMD seven segment display into their diagnostic tools. The displays offered clear and accurate readings, crucial for patient care. This integration led to positive feedback from healthcare professionals and patients alike, highlighting the display’s reliability and precision.
User Testimonials
Testimonial 1: Electronics Engineer “As an engineer, I rely on detailed datasheets for designing circuits. The 0.4 inch 3 digit SMD seven segment display is a reliable component that has never let me down in various projects.”
Testimonial 2: Industrial Equipment Manufacturer “The durability and clarity of the common anode seven segment display have significantly improved our control panels. These displays handle the industrial environment well and provide clear data to our operators.”
Testimonial 3: Medical Device Developer “Our diagnostic devices require precise and clear data displays. The 0.4 inch 3 digit SMD seven segment display has been perfect for our needs, offering excellent readability and reliability.”
Conclusion
The SMD seven segment display 0.4 inch 3 digit is a versatile and reliable component suitable for a wide range of applications. From consumer electronics to industrial equipment and medical devices, its benefits are clear. The combination of high visibility, durability, and energy efficiency makes it a preferred choice for many engineers and manufacturers.
Whether you are designing a new product or looking to improve an existing one, the 0.4 inch 3 digit SMD seven segment display provides a dependable solution. Its features and benefits, supported by positive user experiences, underscore its value in various applications.
Call to Action
Enhance your electronic projects with the reliable and efficient 0.4 inch 3 digit SMD seven segment display. Contact us today to learn more about how this versatile display can meet your needs.

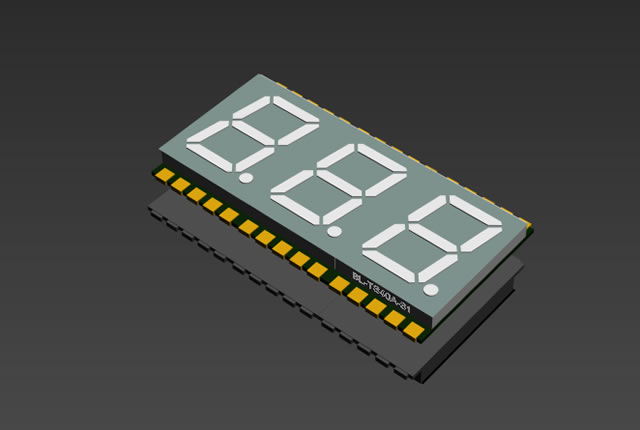

Features: 0.40 inch SMD 3 Digit Numeric LED Display
- Digit height: 10.16mm
- Overall dimensions: 18.5 x 15.00mm
- Single decimal point
- Single LED chip per segment
- Common anode or common cathode options
- Low Current Operation
Applications:
- Electronic instrumentation
- Digital clocks
- Countdown timers
- Temperature displays
- Industrial control panels
- Consumer electronics
- Measurement equipment
- Counting devices
- Scoreboards
- Time and date displays
Electrical-optical characteristics:
Part No. (Cathode) | Part No. (Anode) | Emitting Color | Material | Peak Wavelength (nm) | Voltage typ.(v) | Voltage max. (v) | Luminous min | Luminous typ |
|---|---|---|---|---|---|---|---|---|
BL-TS40A-31B-XX |
BL-TS40B-31B-XX |
Ultra Blue |
InGaN |
470 |
4.2 |
160 |
||
BL-TS40A-31D-XX |
BL-TS40B-31D-XX |
Super Red |
GaAlAs/GaAs,DH |
660 |
2.2 |
130 |
||
BL-TS40A-31E-XX |
BL-TS40B-31E-XX |
Red |
GaAsP/GaP |
635 |
2.5 |
60 |
||
BL-TS40A-31G-XX |
BL-TS40B-31G-XX |
Green |
GaP/GaP |
570 |
2.5 |
60 |
||
BL-TS40A-31PG-XX |
BL-TS40B-31PG-XX |
Ultra Pure Green |
InGaN |
525 |
4.2 |
210 |
||
BL-TS40A-31S-XX |
BL-TS40B-31S-XX |
Hi Red |
GaAlAs/GaAs,SH |
660 |
2.2 |
75 |
||
BL-TS40A-31UE-XX |
BL-TS40B-31UE-XX |
Ultra Red |
AlGaInP |
630 |
2.5 |
120 |
||
BL-TS40A-31UG-XX |
BL-TS40B-31UG-XX |
Ultra Green |
AlGaInP |
574 |
2.5 |
150 |
||
BL-TS40A-31UHR-XX |
BL-TS40B-31UHR-XX |
Ultra Red |
AlGaInP |
645 |
2.5 |
280 |
||
BL-TS40A-31UR-XX |
BL-TS40B-31UR-XX |
Ultra Red |
GaAlAs/GaAs,DDH |
660 |
2.2 |
280 |
||
BL-TS40A-31UY-XX |
BL-TS40B-31UY-XX |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
120 |
||
BL-TS40A-31W-XX |
BL-TS40B-31W-XX |
Ultra White |
InGaN |
/ |
4.2 |
240 |
||
BL-TS40A-31Y-XX |
BL-TS40B-31Y-XX |
Yellow |
GaAsP/GaP |
585 |
2.5 |
75 |
||
BL-TS40A-31YO-XX |
BL-TS40B-31YO-XX |
Ultra Amber |
AlGaInP |
619 |
2.5 |
120 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
