Series No:
Weight:(g/pcs)
Dimension:(mm)
Character Height: (inch)
Specification:
Inquiry
Description:
Introduction

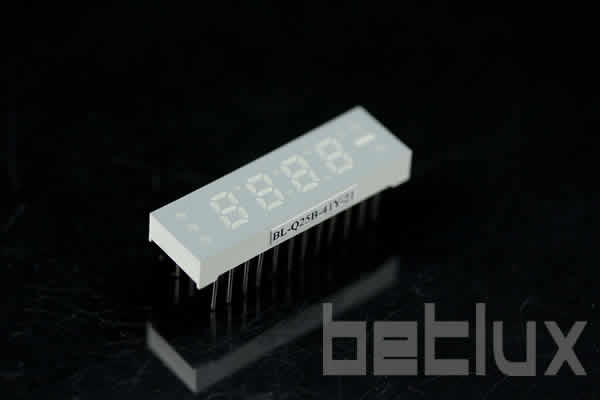

The seven segment LED display 0.25 inch revolutionizes how we view numerical data in a variety of applications. Known for its clarity and precision, the 7 digit segment design is essential for products requiring accurate, easy-to-read digital indicators. From consumer electronics to high-tech industrial equipment, this display’s versatility and reliability make it an invaluable component in modern electronic design.
Key Features of the 0.25 Inch Seven Segment LED Display
The seven segment LED display comes packed with features that make it both powerful and efficient, ideal for a multitude of applications.
High Visibility and Compact Design
- Bright, Clear Output: Each segment includes LEDs capable of emitting a strong, consistent light, ensuring the digits are readable even in varying lighting conditions.
- Space-Efficient Form Factor: The compact 0.25-inch display is perfect for small-scale devices, allowing for the integration of multiple digits without sacrificing device size or screen real estate.
Energy Efficiency and Durability
- Energy Saving: LEDs are celebrated for their low power consumption, significantly reducing the energy demands of the devices they are incorporated into.
- Robust Longevity: LED displays are known for their durability and long operational life, offering reliability that surpasses many traditional display technologies.
Applications Across Diverse Industries
The display 4 digit configuration of this LED display makes it highly adaptable to various sectors, enhancing its utility:
- Consumer Electronics: Ideal for digital clocks, calculators, and handheld gaming devices where compact and legible displays are essential.
- Automotive Instruments: Crucial for dashboard readouts such as fuel gauges and temperature monitors, where clarity and reliability are paramount.
- Medical Devices: Used in equipment like patient monitors and electronic thermometers that benefit from immediate and clear numeric displays.
Benefits of Using the 0.25 Inch Seven Segment LED Display
Integrating this LED display into products provides several advantages:
- Enhanced User Experience: The display’s ability to convey information clearly improves the overall usability of devices, making them more user-friendly.
- Cost-Effectiveness: The low power requirement and longevity of LEDs reduce both operational costs and the need for frequent replacements.
- Flexibility in Design: The standardized dimensions and simple driving requirements make these displays easy to integrate into various electronic systems.
Real-World Impact: Case Studies and User Testimonials
Case Study 1: Integration in Household Appliances
A major electronics manufacturer implemented the 0.25 inch four digit seven segment display in their latest range of programmable kitchen appliances, resulting in an enhanced user interface.
Appliance Designer’s Testimonial: “The use of the 0.25 inch 7 digit segment displays has allowed us to drastically improve the interface design of our appliances, making them more intuitive and accessible for all users, leading to a positive market reception.”
Case Study 2: Automotive Dashboard Enhancement
An automotive company incorporated these displays into the dashboards of their latest vehicle model, improving the visibility and aesthetic appeal of the driver’s console.
Automotive Engineer’s Feedback: “Integrating the 4 digit 7 segment display into our vehicle dashboards has significantly enhanced the driving experience by providing clearer and more reliable readouts, improving both safety and functionality.”
Conclusion
The seven segment LED display 0.25 inch offers a combination of efficiency, reliability, and versatility, making it a cornerstone in the development of digital display technology. Whether for consumer gadgets or specialized industrial instruments, this display is engineered to meet the demands of any application that requires high-quality digital readouts.
Call to Action: Elevate your products with our precision-engineered 0.25 inch four-digit seven segment displays. Ideal for any application demanding reliable and clear numeric displays, these units ensure performance and style. Contact us today to enhance your product designs with top-tier display technology!
Features
- 0.25-Inch Digit Height (6.20mm): Provides clear visibility for numeric displays, suitable for applications requiring small-sized digits.
- Dimensions (Width x Height): 36.00 x 11.00mm: Compact size, making it suitable for various applications where space efficiency is important.
- Low Current Operation: Energy-efficient, making it suitable for both battery-powered and low-power electronic devices.
- Common Anode and Cathode Options: Offers flexibility in circuit design, accommodating different electrical configurations.
- Excellent Character Appearance: Ensures digits are displayed clearly and legibly, enhancing readability.
- High Light Output: Bright enough for easy reading under various lighting conditions.
- Easy Mounting on PC Boards or Sockets: Designed for straightforward installation, facilitating efficient integration into electronic systems.
- IC Compatible: Can be integrated with integrated circuits, suitable for complex electronic designs.
- Multicolor Availability: Provides options for different colors, adding versatility in design and functional use.
- Categorized for Luminous Intensity: Ensures consistent brightness levels across units, important for uniform display quality.
- Technically Rugged: Durable and reliable, capable of withstanding various operational environments.
- Standard Design: Gray Surface, White Segment: Offers a classic look with high contrast for ease of reading.
- RoHS Compliance: Meets environmental standards, adhering to regulations that restrict hazardous substances.
Applications
- Industrial Control Panels: Suitable for use in industrial settings where clear, multi-digit numeric displays are necessary for monitoring and control.
- Electronic Timers and Counters: Ideal for timing devices in various settings, such as laboratories, kitchens, or industrial processes.
- Consumer Electronics: Appropriate for household appliances, digital clocks, and other small electronic devices requiring numeric displays.
- Telecommunication Systems: Can be used in network devices for displaying information such as signal strength or channel numbers.
- Automotive Dashboard Displays: Suitable for displaying information like mileage, temperature, or warning signals in vehicles.
- Medical Devices: Useful in healthcare equipment for displaying numerical data like dosages, timer settings, or patient metrics.
- Retail and Point of Sale Systems: Effective in showing prices, quantities, or transaction codes in retail environments.
- Portable Electronic Devices: Ideal for handheld gadgets where space is limited but clear numeric display is required.
- Educational Equipment: Can be used in teaching tools or experimental setups requiring numeric displays.
- Home Automation Controls: Suitable for smart home devices displaying status information or settings.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
