The Engineer's Choice: Round Top Piranha LED Insights

Series No:

Weight:(g/pcs)

0.25

Dimension:(mm)

7.6 x 7.6 x 3.5

Package:

Specification:

Inquiry

Description:

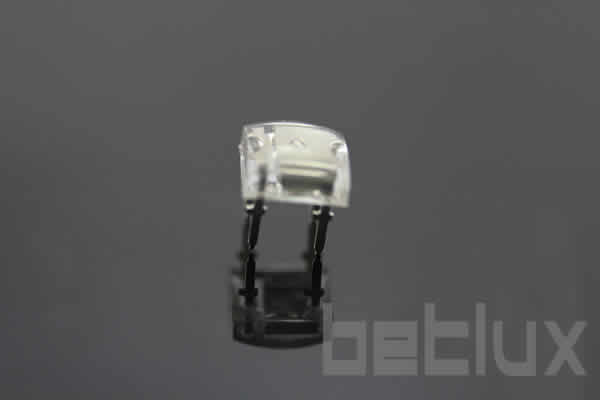

Exploring the Versatility of Round Top Piranha LEDs in Electronic Applications

In the fast-paced world of electronics, the round top Piranha LED has emerged as a key player, offering a unique blend of performance and durability. This article delves into the characteristics, applications, and benefits of round top Piranha LEDs, also known as super flux LEDs, and their significant impact on the industry. Through detailed case studies and user testimonials, we’ll showcase why these electronic parts are indispensable for manufacturers, engineers, purchasers, and administrators alike.

Introduction to Round Top Piranha LEDs

Round top Piranha LEDs, or super flux LEDs, are distinguished by their dome-shaped top and high brightness levels. These electronic parts have garnered attention for their exceptional performance in a wide range of applications. Designed for optimal light dispersion, they are a preferred choice in automotive lighting, signal lights, and decorative lighting due to their durability and efficient power consumption.

Key Features and Applications

Robust Design: The round top design facilitates a focused beam of light, making these LEDs ideal for applications requiring directed illumination, such as dashboard lights and outdoor signs.

Versatility: Thanks to their high luminosity and efficient power usage, round top Piranha LEDs are versatile enough to be used in a variety of settings, from consumer electronics to industrial equipment.

Durability: These LEDs are not only energy-efficient but also highly durable, capable of withstanding harsh conditions without significant degradation in performance.

The Advantages of Using Round Top Piranha LEDs

Opting for round top Piranha LEDs, or TH LEDs (through-hole LEDs), brings numerous benefits. Their energy efficiency leads to cost savings, while their durability ensures long-lasting performance. Moreover, their versatility allows for innovative uses in various fields, making them a go-to choice for those looking to enhance their products with reliable lighting solutions.

Energy Savings: The efficiency of round top Piranha LEDs translates into lower energy costs and a reduced environmental impact, aligning with green energy initiatives.

Long-Term Reliability: With superior design for heat dissipation, these LEDs offer extended lifespans, minimizing the need for frequent replacements.

Success Stories: How Round Top Piranha LEDs Make a Difference

Real-world applications of round top Piranha LEDs highlight their transformative potential. From enhancing the visibility and safety of automotive lighting to creating captivating displays for advertising, these LEDs have proven their worth. User testimonials reinforce their value, with many emphasizing the improvement in product performance and energy savings.

Case Studies: Whether it’s in traffic lights that withstand extreme weather conditions or in consumer electronics that require consistent, bright light, round top Piranha LEDs have demonstrated their superior performance and reliability.

User Testimonials: Engineers and purchasers alike commend the versatility and durability of these LEDs, noting their pivotal role in improving product design and operational efficiency.

Conclusion: Embracing the Future with Round Top Piranha LEDs

The round top Piranha LED stands as a testament to the advancements in LED technology, offering a blend of efficiency, durability, and versatility. As the electronics industry continues to evolve, the demand for reliable and high-performing components like these LEDs is set to grow.

For those in the field, from engineers to administrators, embracing the round top Piranha LED means investing in the future of electronic design and application. The benefits are clear: superior performance, cost savings, and the potential to drive innovation in various sectors.

Call to Action: Illuminate your projects with the unmatched quality of round top Piranha LEDs. Experience the difference in performance and reliability today.

Features

Arched Top Flux LED Design: The arched top provides a distinctive aesthetic and can offer unique light dispersion characteristics compared to flat-top or round LEDs.
Compact Size: Measuring 7.62 x 7.62 x 4.3 mm, these LEDs are small but capable of delivering strong illumination, suitable for various applications where space is limited.
Wide Viewing Angles: The design of these LEDs allows for broad viewing angles, making them effective in applications where visibility from multiple directions is important.
Ideal for Backlight and Indicator: Their wide viewing angles and bright output make them well-suited for use as backlights in displays and control panels, as well as indicators in various devices.
RoHS Compliance: Adherence to the Restriction of Hazardous Substances Directive ensures that these LEDs are manufactured without using specific hazardous materials, aligning with environmental and health safety standards.

Applications

Backlighting in Displays: Commonly used for backlighting in LCD displays, keypads, and control panels, providing uniform and effective backlighting.
Indicator Lights: Ideal for use as indicator lights in electronic devices, automotive dashboards, control panels, and machinery, where visibility from different angles is crucial.
Decorative Lighting: Suitable for decorative and ambient lighting due to their unique shape and bright light output.
Signage and Display Boards: Utilized in signs, billboards, and advertising displays for their durability and high visibility.
Consumer Electronics: Incorporated into consumer electronics as status indicators and for backlighting screens and buttons.
Automotive Lighting: Applicable in automotive lighting systems for interior and exterior applications, including dashboard illumination and signal lights.

Electrical-optical characteristics:

Article No	color	material	wavelength	apperance	v_max	luminous_min	luminous_typ	degree
BL-FL760RBGC	Ultra Bluish Green	InGaN	505	Water Clear	4.2	800	4000	160
BL-FL760RPGC	Ultra Pure Green	InGaN	525	Water Clear	4.2	1000	5000	160
BL-FL760RUBC	Ultra Blue	InGaN	470	Water Clear	4.2	800	2000	160
BL-FL760RUEC	Ultra Orange	AlGaInP	630	Water Clear	2.5	800	1500	160
BL-FL760RUGC	Ultra Green	AlGaInP	574	Water Clear	2.5	200	700	160
BL-FL760RURC	Ultra Red	AlGaAs,DDH	660	Water Clear	2.2	600	1000	160
BL-FL760RUWC	Ultra White	InGaN	-	Water Clear	4.2	1000	5000	160
BL-FL760RUYC	Ultra Yellow	AlGaInP	590	Water Clear	2.5	600	1300	160

Package configuration & Internal circuit diagram

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

More Information

Lens Color:

Code	D	T	C	W	E
Meaning	color Diffused	Color Tinted	Water Clear	Water Diffused	Orange diffused

Absolute maximum ratings (Ta=25°C)

Parameter	SR	LR	UR	UE	UY	UG	PG	BG	B	UB	UV	W	Unit
Forward Current I F	25	25	25	30	30	30	30	30	30	30	30	30	mA
Power Dissipation P d	60	60	60	65	65	75	110	110	120	120	120	120	mW
Reverse Voltage V R	5	5	5	5	5	5	5	5	5	5	5	5	V
Peak Forward Current I PF (Duty 1/10 @1KHZ)	150	150	150	150	150	150	150	100	100	100	100	100	mA
Operation Temperature T OPR	-40 to +80												°C
Storage Temperature T STG	-40 to +85												°C
Lead Soldering Temperature T SOL	Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)												°C

Related Information

Applied for:

The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:

IR Reflow Soldering (for SMD display)		Wave Soldering		Soldering Iron
Pre-Heat	150-180°C	Pre-Heat	100°C Max.	Temperature	300°C Max.
Pre-Heat Time	120sec Max.	Pre-Heat Time	60sec Max.
Peak Temperature	260°C Max.	SolderWave	260°C Max.	Soldering Time	3sec Max.(one time only)
Soldering Time	10 sec Max.	Soldering Time	5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

product.

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

in series with each LED as shown in Circuit A below.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

Select an Appropriate Power Supply:
Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.

Consider Additional Features:

Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
