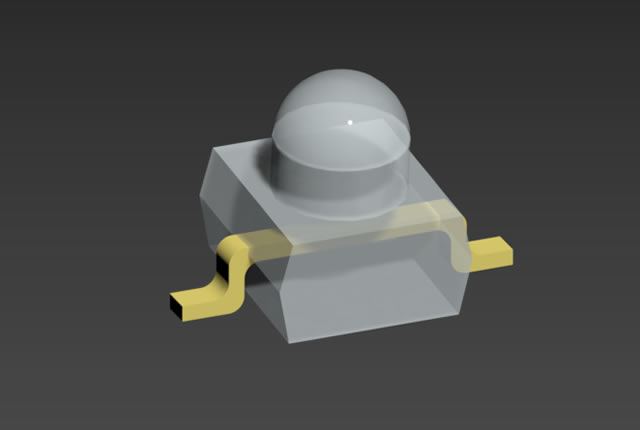

Miniature Device LED,1.8 mm Round Tower

Series No:

BL-LM18G

Weight:(g/pcs)

0.7

Dimension:(mm)

7.9 x 9.15 x 11

Package:

Specification:

download

Inquiry

Description:

“Illuminating Innovations: The Transformative Power of 1.8mm round tower LED (through hole LEDs) Miniature LEDs”

Introduction

In the cutting-edge world of electronic components, miniature LEDs, especially the 1.8 mm round tower variants, have emerged as pivotal elements in modern design and functionality. These tiny yet powerful lights are transforming the way we approach illumination and signaling in various devices. This comprehensive article will explore the features, applications, benefits, and real-world impact of 1.8mm LEDs, providing valuable insights for engineers and purchasers

and administrators in the electronics manufacturing sector. Through detailed case studies and user testimonials, we’ll uncover the diverse capabilities of these miniature device LEDs.

Features of 1.8mm Miniature LEDs

The 1.8 mm round tower LEDs stand out for their compact size, which allows for their integration into a multitude of devices where space is at a premium. Despite their diminutive stature, these LEDs pack a punch in terms of brightness and energy efficiency. They are designed for through-hole mounting, which ensures robustness in assembly and reliability in performance. Their round tower shape provides focused illumination, making them ideal for applications requiring pinpoint light accuracy.

Applications Across Industries

These miniature LEDs find extensive use in various fields. In consumer electronics, they serve as indicator lights in everything from smartphones to kitchen appliances. In the automotive industry, they are used for dashboard backlighting and control panel indicators. Medical devices also benefit from these LEDs, with their use in diagnostic equipment and handheld tools. The versatility of these LEDs extends to industrial machinery, where they are used for status indication and safety signaling.

Benefits and Advantages

One of the primary benefits of the 1.8 mm LEDs is their energy efficiency. Consuming significantly less power than traditional lighting solutions, they are an economical and environmentally friendly choice. Their small size offers design flexibility, allowing manufacturers to create sleeker, more compact devices. Furthermore, the durability of these LEDs means they have a longer lifespan, reducing the need for frequent replacements and maintenance.

Case Studies: Demonstrating Impact

A notable application was observed in a leading consumer electronics brand, which incorporated the 1.8 mm LEDs into their latest line of wearable devices. The compact size and brightness of these LEDs made them perfect for providing clear notifications and status indicators without adding bulk to the devices.

wearable devices
wearable devices

In the automotive sector, a car manufacturer integrated these LEDs into their new vehicle models’ dashboards. The LEDs provided long-lasting, reliable illumination for critical dashboard indicators, enhancing both the aesthetic appeal and functional safety of the cars.

User Testimonials

Feedback from industry professionals highlights the effectiveness of these miniature LEDs. An electronics engineer praised the 1.8 mm LEDs for their ease of integration and exceptional luminosity, noting their crucial role in developing a new line of compact, high-performance devices. A procurement officer from a medical device company emphasized the cost-effectiveness and reliability of these LEDs, which have become a standard component in their equipment designs.

Conclusion

The 1.8 mm round tower miniature LEDs represent a significant stride in electronic component innovation. For professionals in the electronics sector, utilizing these LEDs means embracing efficiency, sustainability, and advanced design. Explore the possibilities offered by these miniature powerhouses and integrate them into your next project to achieve enhanced performance and design elegance.

Features:
1.8 mm Round Tower, Miniature Device LED.
Ultra-compact design with a round tower shape.
Diameter: 1.8mm.
Efficient and focused illumination.
Commonly available in different colors.
Diffused, transparent, and water-clear lenses are available.
Low current capability
Versatile for various applications.
RoHS compliance.

Applications:

Indicator lights in miniature electronic devices.
Small-scale display backlighting.
Status indicators on circuit boards.
Decorative lighting in consumer electronics.
Wearable technology.
Portable measurement instruments.
Illumination in control panels.
Miniaturized signage.
Automotive interior lighting.
General-purpose miniature lighting applications.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram
Miniature Device LED,1.8 mm Round Tower


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
