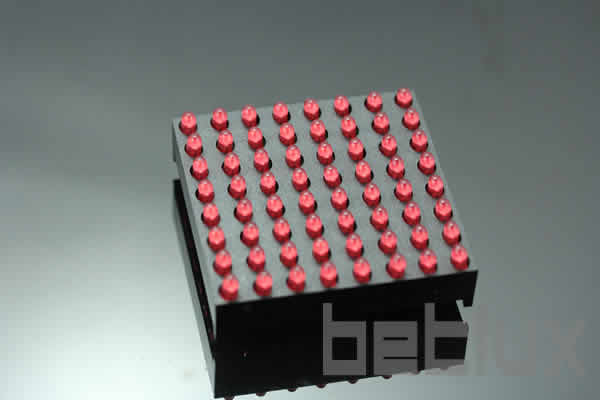

LED lamp dot matrix display 2.3 inch

Series No:

BL-ML23A882

Weight:(g/pcs)

64

Dimension:(mm)

60.96 x 60.96 x 11.2

Dot height:(mm)

2.3 inch

Dot pitch:(mm)

7.62mm

Dot size:(mm)

5.0mm

Specification:

download

Inquiry

Description:

Introduction

The LED lamp dot matrix display 2.3 inch is an innovative solution that has significantly transformed the digital display landscape. Known for its compact size and impressive clarity, this LED indicator not only serves as an essential component in various applications but also offers enhanced readability and performance. Coupled with the versatility of the LED 8×8 configuration, this device exemplifies modern display technology.

Features of the 2.3 Inch LED Lamp Dot Matrix Display

This dot matrix display stands out due to its precise engineering and functionality, making it a preferred choice for developers and manufacturers.

High Resolution and Compact Design

  • Dense Pixel Configuration: The small size does not compromise its ability to display information clearly, thanks to the high-density pixel arrangement typical of an LED 8×8 matrix.
  • Optimal Brightness: Engineered for visibility, it utilizes high-intensity LEDs that ensure clear visibility in various lighting conditions.

Versatile and Energy Efficient

  • Low Power Consumption: LEDs are known for their efficiency, and this matrix display exemplifies this with minimal energy requirements while providing maximum output.
  • Flexible Integration: This LED matrix is easily integrated into larger systems, proving ideal for applications requiring compact and effective display solutions.

Applications Across Industries

The 2.3 inch LED dot matrix display is versatile, supporting numerous applications across different sectors:

  • Consumer Electronics: From digital watches to portable radios, this display enhances user interaction with high-quality visuals.
  • Automotive: Used in dashboard displays, providing drivers with crucial information like speed and warning signals.
  • Industrial Equipment: Acts as a reliable status indicator in machinery, facilitating clear and immediate communication of operational states.

Advantages and Technological Benefits

Implementing this type of LED display matrix in devices offers several benefits:

  • Enhanced Readability: The clarity of its display makes it easy for users to read and interpret data quickly.
  • Durability: LED technology is known for its longevity, reducing the frequency of replacements.
  • Cost-Efficiency: Low power usage translates into lower operating costs over the product’s lifetime.

Real-World Impact: Case Studies and User Testimonials

Case Study 1: Consumer Electronics Enhancement

A leading electronics company integrated the 2.3 inch LED matrix into their new line of handheld gaming devices, resulting in a 30% increase in screen clarity and an overall better user experience.

Product Manager’s Feedback: “The LED dot matrix display has significantly enhanced the portability and appeal of our gaming devices, contributing to a noticeable uptick in sales.”

Case Study 2: Automotive Dashboard Upgrade

An automotive manufacturer adopted this LED matrix for their new car models’ dashboard displays, improving the aesthetic appeal and functionality.

Automotive Engineer’s Testimonial: “The clarity and robustness of the 2.3 inch dot matrix display have allowed us to deliver superior dashboard functionalities that resonate well with our customers.”

Conclusion

The 2.3 inch LED lamp dot matrix display is a game-changer in the field of electronic displays, offering a blend of efficiency, clarity, and adaptability. Its ability to enhance the visual experience across various applications makes it an invaluable asset for technology-driven businesses.

Call to Action: Unlock the potential of your products with our high-performance 2.3 inch LED dot matrix display. Enhance your applications today for better visibility and efficiency!

LED lamp dot matrix display 2.3 inch
LED lamp dot matrix display 2.3 inch

Features

  • 2.3-Inch Matrix Height (58.34mm): Offers clear visibility for displays, ideal for applications requiring a medium-sized visual impact.
  • 5mm LED Size: Prominent LED size for clear visibility and effective light output.
  • Column and Row Configuration: 8 Columns x 8 Rows: A matrix of 64 individual dots allows for a wide range of display possibilities.
  • Dimensions (Width x Height): 60.96 x 60.96mm: Efficient dimensions for effective display size while maintaining spatial economy.
  • Bi-Color and RGB Color Selected: Offers the capability to display in multiple colors, greatly enhancing the display’s versatility and visual appeal.
  • Low Current Operation: Energy-efficient design, suitable for both battery-powered and low-power electronic devices.
  • High Contrast and Light Output: Ensures excellent readability in diverse lighting conditions.
  • Compatible with ASCII and EBCDIC Code: Can display a broad range of characters and symbols, increasing utility.
  • Stackable Horizontally: Allows for the expansion of the display area by aligning multiple units side by side.
  • Column Cathode and Column Anode Available: Offers flexibility in electronic design for various circuit integrations.
  • Easy Mounting on P.C. Boards or Sockets: Facilitates straightforward installation and integration into electronic systems.
  • Categorized for Luminous Intensity: Ensures consistent brightness levels across units for uniform display quality.
  • Technically Rugged: Durable and reliable, capable of withstanding various operational environments.
  • Standard Design: Black Surface and Water Clear LED: Offers high contrast and clear visibility.
  • RoHS Compliance: Meets environmental safety standards.

Applications

  • Public Information Displays: Ideal for airports, stations, or event venues for displaying large, clear, and colorful information.
  • Interactive Art and Installations: Suitable for creative and artistic displays in public spaces, galleries, or exhibitions.
  • Advertising and Retail Signage: Effective in retail settings or for promotional purposes where dynamic and colorful displays are required.
  • Industrial Displays: Appropriate for displaying data, status messages, or alerts in industrial environments.
  • Gaming and Entertainment: Useful in gaming consoles, arcade machines, or entertainment systems for dynamic visual effects.
  • Educational Tools: Can be used in educational settings for engaging visual aids or interactive learning tools.
  • Healthcare Signage: Suitable for displaying patient information, room numbers, or alerts in hospitals and clinics with colorful visuals.
  • Safety and Emergency Signage: Appropriate for safety alerts or warning messages with high visibility.
  • Transportation Systems: Effective for displaying route numbers, schedules, or status updates in transportation networks with vibrant colors.
  • Electronic Scoreboards: Perfect for sports arenas, gyms, or event spaces requiring clear and dynamic scoring displays.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No.(Row Cathode)
Part No. (Row Anode)
Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage Max. (v)
Luminous Min.
Luminous typ.
BL-ML23A882B
BL-ML23B882B
ultra Blue
InGaN/SiC
470
4.2
100
150
BL-ML23A882D
BL-ML23B882D
Super Red
GaAlAs/DH
660
2.2
220
310
BL-ML23A882E
BL-ML23B882E
Orange
GaAsP/GaP
635
2.5
180
220
BL-ML23A882G
BL-ML23B882G
Green
GaP/GaP
570
2.5
200
250
BL-ML23A882PG
BL-ML23B882PG
Ultra Pure Green
InGaN/SiC
525
4.2
380
560
BL-ML23A882PGC
BL-ML23B882PGC
Ultra Pure Green
InGaN
525
4.5
600
BL-ML23A882S
BL-ML23B882S
Hi Red
GaAlAs/SH
660
2.2
220
280
BL-ML23A882UB
BL-ML23B882UB
ultra Blue
InGaN/SiC
470
4.2
220
270
BL-ML23A882UBC
BL-ML23B882UBC
Ultra Blue
InGaN
470
4.2
600
BL-ML23A882UE
BL-ML23B882UE
Ultra Orange
AlGaInP
630
2.5
195
255
BL-ML23A882UEC
BL-ML23B882UEC
Ultra Red
AlGaInP
630
2.5
250
BL-ML23A882UG
BL-ML23B882UG
Ultra Green
AlGaInP
574
2.5
300
380
BL-ML23A882UGC
BL-ML23B882UGC
Ultra Green
AlGaInP
574
2.5
100
BL-ML23A882UR
BL-ML23B882UR
Ultra Red
GaAlAs/DDH
660
2.2
300
450
BL-ML23A882URC
BL-ML23B882URC
Ultra Red
AlGaAs,DDH
660
2.2
500
BL-ML23A882UWC
BL-ML23B882UWC
Ultra White
InGaN
-
4.2
1000
BL-ML23A882UY
BL-ML23B882UY
Ultra Yellow
AlGaInP
590
2.5
195
255
BL-ML23A882UYC
BL-ML23B882UYC
Ultra Yellow
AlGaInP
590
2.5
250
BL-ML23A882Y
BL-ML23B882Y
Yellow
GaAsP/GaP
585
2.5
180
220
Package configuration & Internal circuit diagram
LED lamp dot matrix display 2.3 inch


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED dot matrix is widely used in LED information board indoor and semi-outdoor

Part No of LED dot matrix

More Information

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Dot Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
trainbus information boardLED screnmessage boardindustry instrument

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Scroll to Top
