Series No:
Weight:(g/pcs)
Dimension:(mm)
Dot height:(mm)
Dot pitch:(mm)
Dot size:(mm)
Specification:
Inquiry
Description:
Introduction

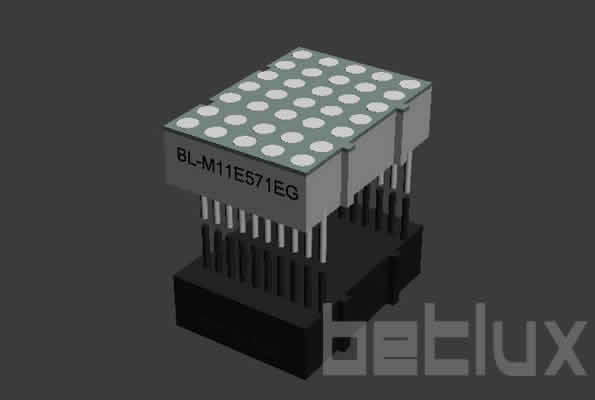

In the field of optoelectronics, the dot matrix LED display 3mm 5×7 bi-color is a significant advancement, offering versatile display solutions across a range of applications. Known for its efficiency and dual-color capabilities, this technology is integral to modern electronic devices, combining the science of light with electronic circuitry to enhance functionality and user experience.
Features of the Dot Matrix LED Display 3mm 5×7 Bi-Color
The bi-color dot matrix LED display stands out with its compact design and versatile features:
- Bi-Color Output: Each LED can switch between two colors, typically red and green, allowing for more dynamic and informative displays.
- High Resolution: The 5×7 matrix format offers a balance between space efficiency and enough granularity to display legible characters and symbols.
- Energy Efficiency: Embracing the principles of optoelectronics, these LED displays are designed to consume minimal power, making them ideal for battery-operated devices.
Applications in Various Sectors
The applications of the 3mm 5×7 bi-color dot matrix LED display are diverse:
- Consumer Electronics: From status indicators on appliances to message displays on handheld devices.
- Healthcare Equipment: Used in medical devices to alert and inform patients and healthcare providers with color-coded messages.
- Industrial Machinery: Provides clear and immediate visual feedback on operational statuses, crucial for safety and efficiency in industrial settings.
Benefits of the 3mm 5×7 Bi-Color Dot Matrix LED Display
- Versatility: The ability to display multiple colors enhances functionality without requiring additional space.
- Durability: LEDs are known for their long life span, reducing maintenance costs and downtime.
- Customizability: Engineers can program the display for various uses, making it adaptable to new innovations and designs in the optoelectronics field.
Case Studies: Real-World Implementations
Case studies from consumer electronics, automotive industries, and industrial control systems illustrate the practical benefits and technological integration of the 3mm 5×7 bi-color dot matrix LED display, highlighting its adaptability and effectiveness.
User Testimonials
Testimonials from electronics manufacturers and engineers emphasize the display’s impact on enhancing product designs and improving user interfaces, validating its widespread adoption and success in the market.
Conclusion
The 3mm 5×7 bi-color dot matrix LED display exemplifies cutting-edge optoelectronics. With its dual-color functionality and energy-efficient design, it plays a crucial role in advancing display technologies across various industries, proving to be a pivotal component in the evolution of electronic devices.
Call to Action Upgrade your electronic projects with the innovative 3mm 5×7 bi-color dot matrix LED display. Contact us to discover how this advanced optoelectronics component can revolutionize your products.
Features
- Matrix Dimensions: This matrix has a height of 30.42mm, with a display width and height of 22.75×31.80mm. Its compact size is efficient for many display requirements.
- Dot Size and Shape: The dot size is 3.00mm, circular in shape, offering clear and distinct points of light for readability and display quality.
- Column and Row Configuration: The matrix features 5 columns and 7 rows, providing a grid that supports a variety of simple display patterns.
- Low Power Operation: Designed for low current usage, it is energy-efficient, suitable for long-term operation without substantial power consumption.
- High Contrast and Brightness: The matrix ensures high contrast and light output, which makes the display easily readable in various lighting conditions.
- Code Compatibility: Compatible with ASCII and EBCDIC codes, the matrix is versatile for a range of programming and display purposes.
- Horizontal Stackability: It can be stacked horizontally, which is beneficial for creating larger or more complex display setups.
- Flexible Circuit Design Options: Available with both column cathode and anode options, providing flexibility for different electronic circuit designs.
- Ease of Mounting: The matrix is designed for easy installation on printed circuit boards or sockets, simplifying its integration into various projects.
- Luminous Intensity Consistency: LEDs are categorized for luminous intensity, ensuring uniform brightness across the display.
- Durability: Technically rugged, enhancing its reliability for various applications and operational environments.
- Aesthetic Design: Features a standard gray surface with white dots, offering a professional appearance.
- Environmental Compliance: RoHS compliance indicates that the matrix is manufactured with environmentally friendly practices.
Applications
- Compact Electronic Displays: Ideal for applications where space is limited but a clear display is needed, such as small electronic devices or wearable technology.
- Customized Indicators: Suitable for creating custom indicators or readouts in machinery, appliances, or other electronic equipment.
- Educational Tools: Can be used in educational settings for teaching basic electronics and programming, or for creating simple interactive displays.
- Interactive Art Projects: Appropriate for small-scale interactive art installations or design projects.
- DIY Electronics: An excellent choice for hobbyists and DIY enthusiasts for building custom gadgets, lighting solutions, or experimental projects.
- Informational Signage: Suitable for small-scale informational displays in public areas, offices, or retail environments.
- Prototyping: Useful for prototyping smaller electronic components or systems where display information is necessary.
Electrical-optical characteristics:
Part No.(Row Cathode) | Part No. (Row Anode) | Color | Material | Peak Wavelength (nm) | Voltage typ. (v) | Voltage Max. (v) | Luminous Min. | Luminous typ. |
|---|---|---|---|---|---|---|---|---|
BL-M11E571DUG |
BL-M11F571DUG |
Ultra Red |
AlGaInP |
660 |
2.5 |
110 |
||
BL-M11E571DUG |
BL-M11F571DUG |
Ultra Green |
AlGaInP |
574 |
2.5 |
130 |
||
BL-M11E571EG |
BL-M11F571EG |
Red |
GaAsP/GaP |
635 |
2.5 |
90 |
||
BL-M11E571EG |
BL-M11F571EG |
Green |
GaP/GaP |
570 |
2.5 |
95 |
||
BL-M11E571SG |
BL-M11F571SG |
Super Red |
AlGaInP |
660 |
2.5 |
100 |
||
BL-M11E571SG |
BL-M11F571SG |
Green |
GaP/GaP |
570 |
2.5 |
95 |
||
BL-M11E571UEUG |
BL-M11F571UEUG |
Ultra Red |
AlGaInP |
630 |
2.5 |
100 |
||
BL-M11E571UEUG |
BL-M11F571UEUG |
Ultra Green |
AlGaInP |
574 |
2.5 |
130 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED dot matrix is widely used in LED information board indoor and semi-outdoor
More Information
Reflector Surface color (1st number)/ dot Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Dot Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
