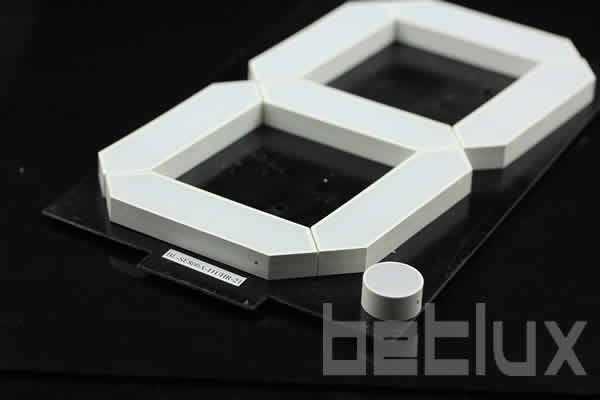

8 inch single big digit segment display

8 inch single big digit segment display

Series No:

BL-SE800A

Weight:(g/pcs)

250

Dimension:(mm)

142 x 220 x 15.3

Character Height: (inch)

8 inch

Specification:

download

Inquiry

Description:

Introduction

The 8 inch single big digit segment display is a cornerstone in the realm of electronic displays. Known for its clarity and versatility, this large seven segment display is utilized in various applications ranging from industrial to public information systems. Often referred to simply as a 7 segment display, its significance in modern electronics cannot be overstated. This article will delve into the features, applications, benefits, case studies, and user testimonials of the 8 inch single big digit segment display, with a specific focus on its relevance to electronics manufacturers, engineers, purchasers, and administrators.

Features of the 8 Inch Single Big Digit Segment Display

Superior Visibility

The 8 inch single big digit segment display offers unparalleled visibility. The substantial digit size ensures that information can be read effortlessly from a considerable distance, making it ideal for environments where clarity and quick data interpretation are essential. Whether used in industrial settings or for public displays, the large seven segment display provides exceptional readability.

Robust Design

Engineered to endure a variety of environmental conditions, the large seven segment display boasts a robust construction. It functions reliably in extreme temperatures, high humidity, and dusty environments. This durability makes it an excellent choice for both indoor and outdoor installations, as well as demanding industrial applications.

Versatile Compatibility

The 7 segment display is compatible with various driving systems, including the 7 segment driver and 7 segment common anode configurations. This compatibility allows for easy integration into different projects, enabling simple control and customization through various programming interfaces.

Applications of the 8 Inch Single Big Digit Segment Display

Industrial Environments

In industrial settings, clear and reliable displays are vital for monitoring production counts, machine statuses, and other critical information. The 8 inch large seven segment display’s high visibility ensures that operators can quickly and accurately read the displayed data, leading to improved efficiency and safety.

Public Information Displays

In public spaces such as airports, train stations, and bus terminals, the 8 inch single big digit segment display provides clear and concise information to travelers. Timetables, announcements, and other essential data are displayed prominently, aiding in smooth and efficient communication.

Large Venue Displays

The large digits of the display make it perfect for use in sports arenas, concert halls, and other large venues. Spectators can easily see scores, timings, and other important information from any seat in the venue, enhancing their overall experience. The display’s durability ensures it can withstand outdoor conditions, making it a reliable choice for such applications.

Benefits of the 8 Inch Single Big Digit Segment Display

Enhanced Readability

The primary benefit of the large seven segment display is its readability. The large digits ensure that information is easily seen, reducing the risk of errors and misunderstandings. This is particularly important in environments where quick and accurate data interpretation is crucial.

Energy Efficiency

Despite its large size, the 8 inch display is energy-efficient. The LED technology used in the display consumes less power compared to other types of displays, making it a cost-effective option for long-term use.

Versatility

The display’s compatibility with various driving systems and control interfaces means it can be used in a wide range of applications. From simple counters to complex data displays, the 8 inch single big digit segment display is versatile enough to meet diverse needs.

Case Studies

Case Study 1: Manufacturing Plant

In an automotive manufacturing plant, the 8 inch single big digit segment display was implemented to show production line counts. The high visibility of the display allowed operators to easily monitor production rates, leading to a 15% increase in efficiency. The robust design of the display ensured reliable performance despite the harsh factory environment.

Case Study 2: Train Station

A busy train station installed several 8 inch single big digit segment displays to show arrival and departure times. The clear and prominent display of information helped reduce congestion and improved the flow of passengers. Feedback from travelers indicated a high level of satisfaction with the new displays, citing the ease of reading as a significant improvement.

Case Study 3: Sports Arena

A major sports arena adopted the 8 inch large seven segment display for their new scoreboard. The large digits provided excellent visibility to all spectators, enhancing the overall experience. The display’s durability also meant it required minimal maintenance, even in outdoor conditions, making it a cost-effective choice for the venue.

User Testimonials

Testimonial 1: Industrial Engineer

“As an industrial engineer, I rely on clear and accurate displays to monitor production processes. The 8 inch single big digit segment display has been a game-changer for us. Its high visibility and reliability have significantly improved our operational efficiency.”

Testimonial 2: Public Transport Administrator

“Since installing the 8 inch large seven segment displays in our train station, we’ve seen a noticeable improvement in passenger flow. The clear and concise information display has reduced confusion and made it easier for travelers to navigate the station.”

Testimonial 3: Sports Venue Manager

“Our new scoreboard featuring the large seven segment display has received rave reviews from fans. The large, bright digits are easily visible from any seat in the stadium. It’s also proven to be very durable, requiring little maintenance despite our harsh weather conditions.”

Conclusion

The 8 inch single big digit segment display is a powerful tool for various applications, offering high visibility, durability, and versatility. Whether used in industrial settings, public information systems, or large venues, this large seven segment display provides reliable and clear information. Its compatibility with various driving systems and control interfaces also makes it an excellent choice for professionals looking to integrate a robust display into their projects.

For those in need of a reliable and highly visible display solution, the 8 inch single big digit segment display is a top choice. Its benefits are clear, and the positive feedback from users across different industries speaks volumes about its effectiveness.

Call to Action

If you are looking to enhance the visibility and efficiency of your information displays, consider the 8 inch single big digit segment display. Contact us today to learn more about how this versatile and durable display can meet your needs.

8 inch single big digit segment display
8 inch single big digit segment display

big segment display

Features

  • 8.00-Inch Digit Height (220mm): Very large digit size, ensuring visibility from a great distance.
  • Dimensions (Width x Height): 142 x 220mm: The substantial size of the display makes it ideal for applications requiring large, clear numeric visibility.
  • Single Decimal Point and a Comma: Adds versatility for displaying decimal values and punctuations, increasing its utility in various contexts.
  • Common Anode or Cathode Selection: Offers flexibility in electronic design, suitable for different system requirements.
  • Low Current Operation: Energy-efficient, beneficial for maintaining lower power consumption.
  • Excellent Character Appearance: Ensures digits are displayed crisply and clearly for easy legibility.
  • High Light Output: Bright enough to be easily readable even in well-lit conditions or from a distance.
  • Easy Mounting on PC Boards or Sockets: Designed for straightforward installation, suitable for various mounting setups.
  • IC Compatible: Can be integrated with integrated circuits, making it suitable for advanced electronic control systems.
  • Multicolor Availability: Provides options for different colors, allowing for aesthetic preferences or specific functional needs.
  • Categorized for Luminous Intensity: Guarantees consistent brightness across units for uniform display quality.
  • Technically Rugged: Durable and reliable, capable of withstanding various environmental conditions.
  • Standard Design: Gray Surface, White Segment: Offers a classic look with high contrast for ease of reading.
  • RoHS Compliance: Adheres to environmental safety standards, avoiding the use of hazardous substances.

Applications

  • Outdoor Signage: Ideal for large outdoor displays, such as scoreboards, timers, or informational signs in sports stadiums, arenas, or public spaces.
  • Public Information Displays: Suitable for use in transport stations, airports, or public squares for displaying time, temperature, or other public information.
  • Industrial Settings: Can be used in large industrial environments where visibility from a distance is necessary, such as in manufacturing plants or warehouses.
  • Advertising Displays: Effective for large-scale advertising where numeric information or counts are showcased.
  • Event Timers: Suitable for events, races, or competitions where timekeeping is displayed to a large audience.
Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No. (Cathode)
Part No. (Anode)
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ.(v)
Voltage max. (v)
Luminous min
Luminous typ
BL-SE800A-11B
BL-SE800B-11B
ultra Blue
InGaN/SiC
470
4.2
85
185
BL-SE800A-11D
BL-SE800B-11D
Super Red
GaAlAs/DH
660
2.2
80
210
BL-SE800A-11E
BL-SE800B-11E
Orange
GaAsP/GaP
635
2.5
110
180
BL-SE800A-11G
BL-SE800B-11G
Green
GaP/GaP
570
2.5
80
200
BL-SE800A-11H
BL-SE800B-11H
Red
GaP/GaP
700
2.6
BL-SE800A-11PG
BL-SE800B-11PG
Ultra Pure Green
InGaN/SiC
525
4.2
100
260
BL-SE800A-11S
BL-SE800B-11S
Hi Red
GaAlAs/SH
660
2.2
80
180
BL-SE800A-11UB
BL-SE800B-11UB
ultra Blue
InGaN/SiC
470
4.2
95
200
BL-SE800A-11UE
BL-SE800B-11UE
Ultra Orange
AlGaInP
630
2.5
110
190
BL-SE800A-11UG
BL-SE800B-11UG
Ultra Green
AlGaInP
574
2.5
80
210
BL-SE800A-11UR
BL-SE800B-11UR
Ultra Red
GaAlAs/DDH
660
2.2
90
220
BL-SE800A-11UY
BL-SE800B-11UY
Ultra Yellow
AlGaInP
590
2.5
110
190
BL-SE800A-11W
BL-SE800B-11W
Ultra White
InGaN
-
4.2
200
BL-SE800A-11Y
BL-SE800B-11Y
Yellow
GaAsP/GaP
585
2.5
80
150
Package configuration & Internal circuit diagram
8 inch single big digit segment display


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display

More information

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
dvd player radio train instrument refrigerator

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Scroll to Top
